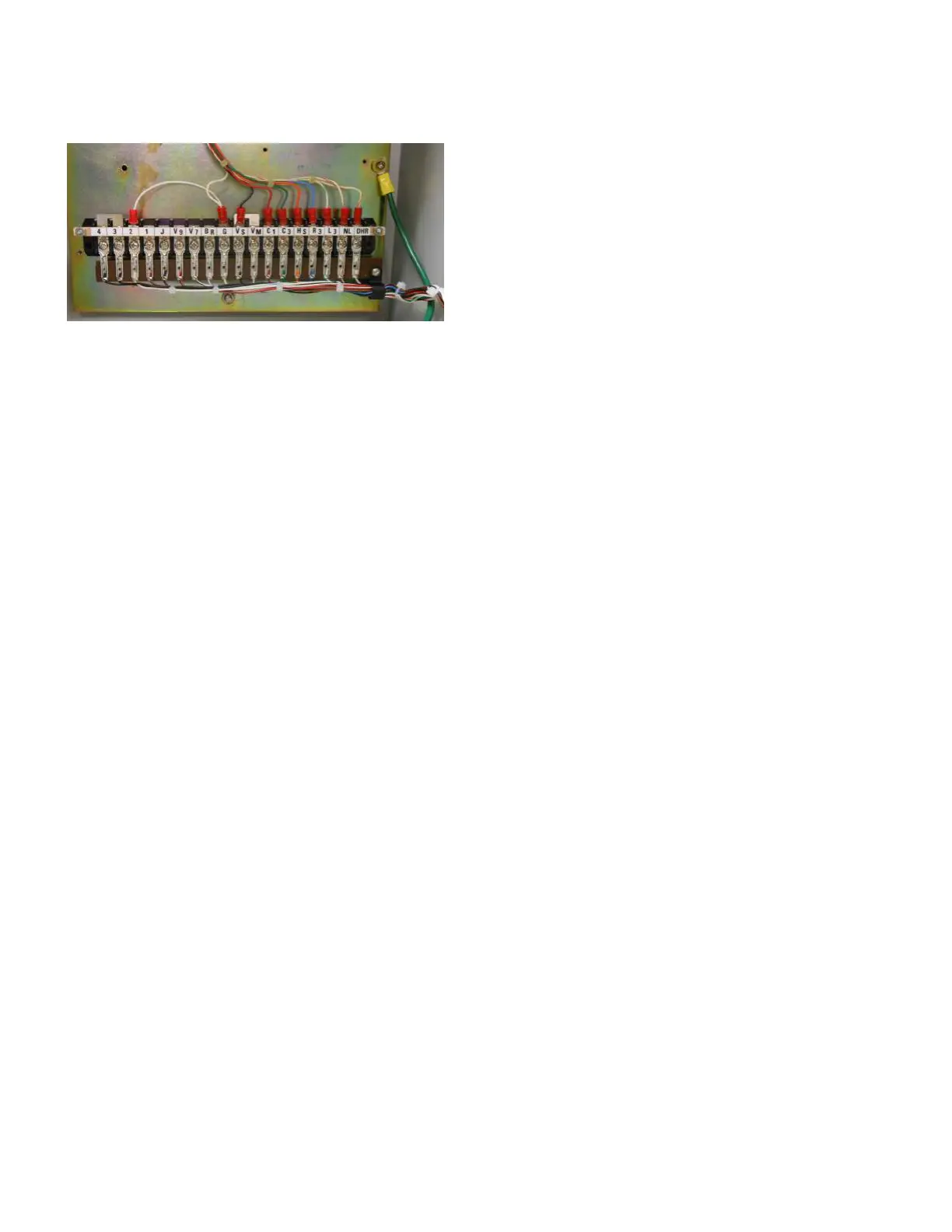

Figure 15. Fanning strip installed into terminal board
13. Secure the CL-7 control panel to the latch tab using the
latching screw.
14. Complete the control programming and testing as
required. Refer to document MN225003EN, CL-7
Control Installation, Operation, and Maintenance
Instructions for proper control configuration and start
up procedures.
6
CL-7 Control Panel Retrofit
InstallatIon InstructIons MN225018EN April 2018
