162
© 2018 Eaton Cummins Automated Transmission Technologies. All rights reserved
2019.04.4
Output Speed Sensor Installation | Installation TRSM0950

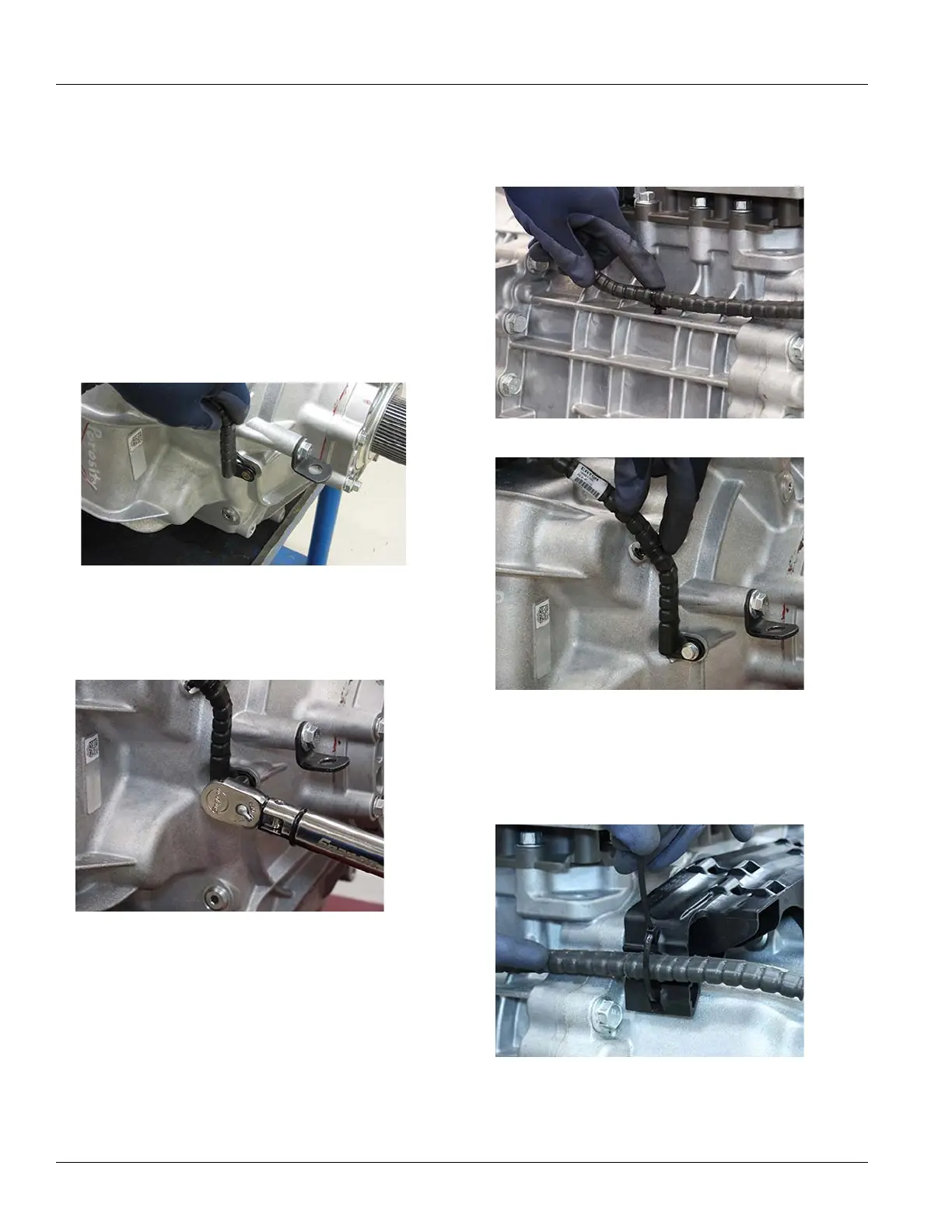

Procedure – Installation
1. Clean the sensor bore.
NOTICE: Do not use abrasive scrapers or powered
tools to clean sealing surface.
2. Apply a light coat of transmission oil to the sensor
O-ring.
3. Install the Output Speed Sensor into the bore.
Note: The Sensor may need to be twisted and pushed
into the bore.
4. Install the Output Speed Sensor 10 mm cap screw and
torque to 8.8-10.4 Nm (6-8 lb-ft).
5. Press the 2 harness press-in retainers into the Main
Housing and the bracket on the rear housing.
6. Secure the Output Speed Sensor Harness to the Har-
ness Bracket with a tie strap.
