3type vsa12, vsa12b, vsa16, vsa20, and vsa20a operation and installation instructions MN280063EN May 2017
Dimensions and weights
Item
Dimensions per model
VSA 12/12B/16 /20 VSA20A
A 1219 (48) 1270 (50)
B 305 (12) 356 (14)
C 622 (24.5) 826 (32.5)
D 76 (3.25) 77 (3.5)
E 330 (13) 330 (13)
F 1549 (61) 1600 (63)
G 572 (22.5) 775 (30.5)
H 1416 (55.75) 1594 (62.75)
I 1130 (44.5) 1308 (51.5)
J 260 (10.25) 298 (11.75)
K 1080 (42.5) 1257 (49.5)
L 413 (16.25) 514 (20.25)
M 159 (6.25) 260 (10.25)
N 108 (4.25) 210 (8.25)
All dimensions are mm (inches).
Dimensions shown are approximate.

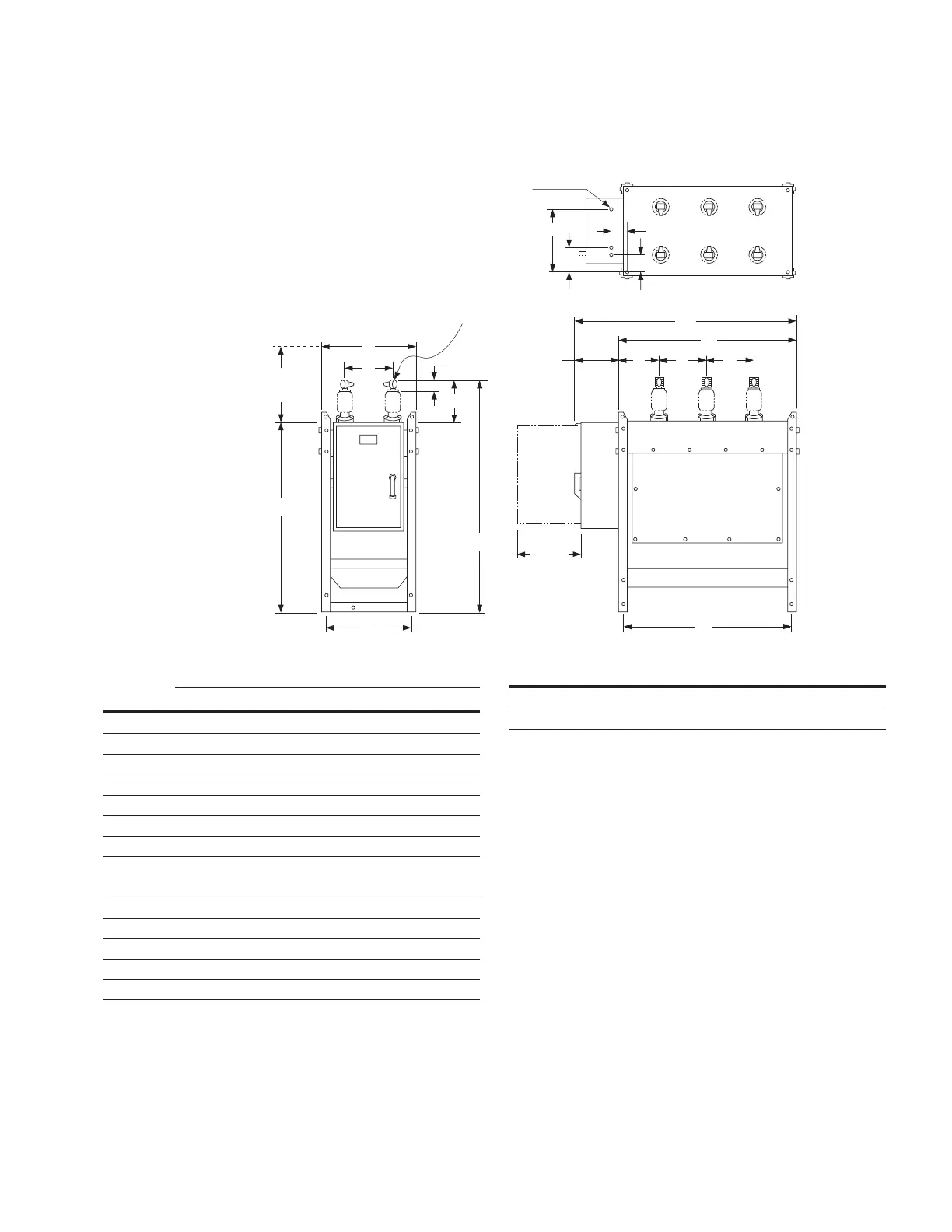

Figure 1. Outline dimensions and weights.
Model kg (lbs)
VSA 12/12B/16/20 238 (525)
VSA20A 336 (740)
clearance
required
for bushing
removal
A
F
E
D
B
C
375
(14.75)
(door open)
K
H
I
BBJ
G
Knockouts (3) for
25 mm (1") conduit fitting
in bottom of operating cabinet
L
102 (4)
N
M
VSA12/12B/16/20
Universal Clamp-type Terminal,
accepts 4/0 to 1000 MCM cable
VSA20A
1-1/4 - 12 UNF-2A Threaded Stud Terminal
286
(11.25)
660
(26)
