EATON IB500013EN Installation instructions
Installation Instructions – Caretaker
Wall/Pole Mount
Tools Required
1/2” Socket wrench, 7/16” Socket wrench, drill, 3/16” drill
bit.
1. Use a 1/2” socket wrench to remove wall/pole mount
bracket from fixture and set aside two fixture mounting
bolts and wire shield. Discard pipe clamp bracket.
(Figure 1.)
2. Determine mounting surface and pre-drill lag bolt
locations.

Wall/Square Pole Mount: Place bracket (wall/sq pole
mount) face against mounting surface with bracket
arrow pointing up. (Figure 2.)

Wood Pole Mount: Place bracket (wood pole mount)
face against pole with bracket arrow pointing up.
(Figure 3.)
3. Using 7/16” socket drive four lag bolts (provided) where
indicated. Tighten bolts to approx. 6-8 ft-lbs.
ote:N Ensure provided lag screws are compatible with
anchor material and anchor material is capable of
withstanding required torque.
ote:N Do not use holes labeled “luminaire” to fasten
bracket to mounting surface.
4. With supply wires pulled through 1/2” conduit hole
6” to 8”, slide fixture down over bracket and ensure
support tab is correctly positioned inside the housing
wall cavity.
5. Using 1/2” socket, install wire shield as shown with
the two fixture mounting bolts up through the wall/pole
bracket and into luminaire. If connection to conduit hole
in the bottom of mounting bracket is preferred, remove
the knockout tab on the wire shield. Tighten to 6-8
ft-lbs. (Figure 4 & Figure 5.)

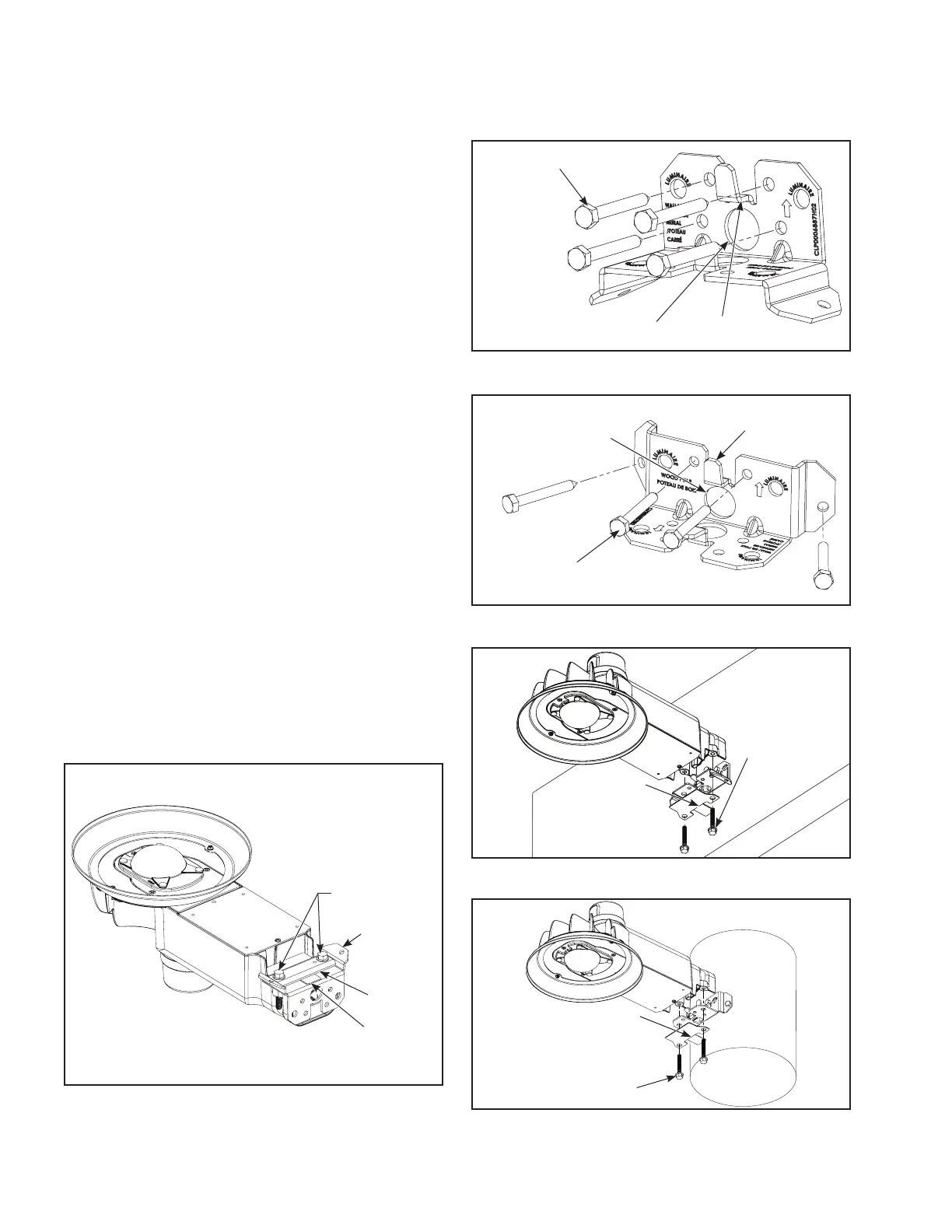

Figure 1.
Figure 2.
Figure 3.
Figure 4.
Figure 5.
Support Tab
(2) Mounting Bolts
Support Tab
1/2” Conduit Hole
Universal
Bracket
1/2” Conduit Hole
(4) 1/4” X 2”
Long Lag Bolts
(2) Mounting
Bolts
(2) Mounting Bolts
Knockout In Wire
Shield For Conduit
Connection
Knockout In Wire Shield For
Conduit Connection
(4) 1/4” X 2”
Long Lag Bolts
Pipe Clamp
Wire Shield
