MWS IB519111EN Installation instructions

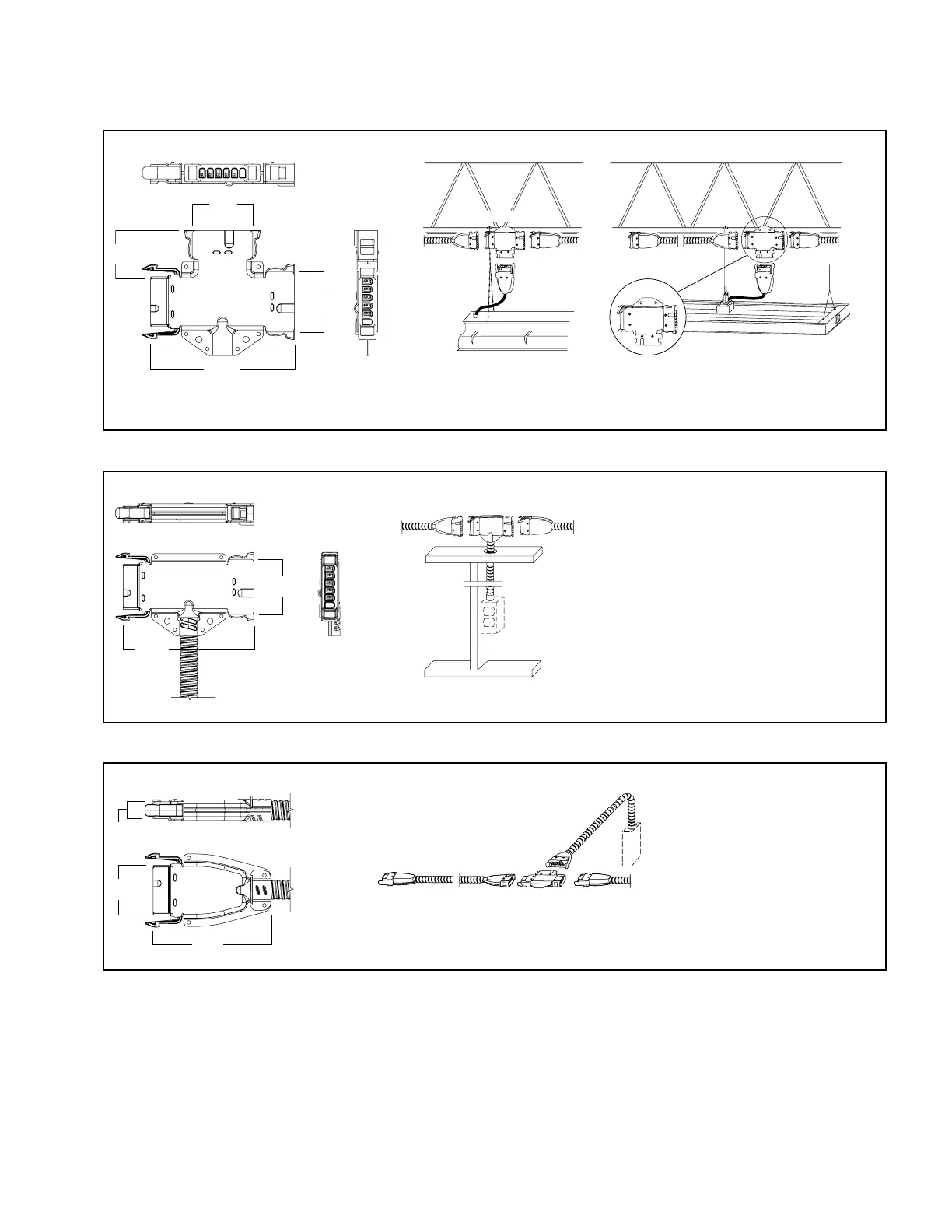

Installation Instructions – MWS 0-10V Dimming
Circuit T
System View (not to scale)Dimensional and Mounting Details
Circuit T (CT)
Feeds power through and taps desired circuit to other fixtures.
Typical MWS Wiring System Application shown utilizing Circuit T (CT).
T Cable
System View (not to scale)Dimensional and Mounting Details
T Cable (TC)
Consult MWS Installation, Application and Specification Manual for
additional comprehensive system information.
Drop Cable
System View (not to scale)Dimensional and Mounting Details
Drop Cable (DC)
Supplies power to out of system units. (Fixtures, J-boxes, etc.).
Typical MWS Wiring System Application shown utilizing Drop Cable (DC).
Front
Side
Extender Cable Extender CableT Cable
To p
Side
Drop Cable
Extender Cable
Extender Cable
Junction Box
or any Out of
System Unit
supplied by
others.
Splitter or
Circuit T
To p
To p
Right
2-1/4”
[57mm]
2-1/4”
[57mm]
2-1/4”
[57mm]
5-5/16”
[136mm]
5-5/16”
[136mm]
5/8”
[16mm]
1-7/8”
[47mm]
4-3/8”
[112mm]
1-13/16”
[45mm]
Circuit T
Extender Cable
Extender Cable
Drop SO Cord Drop SO Cord
