1 DA1 device series
1.5 Description
24 DA1 Variable Frequency Drives 11/16 MN04020005Z-EN www.eaton.com
1.5.2 Degree of protection IP20 (FS8)
The following drawing serves as an example showing the designations used
for the elements in DA1 variable frequency drives with a frame size of FS8
and an IP20 degree of protection.

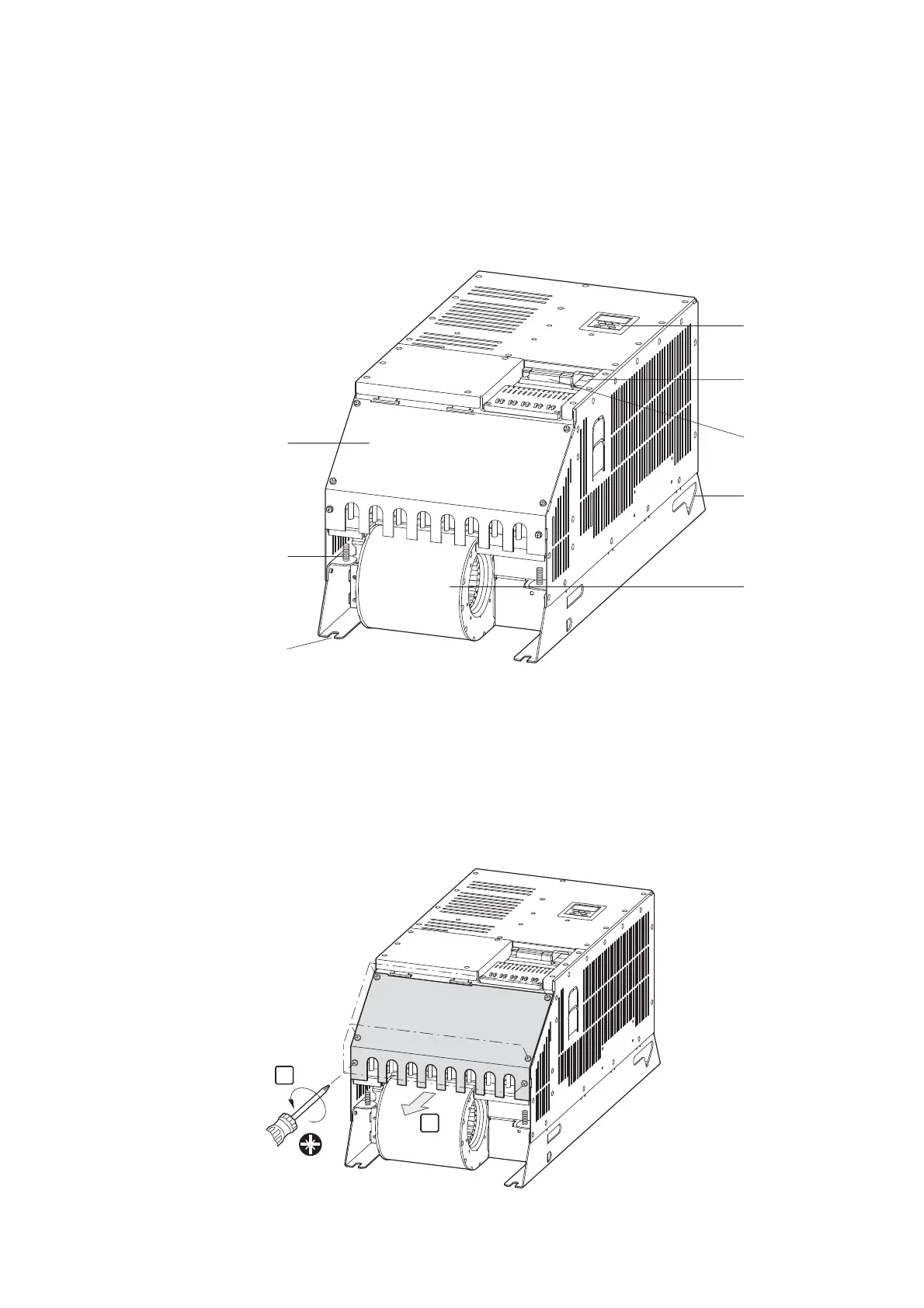

Figure 10:DA1 designations (FS8, IP20)
a Operating unit with 5 control buttons and OLED display
b Slot for fieldbus connection or expansion module
c Control signal terminals and relay terminals (plug-in)
d Eyebolts
e Device fan
f Fixing holes
g PE terminal bolt
h Enclosure cover for the connection terminals in the power section
The info cards are located at the back of the enclosure cover.
Figure 11:Info cards (back of enclosure cover )
2
1
PZ 2
