11 Annex
11.7 External keypad
188 DC1 variable frequency drive 12/13 MN04020003Z-EN www.eaton.com
11.7 External keypad
11.7.1 DX-KEY-…

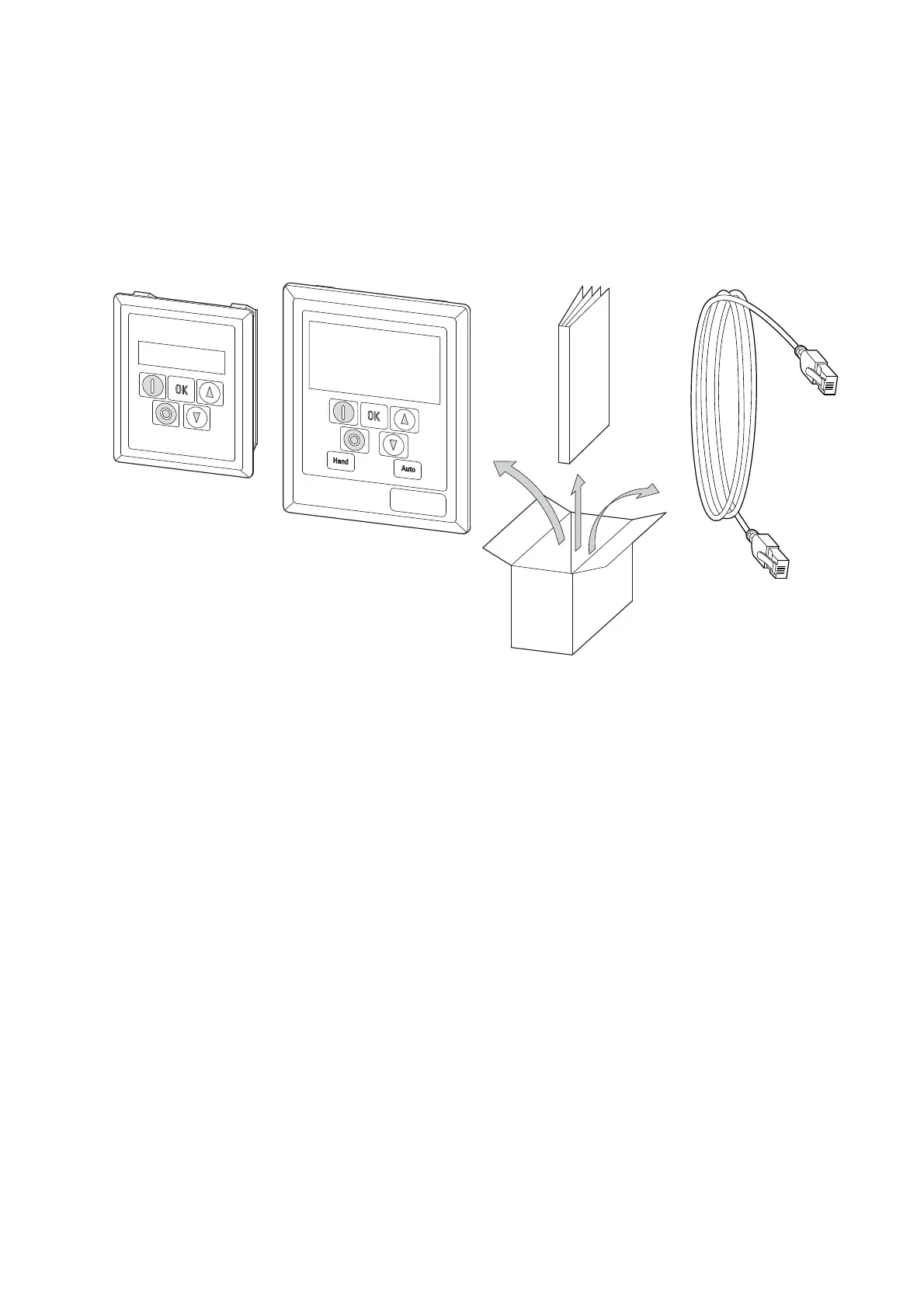

Figure 98: Equipment supplied with DX-KEY-…
DX-KEY-LED or DX-KEY-OLED external keypad
Instructional leaflet
RJ45 cable (3 m)
DX-KEY-… keypads can be used to externally control the variable frequency
drive from a distance of up to 100 m. They are designed for installation on a
control panel door, meaning that an IP54 degree of protection can be
achieved when they are installed.
A network with 63 DC1 variable frequency drives can be controlled by a
maximum of two keypads.
DX-KEY-LED DX-KEY-OLED l ∼ 3 m (l ∼ 9.84 ft)
IL
￫
The equipment supplied with the DC1 variable frequency drive
does not include an external DX-KEY-… keypad.
