3 Installation
3.5 EMC installat ion
62 DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com
Connection example

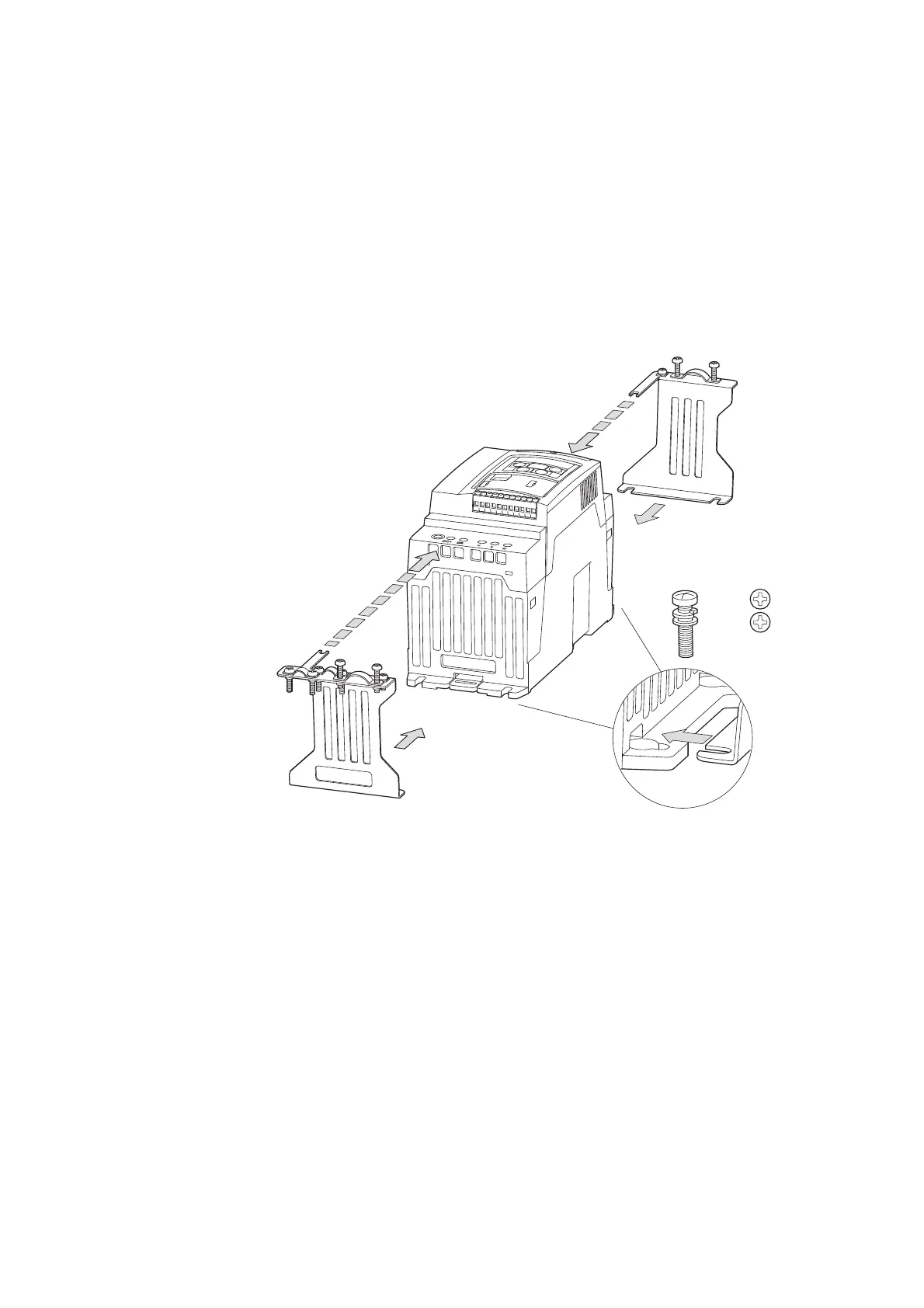

Figure 36: EMC cable brackets (example: FS2 frame size)
￫
DX-EMC-MNT-… EMC cable brackets are sold as individual
units. There are different brackets for each DC1-S… variable
frequency drive size (FS1, FS2).
The gland plates and their fixing screws are included in the
equipment supplied with the cable brackets.
1.3 Nm
(11.5 lb-in)
FS1, FS2: = 4 x M4
FS3: = 4 x M5
DX-EMC-MNT ... N
DX-EMC-MNT ... M
