Table 9-2: Analog Output Scaling

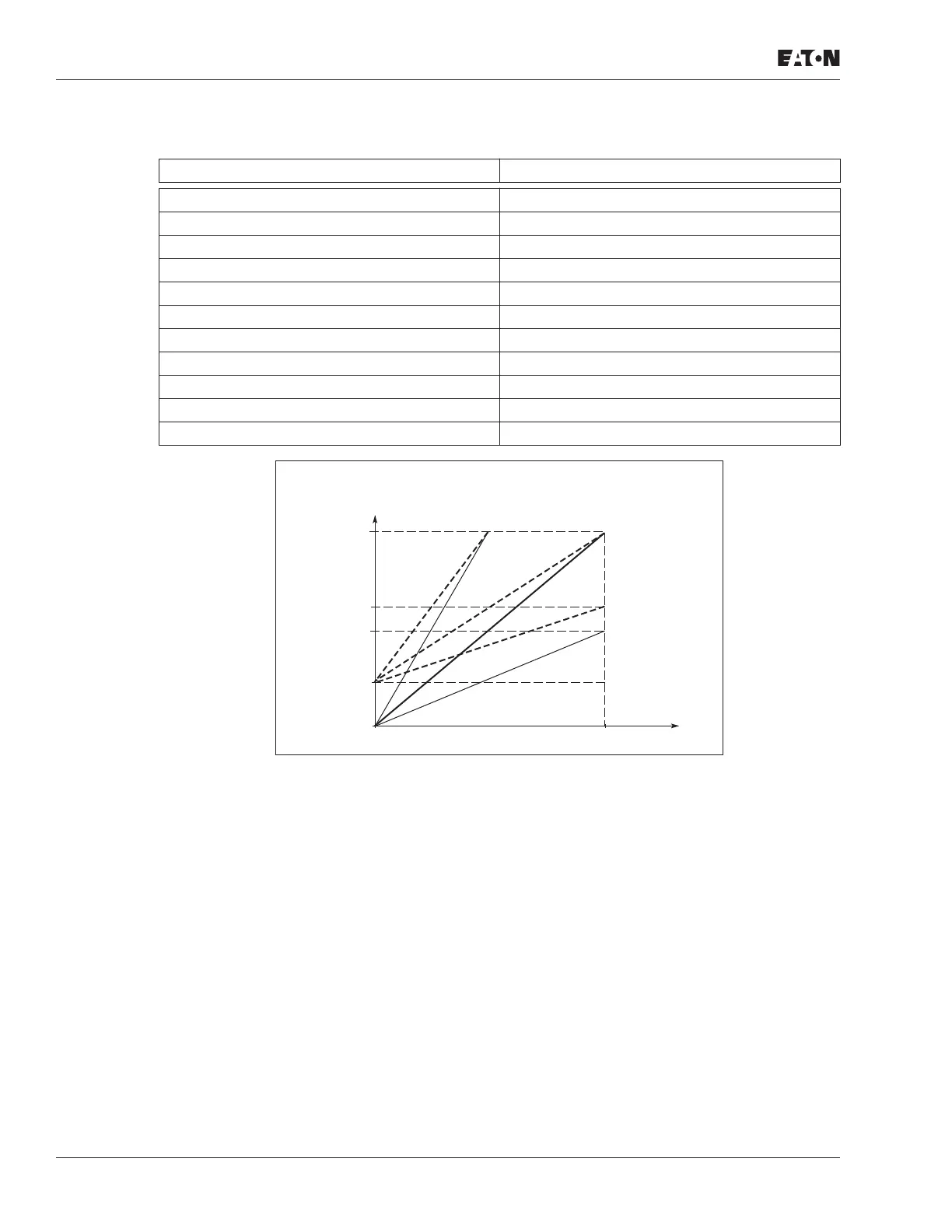

Figure 9-7: Analog Output Scaling
Signal Max. value of the signal
Output frequency 100% x f
max
Motor speed 100% x Motor nom. speed
Output current 100% x I
nMotor
Motor torque 100% x T
nMotor
Motor power 100% x P
nMotor
Motor voltage 100% x V
nmotor
DC-link voltage 1000 V
PI-ref. value 100% x ref. value max.
PI act. value 1 100% x actual value max.
PI error value 100% x error value max.
PI output 100% x output max.
2.3.10
2.3.11
Expander board analog output 1 function
Expander board analog output 2 function
ID472
ID479
These parameters select the desired functions for the expander board analog output
signals. See par. 2.1.16 for the parameter values.
Analog
Output
Current
20 mA
12 mA
10 mA
ID310 = 1
4 mA
ID310 = 0
0 mA
0 0.5 1.0
ID311 =
50%
Max. Value
of Signal
Selected
by ID307
ID311 = 200%
ID311 =
100%
