VCS/VMS Combination Cylinder Disassembly and Assembly | Service Procedures TRSM0940

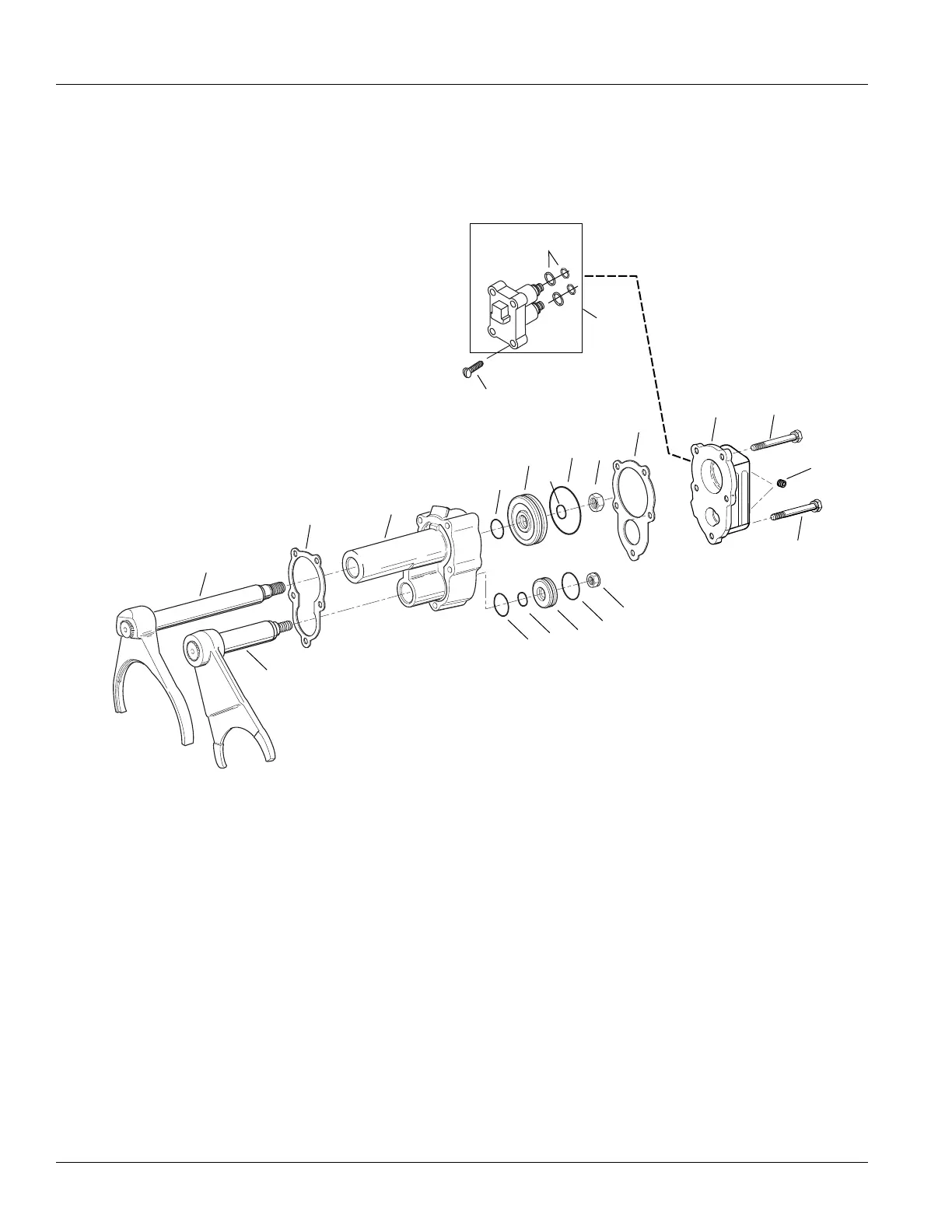

Component Identification
1. Yoke Assembly
2. Yoke Assembly
3. Cylinder
4. Gasket
5. O-Ring
6. Piston
7. O-Ring
8. O-Ring
9. Nut
10. O-Ring
11. Piston
12. O-Ring
13. Nut
14. Combination Cylinder Cover
15. O-Ring
16. Hex Screw
17. Hex Screw
18. Cylinder Cover Gasket
19. Pipe Plug
20. Range/Splitter Valve
21. Hex Flange Head Screw
22. O-Ring
1
2
3
4
5
6
7
9
8
14
16
10
15
11
12
13
21
20
22
17
18
19
