Oil Pump and Lube Tube Installation | Service Procedures TRSM0940

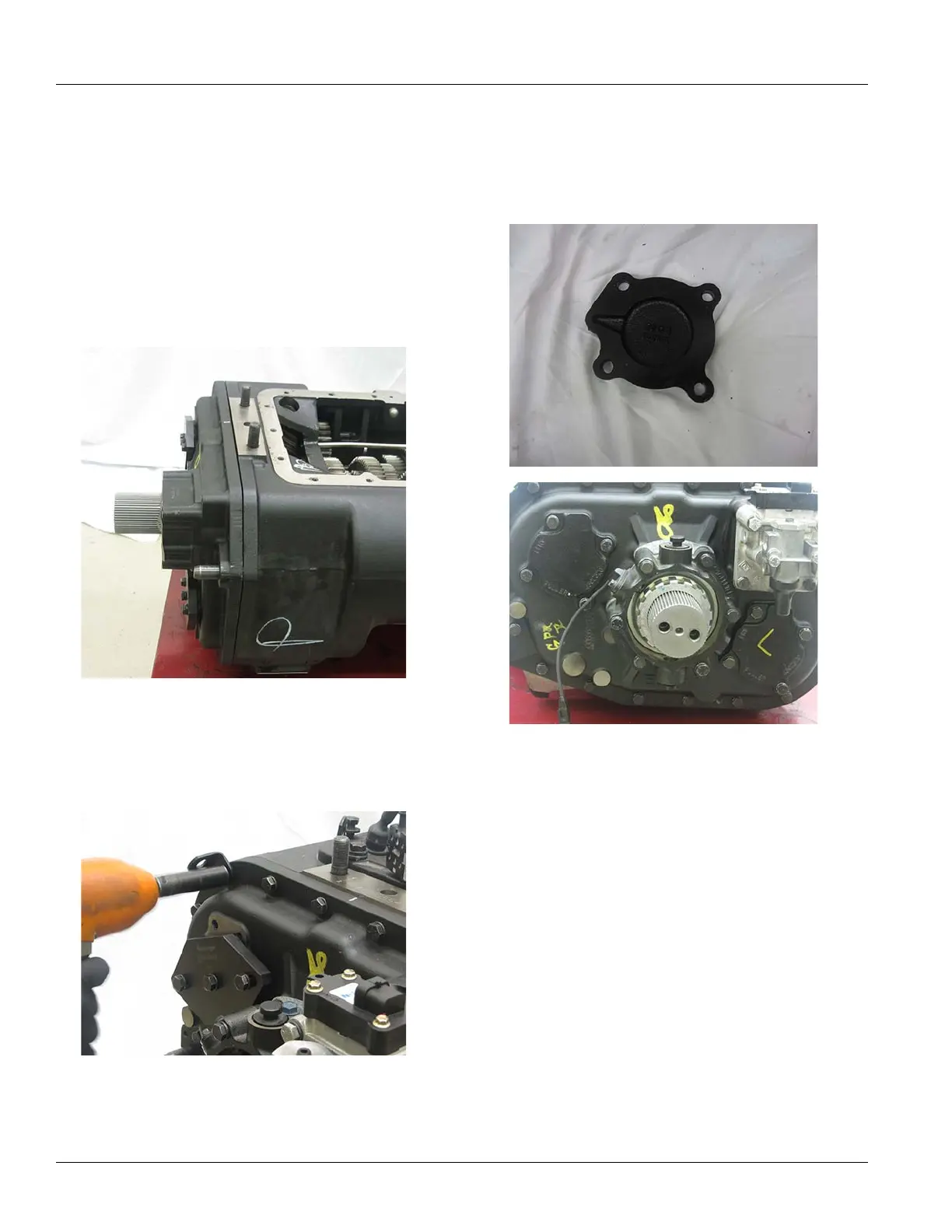

4. Once the Auxiliary Case is pushed as far into the Trans-
mission Main Case as possible, remove the Auxiliary
Section Lifting Bracket.
Loosen the Auxiliary Counter
Shaft Support Strap cap screws and fully seat the Aux-
iliary Case to the Transmission Main Case.
Note: Fully
seating the Auxiliary Section to the Trans-
mission Main Case should take light force; do not draw
it in with bo
lts. If the Auxiliary Section will not come
flush with the Transmission Main Case, a timing issue
with the Auxiliary Section gearing may be the cause.
5. Install
the 19 cap screws that fasten the Auxiliary Sec-
tion to the Transmission Main Case. Torque bolts to
35–
45 lb-ft.
6. In
stall required shim into bearing bore, shimming
instructions will be included with the shim kit. Install
new gasket between the cover and the Auxiliary Case.
Torque cap screws to 30–35 lb-ft.
