TRSM0940 Appendix | Torque Specifications

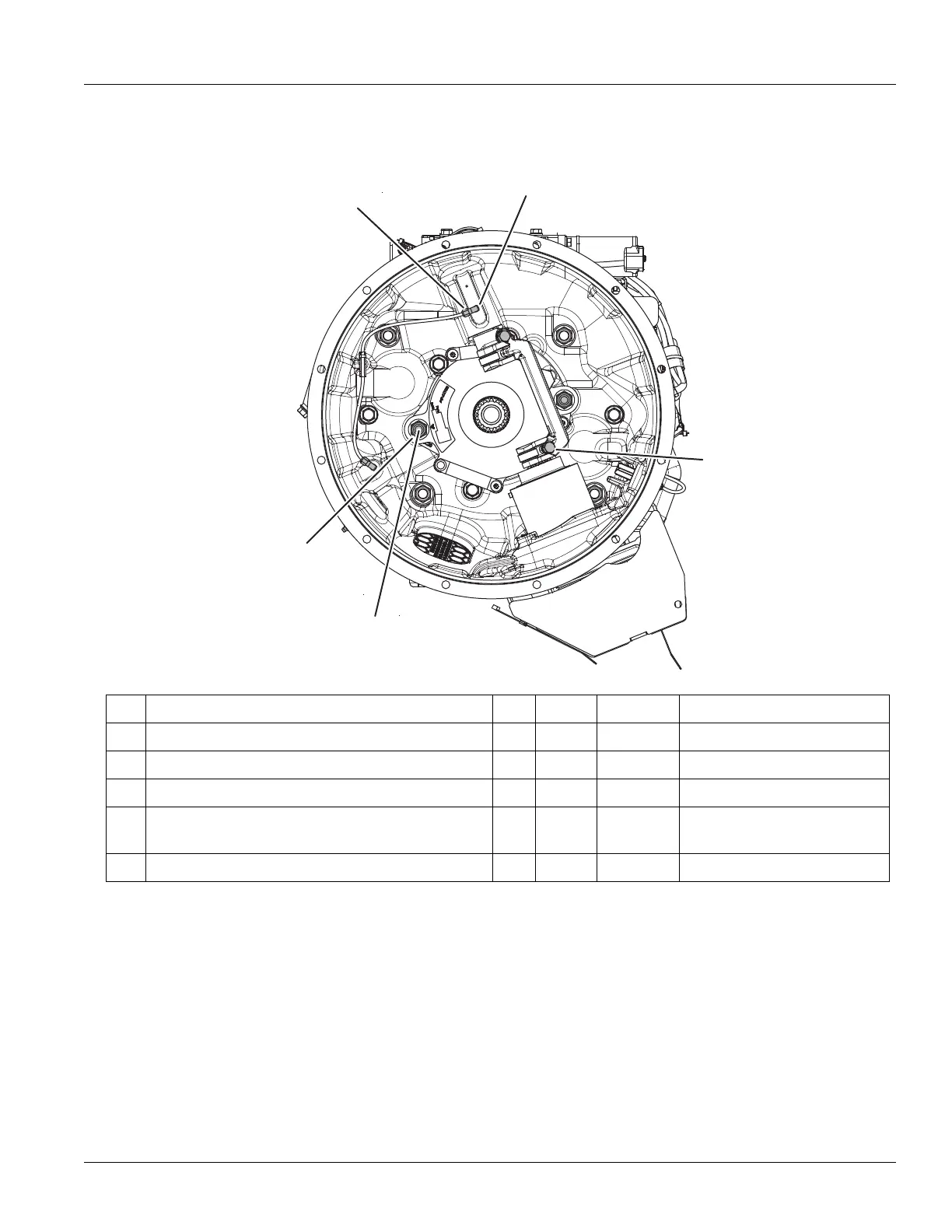

Torque Specifications
Description Qty. Size TPI Torque
1. Grease Hose Compression Nuts 2 3–5 lb-ft (0.34–0.56 N•m)
2. Grease Hose Elbow Fittings 2 0.25" 18 NPTF 84–120 lb-ft (9.5–13.6 N•m)
3. LCIB Nuts 2 0.625" 18 140–150 lb-ft (190–203 N•m)
4. LCIB Studs 2 0.625" 18 UNC 60 lb-ft (81 N•m)
Drive studs until bottomed
5. Release Yoke Pinch Bolts 2 0.4375" 14 35–45 lb-ft (47–61 N•m)
3
4
5
1
2
