TRSM0940 Service Procedures | Oil Pump and Lube Tube Installation

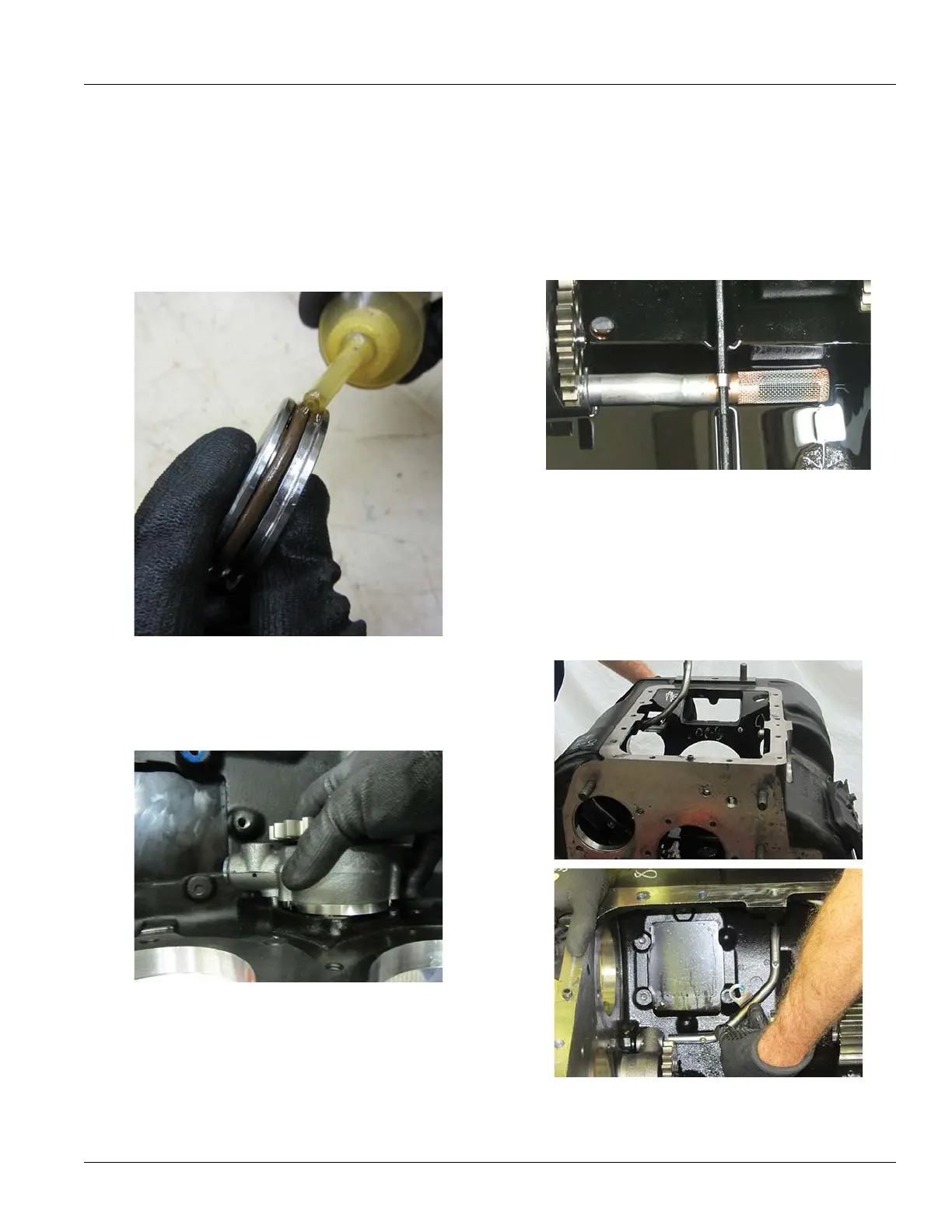

Oil Pump Installation
1. Clean any debris from the Transmission Main Case
before assembly.
2. Apply oil
or assembly lube to the O-ring on the Oil
Pump Cover. Install into the front of the Transmission
Main Case.
3. Install the Oil
Pump into the Transmission Main Case;
torque bolts to 8–12 lb-ft.
Lubrication Tubes Installation
1. Install the Suction Strainer into the Transmission Main
Case, push the tube into the Oil Pump until the tab is
flush against the Oil Pump. After the Suction Strainer
has been installed, secure the strainer by pushing
down the tube lock.
2. Install
the Main Feed Tube into the Transmission Main
Case.
Note: The tub
e needs to be rotated through the Shift
Bar Housing opening while going through the interme-
diate wall, then rotated into place to line
up with the Oil
Pump.
