6. Hanging the Cabinet
a. Place a rubber washer (D) on the bracket's (A) lower arm. Center it on the appropriate slot.
b. Position the cabinet between the bracket arms.
c. Hold the cabinet in position and insert the screw (C) with its lock washer (E) and flat washer (F) through
the bracket's bottom slot and into the threaded hole in the top hat spanning plate (B) and hand tighten.
c. Align the appropriate slot in the bracket’s top arm to the cabinet's 3/8-16 threaded hole.
d. Position a rubber washer (D) between the slot in the bracket’s (A) top arm and the cabinet’s top 3/8-16
threaded hole.
e. Hold the cabinet in position and insert the screw (C) with its lock washer (E) and flat washer (F) through the
bracket's slot and into the cabinet's top threaded hole and hand tighten.
f. Position cabinet and tighten both screws (C) with a 5/16 Allen wrench.

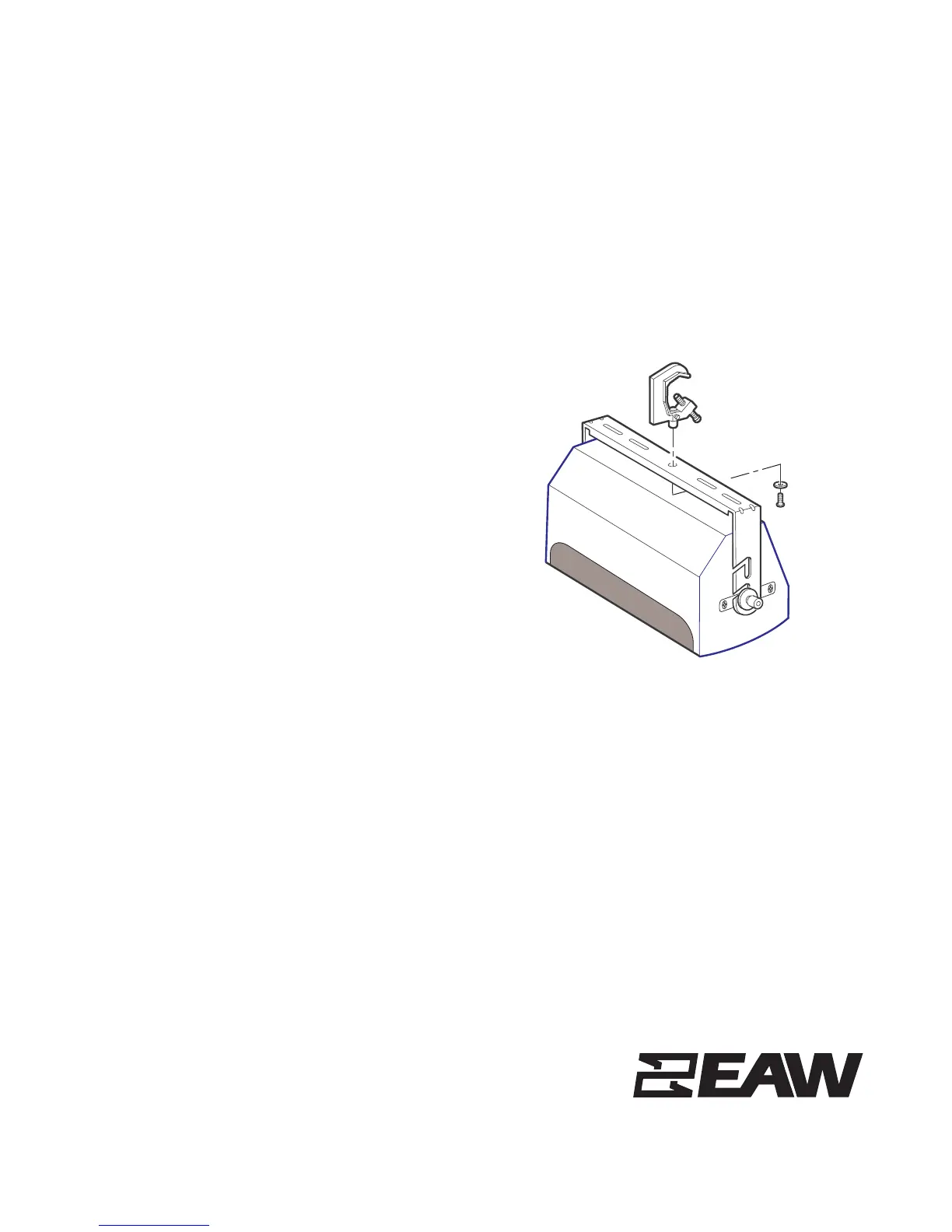

7. Pipe Clamp Installation
A user-supplied, heavy duty pipe clamp with
1/2 inch instrument yoke attachment bolt may
be affixed (Altman 510-HD or similar). Assemble
the pipe clamp to the bracket (A) as shown.
If you have questions about the JFX100 bracket installation please contact the EAW Application Support Group:
Tel 800-992-5013 (USA only)
Tel 508-234-6158
Fax 508-234-8251
E-mail asg@eaw.com
