SPECIFICATIONS MK2126e

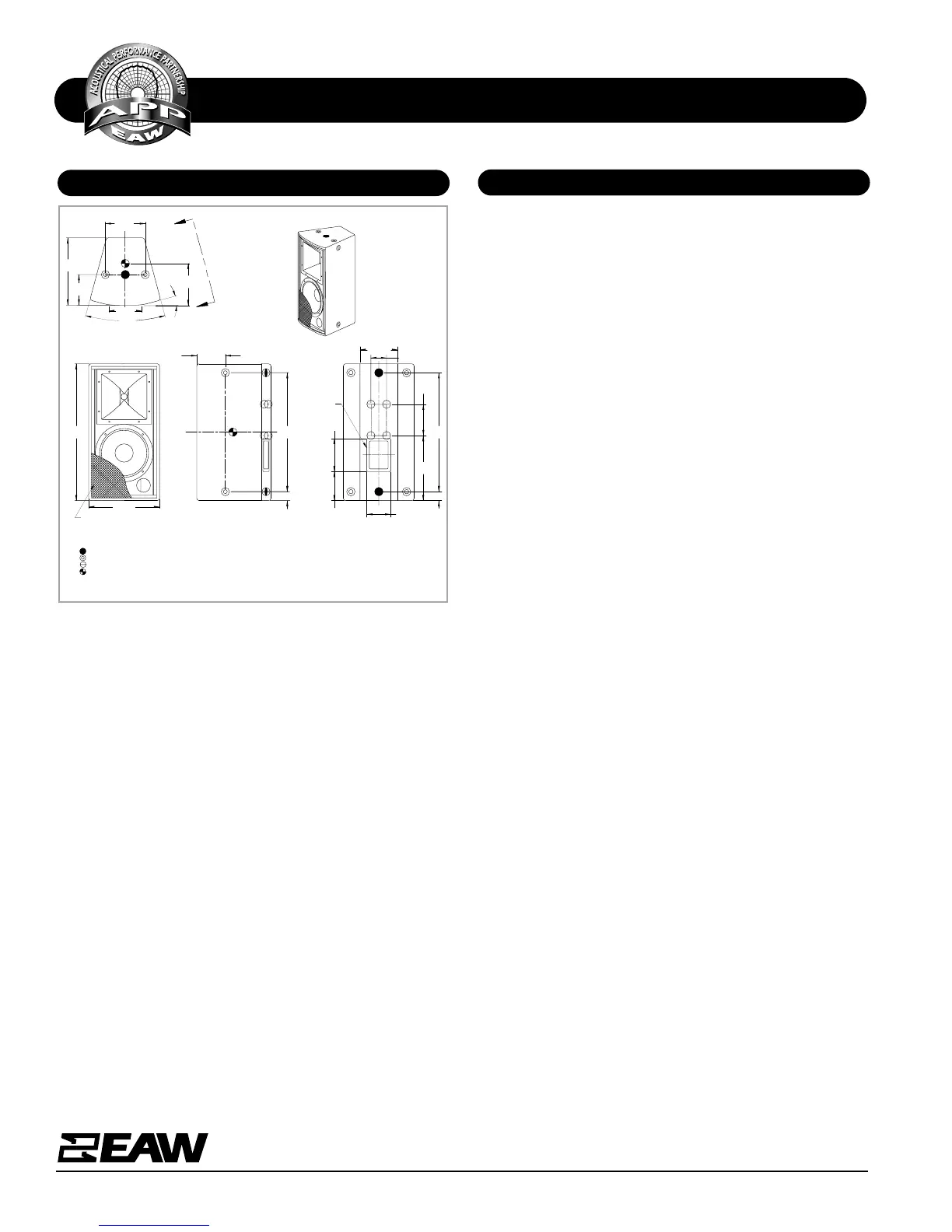

DIMENSIONAL DRAWING
A & E SPECIFICATIONS
One Main Street, Whitinsville, MA 01588 508 234 6158 Toll Free 800 992 5013 FAX 508 234 8251 info@eaw.com www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. MK2126e/0002723/2 pp April 2002 Printed in USA
The 2-way full-range loudspeaker shall incorporate a 12-in LF
transducer and a 1.4-in exit/1.75-in diaphragm HF compres-
sion driver.
The LF transducer shall be mounted in a vented enclosure
tuned for optimum low frequency response. The HF driver shall
be loaded on a rotatable constant directivity horn with a
nominal beamwidth of 120° (h) x 60° (v). An internal passive
filter network shall provide acoustical crossover and system
equalization.
System frequency response shall vary no more than ±3 dB
from 70 Hz to 18 kHz measured on axis. The loudspeaker shall
produce a sound pressure level (SPL) of 97 dB SPL on axis at
1 meter with a power input of 1 watt, and shall be capable of
producing a peak output of 129 dB SPL on axis at 1 meter. It
shall handle 400 watts of amplifier power (AES Standard) and
shall have a nominal impedance of 8 ohms.
The loudspeaker enclosure shall be trapezoidal in shape. It
shall be constructed of exterior grade Baltic birch plywood
and employ extensive internal bracing. It shall be finished in
wear-resistant textured black paint. Input connectors shall be
a 2-terminal barrier strip. A total of twelve 3/8”-16 thread-
ed mounting points shall be provided. Four addtional mount-
ing points for use with an Omnimount Series 300 or similar
bracket shall also be provided. The front of the loudspeaker
shall be covered with a powder coated perforated steel grille.
The 2-way full-range loudspeaker shall be the EAW model
MK2126e.
1. SYMBOL INDICATES MOUNTING POINT, 3/8-16 THREADED HOLE (NUT PLATE).
2. SYMBOL INDICATES MOUNTING POINT, 3/8-16 THREADED HOLE (PI ANGLE).
3. SYMBOL INDICATES MOUNTING POINT, 5/16-18 T-NUT FOR OMNIMOUNT SERIES 300.
4. SYMBOL INDICATES CENTER OF BALANCE.
5. WEIGHT APPROX. 60 LBS.
6. SHIPPING WEIGHT APPROX. 70 LBS.
