SPECIFICATIONS MK5164e

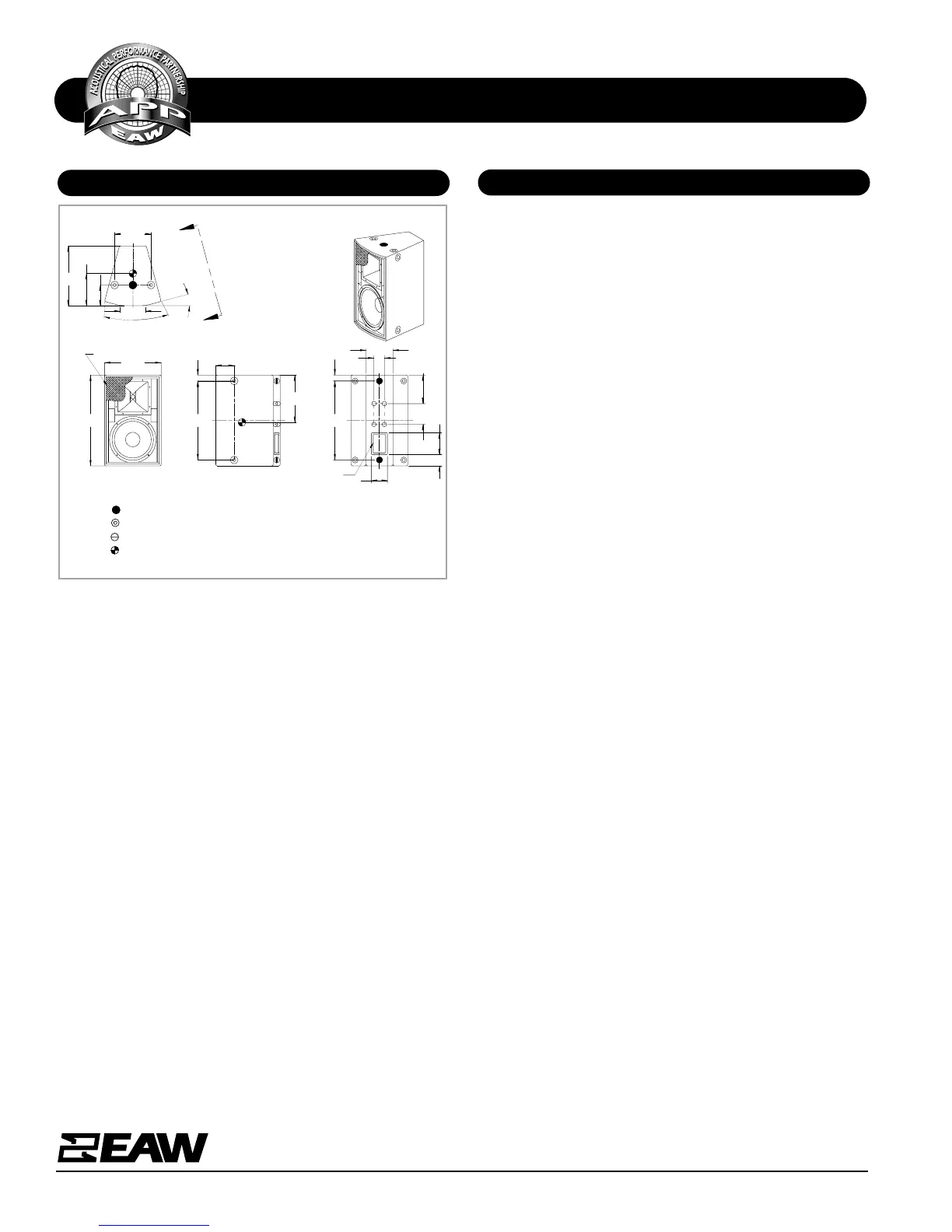

DIMENSIONAL DRAWING
A & E SPECIFICATIONS
One Main Street, Whitinsville, MA 01588 508 234 6158 Toll Free 800 992 5013 FAX 508 234 8251 info@eaw.com www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. MK5164e/0002731/2 pp April 2002 Printed in USA
The 2-way full-range loudspeaker shall incorporate a 15-in LF
transducer and a 1.4-in exit/1.75-in diaphragm HF compres-
sion driver.
The LF transducer shall be mounted in a vented enclosure
tuned for optimum low frequency response. The HF driver shall
be loaded on a rotatable constant directivity horn with a
nominal beamwidth of 60° (h) x 45° (v). An internal passive
filter network shall provide acoustical crossover and system
equalization.
System frequency response shall vary no more than ±3 dB
from 50 Hz to 18 kHz measured on axis. The loudspeaker shall
produce a sound pressure level (SPL) of 97 dB SPL on axis at
1 meter with a power input of 1 watt, and shall be capable of
producing a peak output of 130 dB SPL on axis at 1 meter. It
shall handle 500 watts of amplifier power (AES Standard) and
shall have a nominal impedance of 8 ohms.
The loudspeaker enclosure shall be trapezoidal in shape. It
shall be constructed of exterior grade Baltic birch plywood
and employ extensive internal bracing. It shall be finished in
wear-resistant textured black paint. Input connectors shall be
a 2-terminal barrier strip. A total of twelve 3/8”-16 thread-
ed mounting points shall be provided. Four addtional mount-
ing points for use with an Omnimount Series 300 or similar
bracket shall also be provided. The front of the loudspeaker
shall be covered with a powder coated perforated steel grille.
The 2-way full-range loudspeaker shall be the EAW model
MK5164e.
9.43
(1.97)
6.88
26.06
L
C
A
C
A
TOP
L
12.00
(1.95)
L
C
26.10
(8.88)
C
L
3.44
VIEW A-A
DIMENSIONS APPLY
TO BOTH SIDES
6.09
15.62
6.80
8.45
19.73
8.32
BACK
FRONT
18.71
INPUT
30.00
5.25
NOTES:
1. SYMBOL INDICATES MOUNTING POINT,
3/8-16 THREADED HOLE (NUT PLATE).
2. SYMBOL INDICATES MOUNTING POINT,
3/8-16 THREADED HOLE ( PI ANGLE).
3. SYMBOL INDICATES MOUNTING POINT
5/16-18 T-NUT FOR OMNIMOUNT SERIES 300.
4. SYMBOL INDICATES CENTER OF BALANCE.
5. WEIGHT APPROX. 78 LBS.
6. SHIPPING WEIGHT APPROX. 89 LBS.
GRILLE PARTIALLY SHOWN
2X 15°
3.70
7.25
DIMENSIONS APPLY
TO TOP AND BOTTOM
29°
MK5164e
Manufacturing tolerances are +/- 0.13 and +/- 1°
