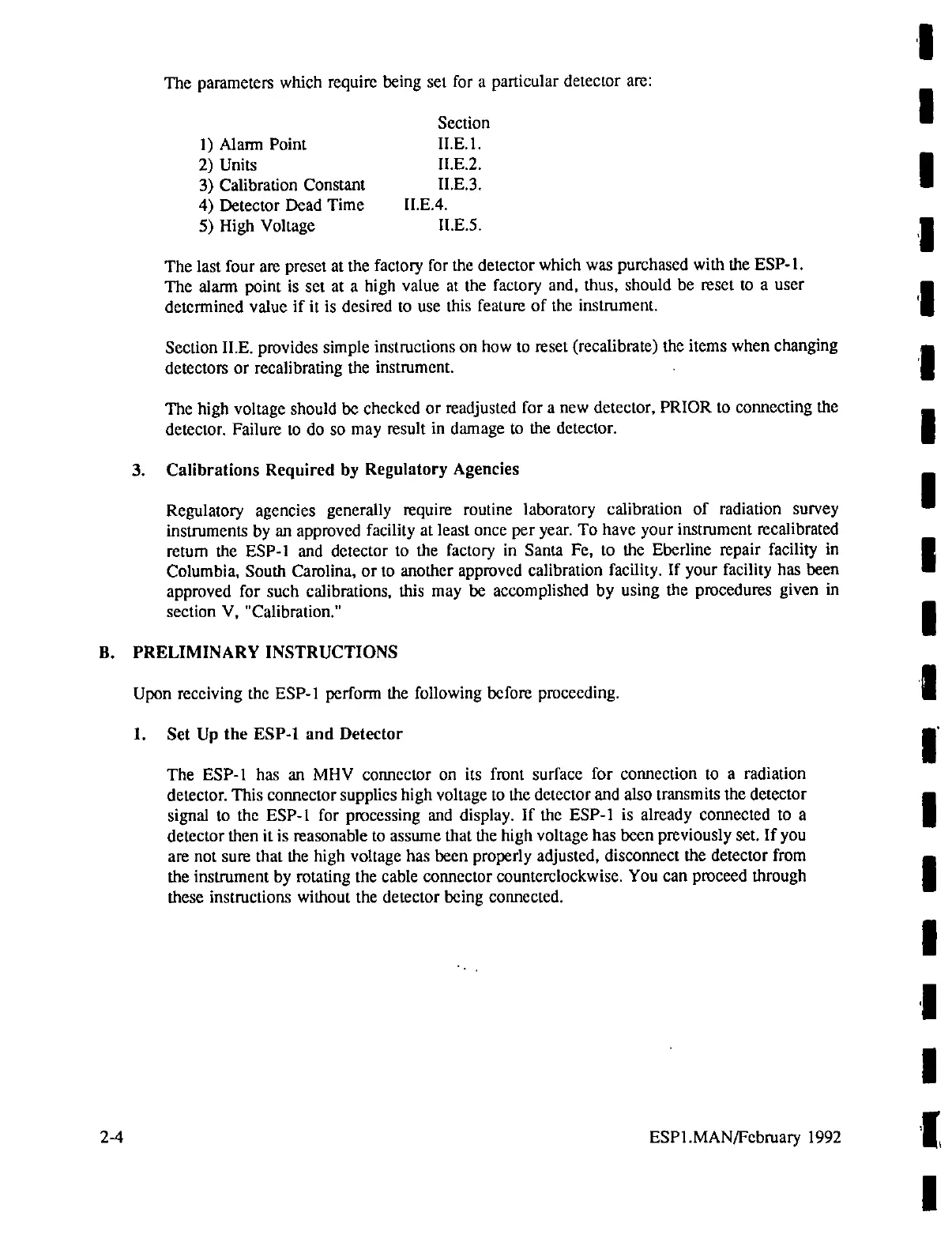

The
parameters
which
require
being
set
for
a
particular
detector
are:
Section
1)
Alarm
Point
ILE.1.
2)
Units
ILE.2.
3)
Calibration
Constant
ILE.3.
4)
Detector
Dead
Time
ILE.4.
5)
High
Voltage
ΠΕ.5.
The
last
four
are
preset
at
the
factory
for
the
detector
which
was
purchased
with
the
ESP-1.
The
alarm
point
is
set
at
a
high
value
at
the
factory
and,
thus,
should
be
reset
to
a
user
determined
value
if
it
is
desired
to
use
this
feature
of
the
instrument.
Section
П.Е.
provides
simple
instructions
on
how
to
reset
(recalibrate)
the
items
when
changing
detectors
or
recalibrating
the
instrument.
`
.
The
high
voltage
should
be
checked
or
readjusted
for
a
new
detector,
PRIOR
to
connecting
the
detector.
Failure
to
do
so
may
result
in
damage
to
the
detector.
Calibrations
Required
by
Regulatory
Agencies
Regulatory
agencies
generally
require
routine
laboratory
calibration
of
radiation
survey
instruments
by
an
approved
facility
at
least
once
per
year.
To
have
your
instrument
recalibrated
retum
the
ESP-1
and
detector
to
the
factory
in
Santa
Fe,
to
the
Eberline
repair
facility
in
Columbia,
South
Carolina,
or
to
another
approved
calibration
facility.
If
your
facility
has
been
approved
for
such
calibrations,
this
may
be
accomplished
by
using
the
procedures
given
in
section
V,
"Calibration."
B.
PRELIMINARY
INSTRUCTIONS
24
Upon
recciving
the
ESP-1
perform
the
following
before
proceeding.
1.
Set
Up
the
ESP-1
and
Detector
The
ESP-1
has
an
MHV
connector
on
its
front
surface
for
connection
to
a
radiation
detector.
This
connector
supplics
high
voltage
to
the
detector
and
also
transmits
the
detector
signal
to
the
ESP-1
for
processing
and
display.
If
the
ESP-1
is
already
connected
to
a
'
detector
then
it
is
reasonable
to
assume
that
the
high
voltage
has
been
previously
set.
If
you
are
not
sure
that
the
high
voltage
has
been
properly
adjusted,
disconnect
the
detector
from
the
instrument
by
rotating
the
cable
connector
counterclockwise.
You
can
proceed
through
these
instructions
without
the
detector
being
connected.
ESPI.MAN/February
1992
