Eberline ESP-1 - Page 36

ми πα иш

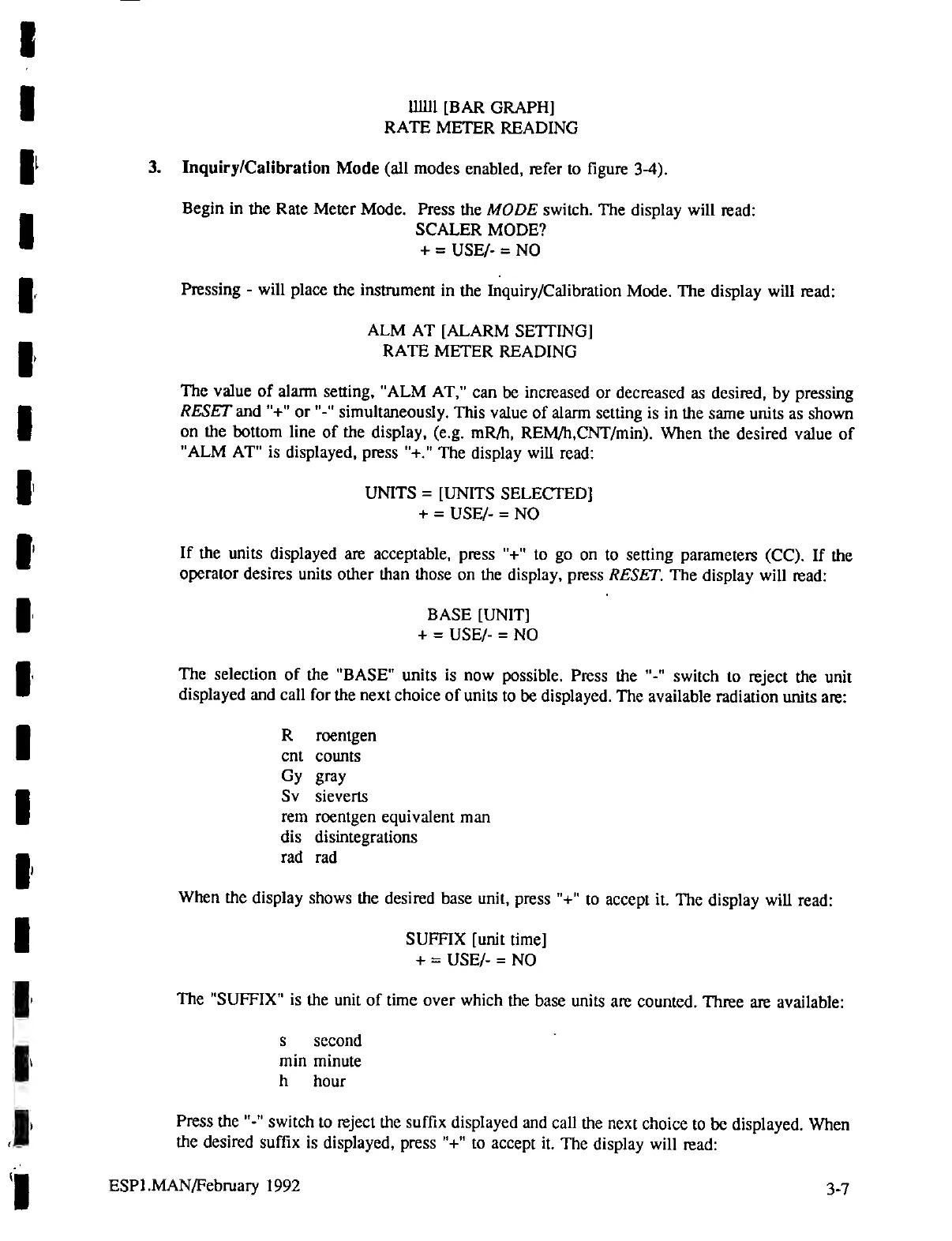

ІШІ [BAR GRAPH]
RATE METER READING
3. Inquiry/Calibration Mode (all modes enabled, refer to figure 3-4).
Begin in the Rate Meter Mode. Press the MODE switch. The display will read:
SCALER MODE?
+ = USE/- = NO
Pressing - will place the instrument in the Inquiry/Calibration Mode. The display will read:
ALM AT [ALARM SETTING]
RATE METER READING
The value of alarm setting, "ALM AT," can be increased or decreased as desired, by pressing
RESET and "+" or "-" simultaneously. This value of alarm setting is in the same units as shown
on the bottom line of the display, (e.g. mR/h, REM/h,CNT/min). When the desired value of
"ALM AT" is displayed, press "+." The display will read:
UNITS = [UNITS SELECTED]
+ = USE/- = NO
If the units displayed are acceptable, press "+" to go on to setting parameters (CC). If the
Operator desires units other than those on the display, press RESET. The display will read:
BASE [UNIT]
+ = USE/- = NO
The selection of the "BASE" units is now possible. Press the "-" switch to reject the unit
displayed
and
call
for
the
next
choice
of
units
to
be
displayed.
The
available
radiation
units
are:
R roentgen
ent counts
Gy gray
Sv sieverts
rem roentgen equivalent man
dis disintegrations
rad rad
When
the
display
shows
the
desired
base
unit,
press
"+"
to
accept
it.
The
display
will
read:
SUFFIX [unit time]
+ = USE/- = NO
The
"SUFFIX"
is
the
unit
of
time
over
which
the
base
units
are
counted.
Three
are
available:
s second
min minute
h hour
Press
the
"-"
switch
to
reject
the
suffix
displayed
and
call
the
next
choice
to
be
displayed.
When
the
desired
suffix
is displayed,
press "+"
to
accept
it.
The
display will
read:
ESP1.MAN/February 1992 3-7
