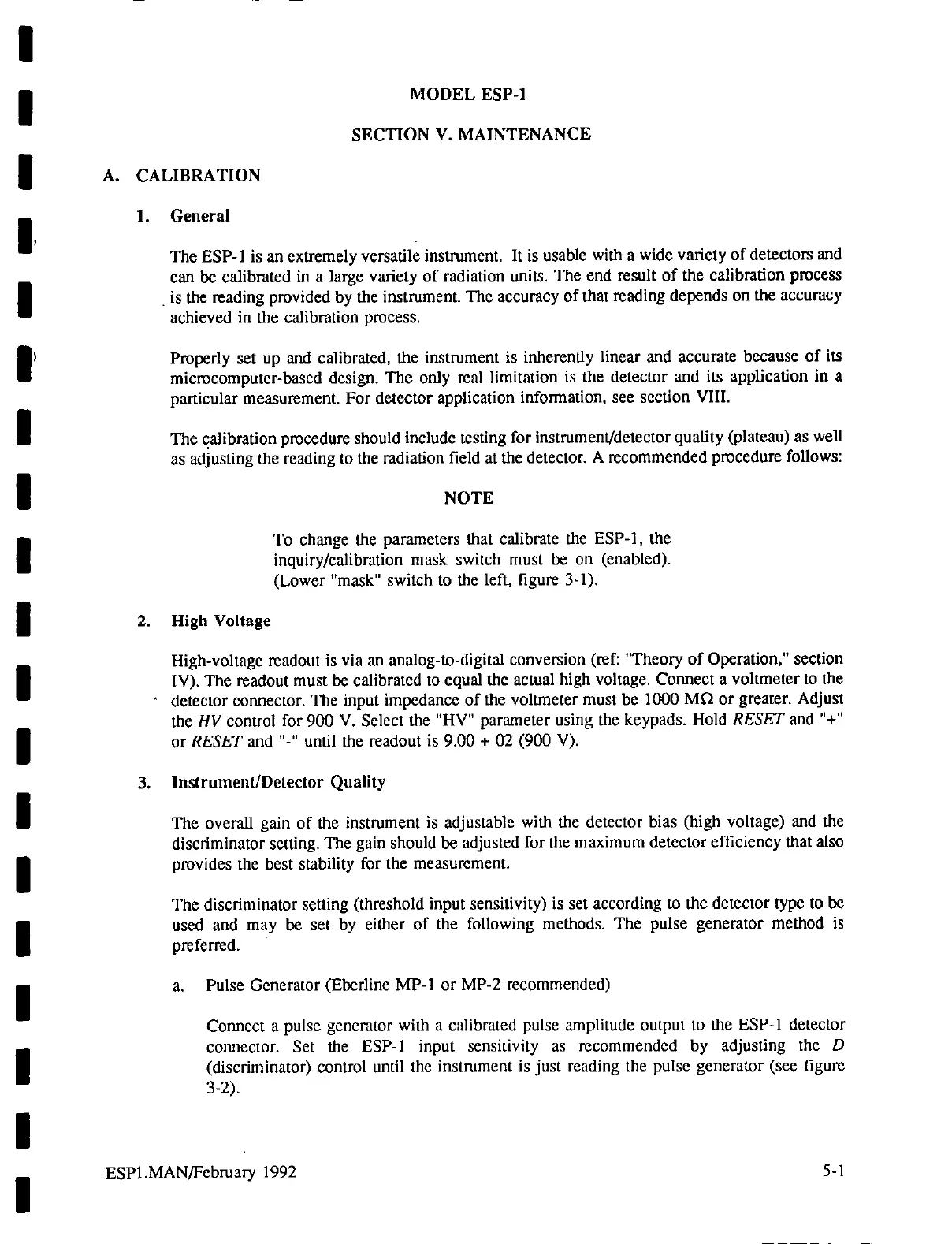

MODEL
Е$Р-1
SECTION
V.
MAINTENANCE
A.
CALIBRATION
1.
General
The
ESP-1
is
an
extremely
versatile
instrument.
It
is
usable
with
a
wide
variety
of
detectors
and
can
be
calibrated
in
a
large
variety
of
radiation
units.
The
end
result
of
the
calibration
process
.
is
the
reading
provided
by
the
instrument.
The
accuracy
of
that
reading
depends
on
the
accuracy
achieved
in
the
calibration
process.
Properly
set
up
and
calibrated,
the
instrument
is
inherently
linear
and
accurate
because
of
its
microcomputer-based
design.
The
only
real
limitation
is
the
detector
and
its
application
in
a
particular
measurement.
For
detector
application
information,
see
section
VIII.
The
calibration
procedure
should
include
testing
for
instrument/detector
quality
(plateau)
as
well
as
adjusting
the
reading
to
the
radiation
field
at
the
detector.
A
recommended
procedure
follows:
NOTE
To
change
the
parameters
that
calibrate
the
ESP-1,
the
inquiry/calibration
mask
switch
must
be
on
(enabled).
(Lower
"mask"
switch
to
the
left,
figure
3-1).
High
Voltage
High-voltage
readout
is
via
an
analog-to-digital
conversion
(ref:
"Theory
of
Operation,"
section
IV).
The
readout
must
be
calibrated
to
equal
the
actual
high
voltage.
Connect
a
voltmeter
to
the
*
detector
connector.
The
input
impedance
of
the
voltmeter
must
be
1000
ΜΩ
or
greater.
Adjust
the
HV
control
for
900
V.
Select
the
"HV"
parameter
using
the
keypads.
Hold
RESET
and
"+"
or
RESET
and
"-"
until
the
readout
is
9.00
+
02
(900
V).
Instrument/Detector
Quality
The
overall
gain
of
the
instrument
is
adjustable
with
the
detector
bias
(high
voltage)
and
the
discriminator
setting.
The
gain
should
be
adjusted
for
the
maximum
detector
efficiency
that
also
provides
the
best
stability
for
the
measurement.
The
discriminator
setting
(threshold
input
sensitivity)
is
set
according
to
the
detector
type
to
be
used
and
may
be
set
by
either
of
the
following
methods.
The
pulse
generator
method
is
preferred.
`
a.
Pulse
Generator
(Eberline
MP-1
or
MP-2
recommended)
Connect
a
pulse
generator
with
a
calibrated
pulse
amplitude
output
to
the
ESP-1
detector
connector
Set
the
ESP-1
input
sensitivity
as
recommended
by
adjusting
the
D
(discriminator)
control
until
the
instrument
is
just
reading
the
pulse
generator
(see
figure
3-2).
А
ESP1.MAN/February
1992
5-1
