Eberline ESP-1 - Page 82

TURN OFF
SET FOR
“SLEEP”
TURN ON
ARE
PARAMETERS
SPEC'D
* Pressing ON/OFF always
starts the program at BEGIN.
SET
PARAMETERS
TO DEFAULT
VALUES
** Microcomputer stays in this
mode until ON/OFF keypad
is pressed, which causes
the logic to return to BEGIN.
TURN ON POWER
TO REST OF UNIT
WAIT TWO SECONDS TO
STABILIZE VOLTAGE
INITIALIZE TIMER,
COUNTERS, DISPLAY
RATE METER
MODE
(Figure 7-9)

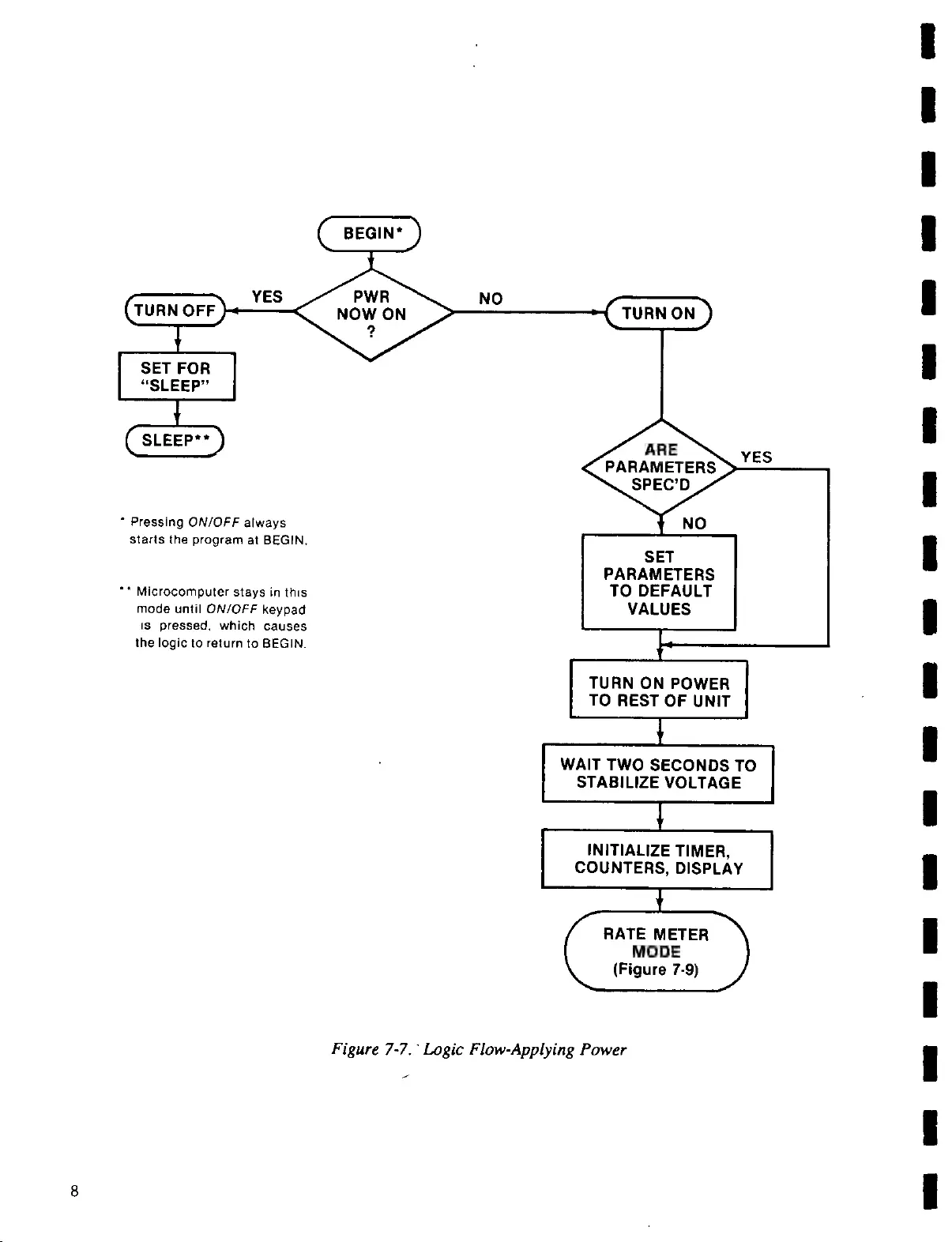

Figure 7-7. Logic Flow-Applying Power
