M3G150 / 200 Disassembly instructions
Document No.: - • Change: 01 • Release date: 2019-02-12 • (VM-POK) • Page 2/9
ebm-papst Mulfingen GmbH & Co. KG • Bachmühle 2 • 74673 Mulfingen • Germany
Phone +49 7938 81-0 • Fax +49 7938 81-110 • info1@de.ebmpapst.com • www.ebmpapst.com
3. DISASSEMBLY

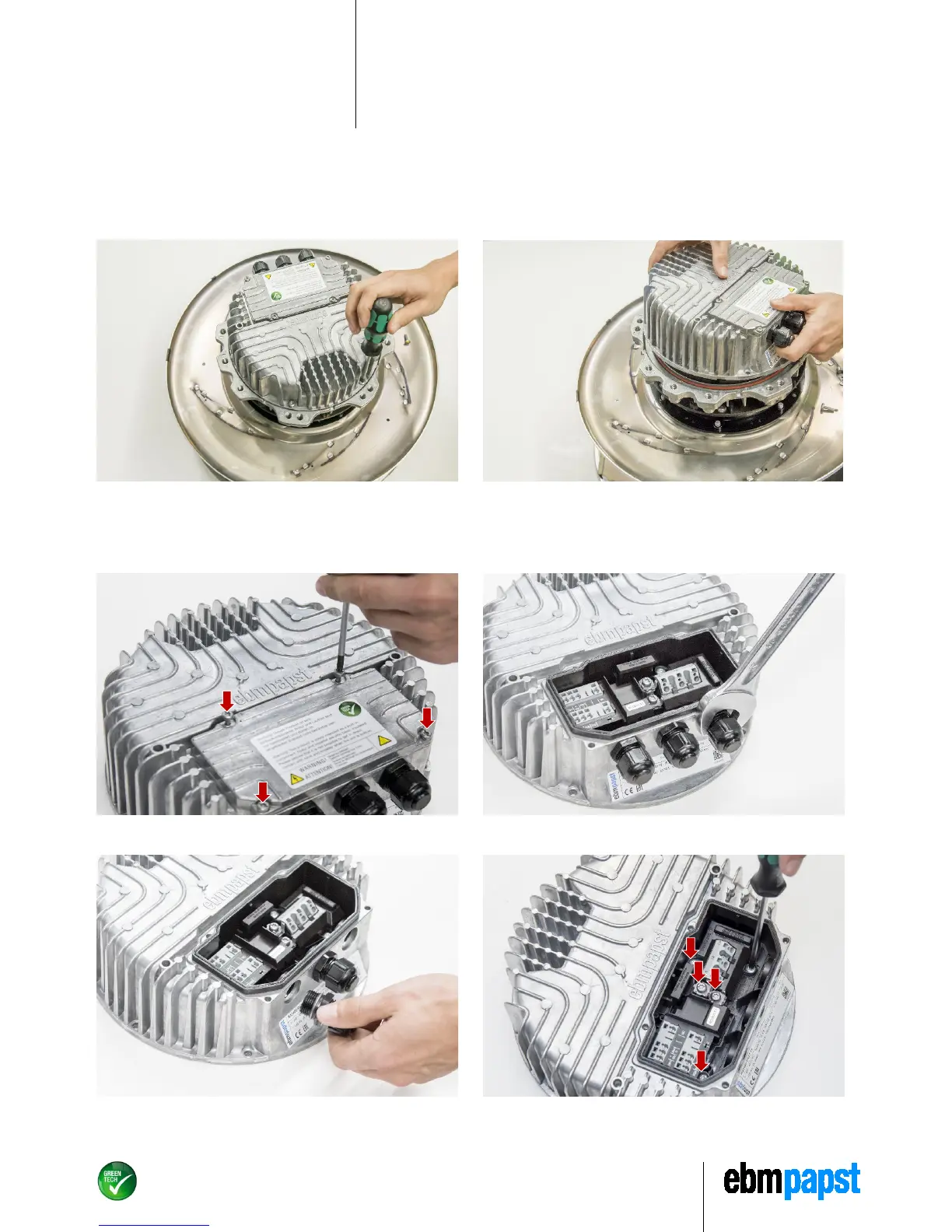

3.1. Separating the electronics housing from the fan impeller
1. Unfasten the six screws at the housing.
3.2. Dismantling the electronics housing
3. Unfasten the four screws at the housing and detach the cover.
4. Disconnect the cables (not shown) and unfasten the cable glands.
5. Completely unscrew the three cable glands.
6. Unfasten the five screws in the terminal box.
