Ebsray MD Series User Manual

TABLE OF CLEARANCES – Metallic Bearings (All dimensions in millimetres)
Clearance
Grade
EBSRAY
MODEL
Diametral
Shaft
to Bearing
W
Diametral
Rotor Pin
to Bearing
Z
Diametral
Outer Rotor
to Body
X
Axial
Rotors
to Cover
Y
Radial
Inner Rotor
to Crescent
V
MD100
0.051/0.089 0.063/0.101 0.10/0.16 0.04/0.07 0.03/0.08
0.03/0.08
MD114
0.051/0.089 0.063/0.101 0.11/0.17 0.04/0.07
0.03/0.08
A MD112
0.051/0.089 0.063/0.101 0.13/0.20 0.05/0.08
0.03/0.08
MD200
0.051/0.089 0.063/0.101 0.15/0.22 0.05/0.08
0.03/0.08
MD212
0.051/0.089 0.076/0.114 0.16/0.25 0.06/0.10
0.03/0.08
MD100
0.076/0.114 0.063/0.101 0.18/0.24 0.08/0.10
0.03/0.08
MD114
0.076/0.114 0.063/0.101 0.19/0.25 0.08/0.10
0.03/0.08
B MD112
0.076/0.114 0.063/0.101 0.21/0.28 0.09/0.12
0.03/0.08
MD200
0.076/0.114 0.063/0.101 0.23/0.30 0.09/0.12
0.03/0.08
MD212
0.076/0.114 0.076/0.114 0.25/0.35 0.12/0.14
0.03/0.08
MD100
0.076/0.114 0.063/0.101 0.27/0.34 0.16/0.19
0.03/0.08
MD114
0.076/0.114 0.063/0.101 0.28/0.35 0.16/0.19
0.03/0.08
C MD112
0.076/0.114 0.063/0.101 0.30/0.38 0.17/0.22
0.03/0.08
MD200
0.076/0.114 0.063/0.101 0.33/0.42 0.17/0.22
MD212
0.076/0.114 0.076/0.114 0.37/0.48 0.20/0.28 0.03/0.08

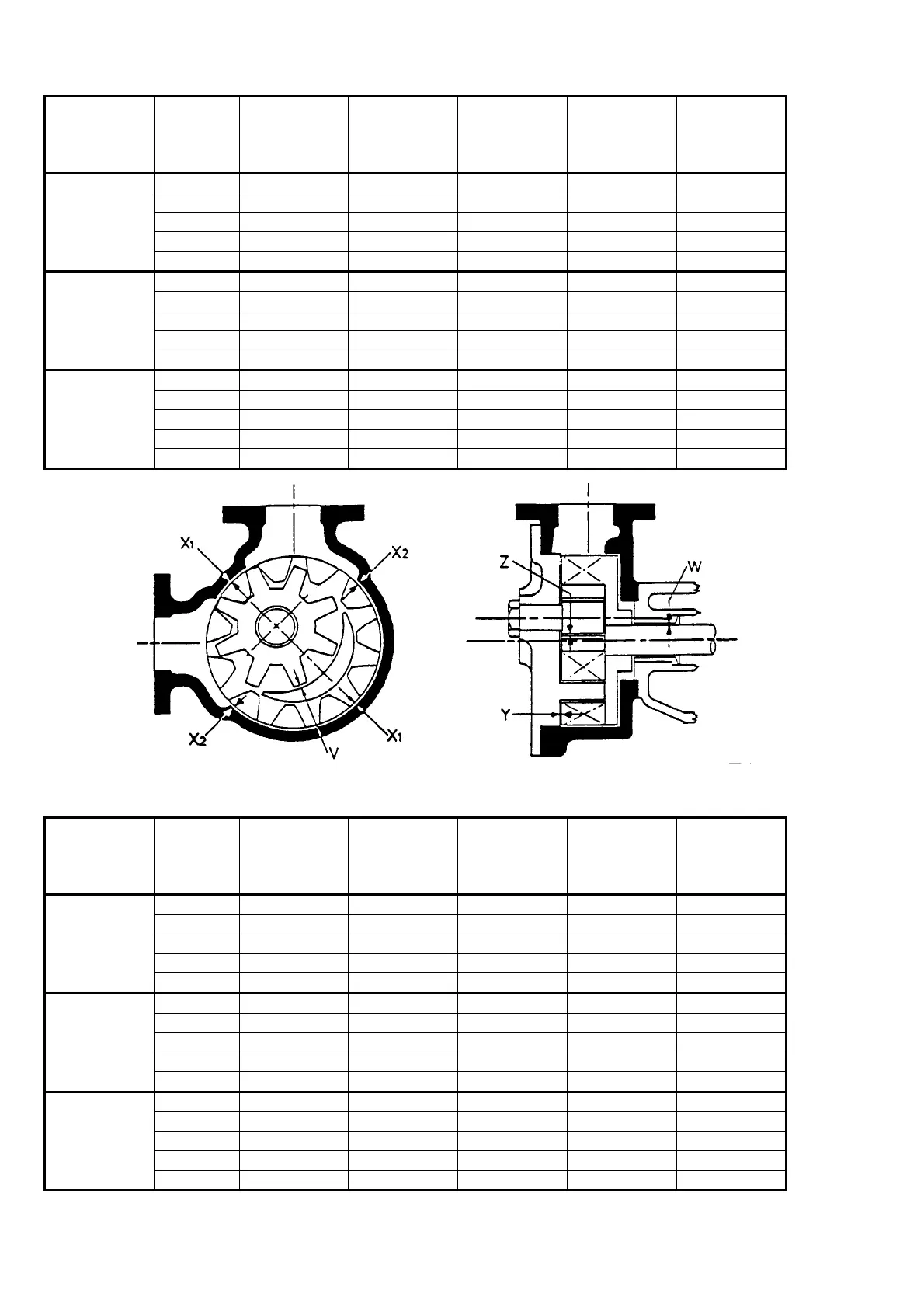

Figure 7
TABLE OF CLEARANCES – Carbon Bearings (All dimensions in millimetres)
Clearance
Grade
EBSRAY
MODEL
Diametral
Shaft
to Bearing
W
Diametral
Rotor Pin
to Bearing
Z
Diametral
Outer Rotor
to Body
X
Axial
Rotors
to Cover
Y
Radial
Inner Rotor
to Crescent
V
0.03/0.08
MD100
0.025/0.063 0.038/0.076 0.10/0.16 0.04/0.07
0.03/0.08
MD114
0.025/0.063 0.038/0.076 0.11/0.17 0.04/0.07
0.03/0.08
A MD112
0.025/0.063 0.038/0.076 0.13/0.20 0.05/0.08
0.03/0.08
MD200
0.025/0.063 0.038/0.076 0.15/0.22 0.05/0.08
0.03/0.08
MD212
0.025/0.063 0.051/0.089 0.16/0.25 0.06/0.10
0.03/0.08
MD100
0.051/0.089 0.038/0.076 0.18/0.24 0.08/0.10
0.03/0.08
MD114
0.051/0.089 0.038/0.076 0.19/0.25 0.08/0.10
0.03/0.08
B MD112
0.051/0.089 0.038/0.076 0.21/0.28 0.09/0.12
0.03/0.08
MD200
0.051/0.089 0.038/0.076 0.23/0.30 0.09/0.12
0.03/0.08
MD212
0.051/0.089 0.051/0.089 0.25/0.35 0.12/0.14
0.03/0.08
MD100
0.051/0.089 0.038/0.076 0.27/0.34 0.16/0.19
0.03/0.08
MD114
0.051/0.089 0.038/0.076 0.28/0.35 0.16/0.19
0.03/0.08
C MD112
0.051/0.089 0.038/0.076 0.30/0.38 0.17/0.22
0.03/0.08
MD200
0.051/0.089 0.038/0.076 0.33/0.42 0.17/0.22
0.03/0.08
MD212
0.051/0.089 0.051/0.089 0.37/0.48 0.20/0.28
6
