FIG.4:
The Pedals (pt.1 L & pt.1 R) are
marked "L" and "R" - Left and Right.
Connect them to their appropriate
crank arms. The right crank arm is on
the right- hand side of the cycle as you
sit on it.
Note that the Right pedal should be
threaded on clockwise and the Left
pedal anticlockwise.

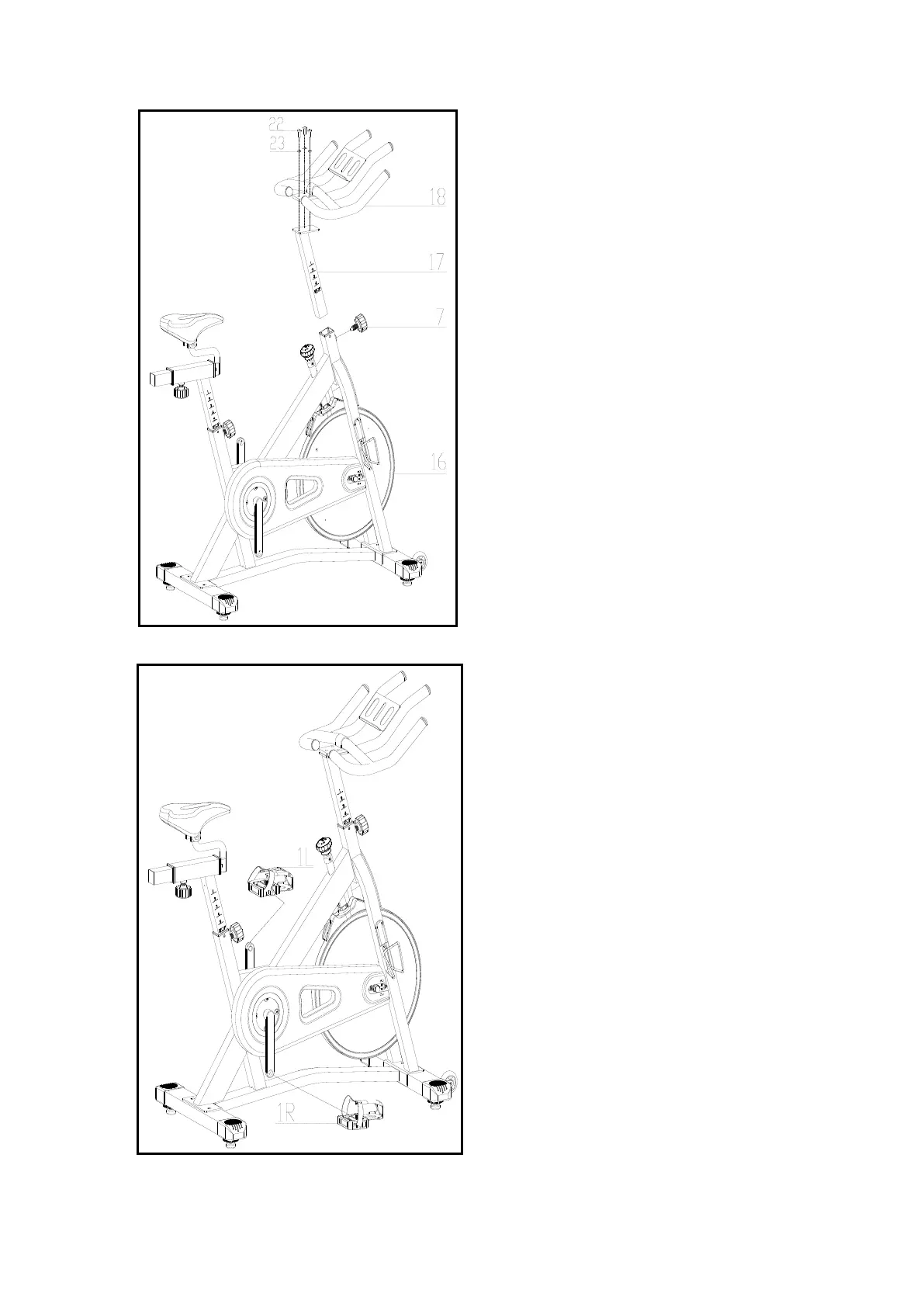

FIG.3:
First, the elastic bolt (21) of the large ball
head is relaxed and pulled down. Then, the
armrest regulating tube assembly (17) is
inserted into the inter-tube bushing of the
main frame assembly (16) to make it in
proper position. Then, the elastic bolt (21) of
the large ball head is released and locked.
Then the handrail tube assembly (18) is
fixed on the handrail regulating tube
assembly (17) by using light elastic washer
(23 and inner hexagonal flat round head
screw (22), and the handrail tube assembly
(17) is locked.
ATTENTION: YOU SHOULD FIX THE
HANDLEBAR TIGHTLY
