MAINTENANCE AND CARE
- ALWAYS KEEP THE UNIT CLEAN -
AIR FILTER
Clean before using the unit.
- Close choke and remove air cleaner cover.
- Remove air filter (Air filter is located inside air
cleaner cover).
- Brush off dust lightly or clean with compressed
air.
- Reinstall cover and engage latch.
FUEL FILTER
Check periodically.
- Do not allow dust to enter into fuel tank.
- Clogged filter will cause difficulty in starting
engine or abnormalities in engine performances.
- Pick up fuel filter through fuel inlet port with a
piece of steel wire or the like.
- When filter is dirty, wash it in suitable cleaning
fluid or replace it.
MUFFLER AND EXHAUST PORT (SAM)
Clean as necessary.
Carbon deposits in cylinder exhaust port and
muffler will reduce engine output.
- Muffler can be removed by taking off muffler
cover.
- Remove spark arrestor screen from muffler.
- Clean carbon deposits from screen and muffler
components.
- Be careful not to scratch cylinder or piston when
cleaning cylinder exhaust port.
Use non-ferrous plastic or wood.
- Replace spark arrestor screen if it is cracked,
plugged or has holes burned through.
- Inspect gaskets, replace if damaged.
- Assemble components in reverse order.
(See left figure.)
CYLINDER FINS
Check periodically.
Clogged fins will result in poor engine cooling.
Remove dirt and dust from between fins to let
cooling air pass easily.

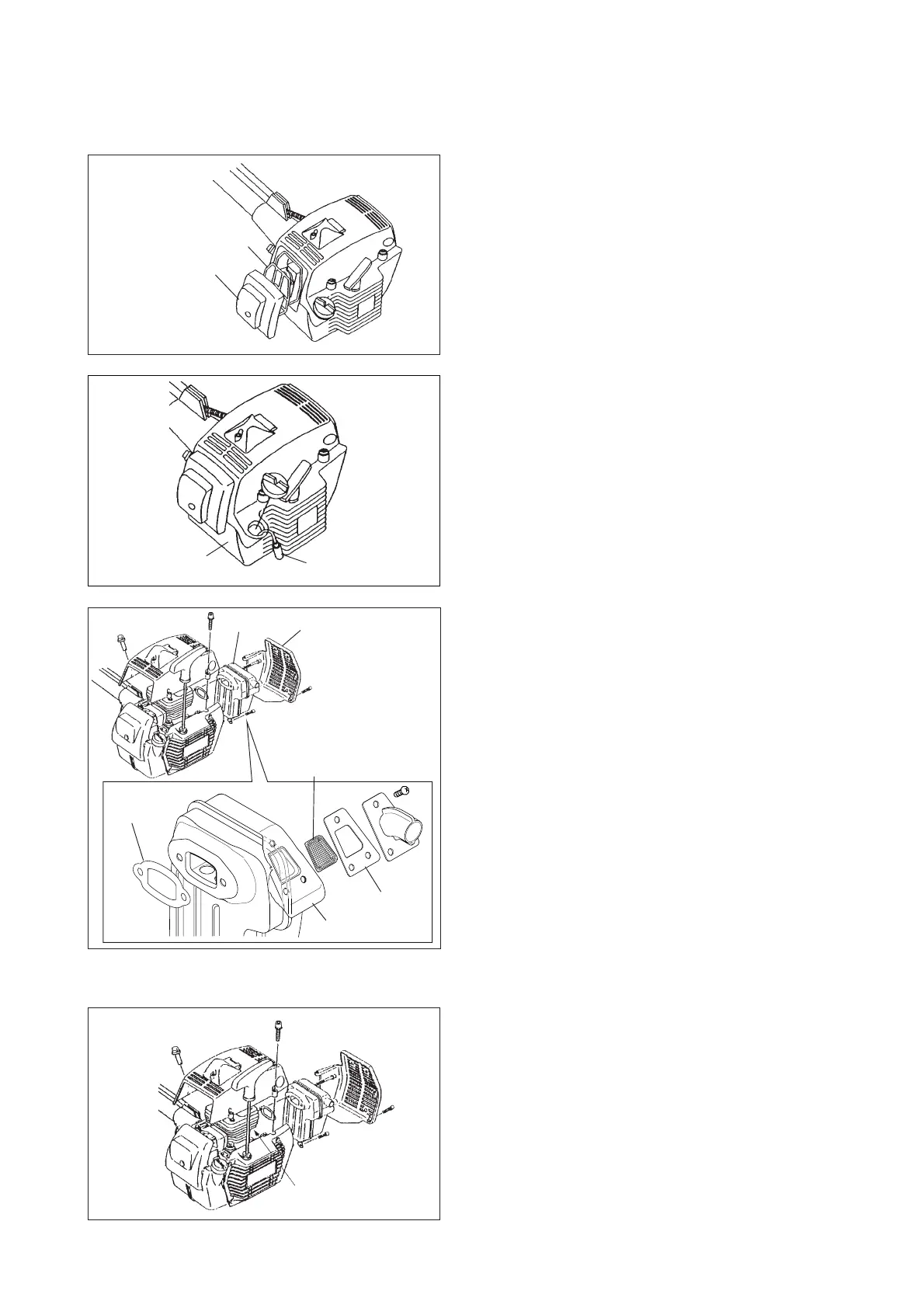

Cylinder fins
Air cleaner cover
Air filter
Fuel tank
Fuel filter
Muffler cover
Muffler
Gasket
Muffler
Spark arrestor screen
Gasket
