FILING THE BLADE
(A)
• File with round file 4.0 to 4.8 mm (3/16” to 5/32”).

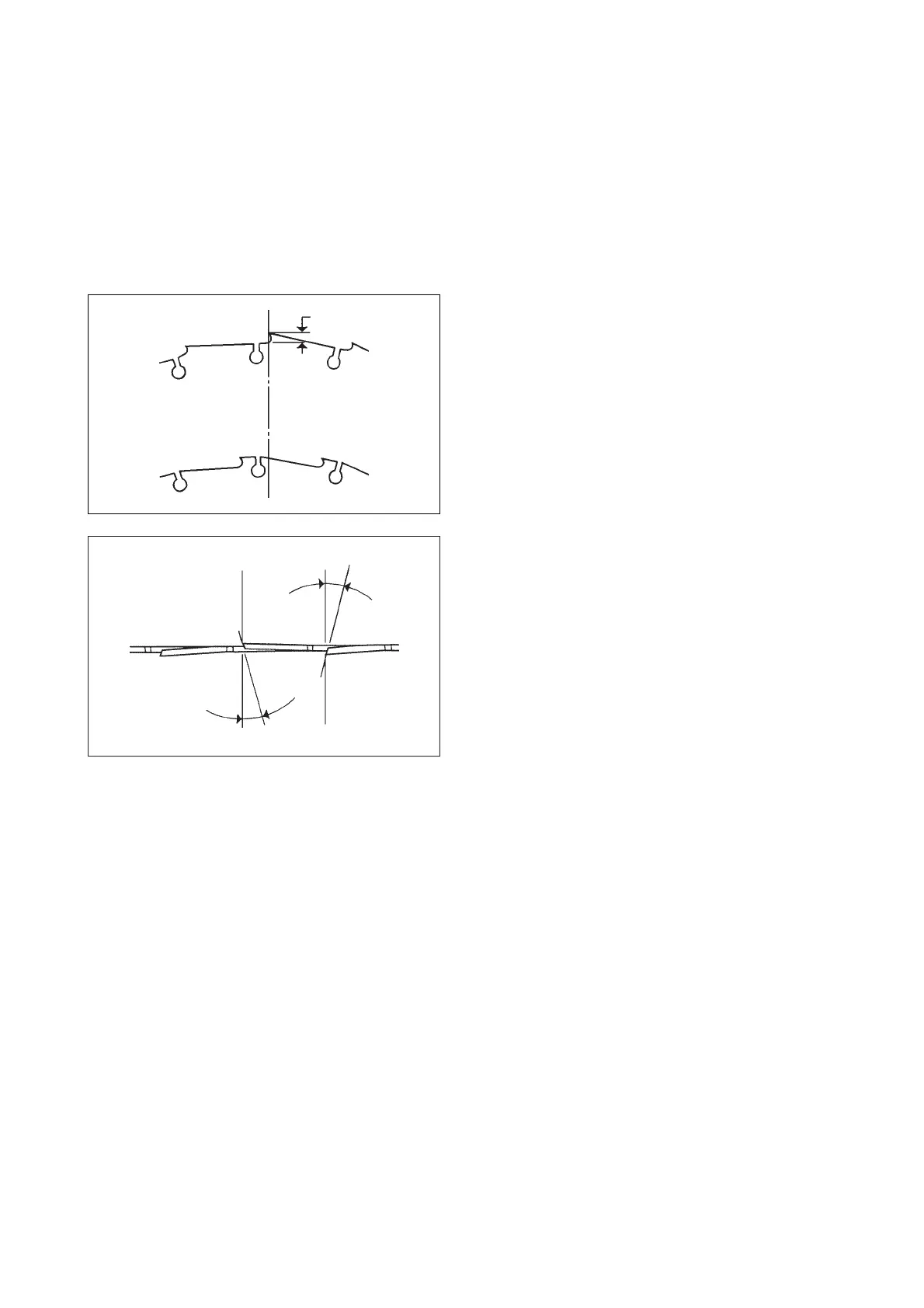

• The blade should be filed on the breast side and
equally on each single tooth. (Fig 1)
15°
Tooth height
MAGNETO
The unit is incorporated with a CDI (Capacitor
Discharge Ignition) system, which does not require
adjustment of ignition timing and the contact
breaker point gap.
Ensure wire connections and couplers assembling.
Fig. 1
Field blade
Center line
Fig. 2
(B)
• The cutting angle should be approximately 15
degress.
• The bottom of the tooth must be rounded off.
Sharp edges can cause crack formation. (Fig 2)
15°
CHECK FUEL SYSTEM
• Check before every use.
• After refuelling make sure fuel does not leak or
exude from around fuel pipe, fuel grommet or fuel
tank cap.
• In case of fuel leakage or exudation there is a
danger of fire. Stop using the machine
immediately and request your dealer to inspect or
replace.
