Echo CS-4200ES Parts Catalog

CS-4200ES

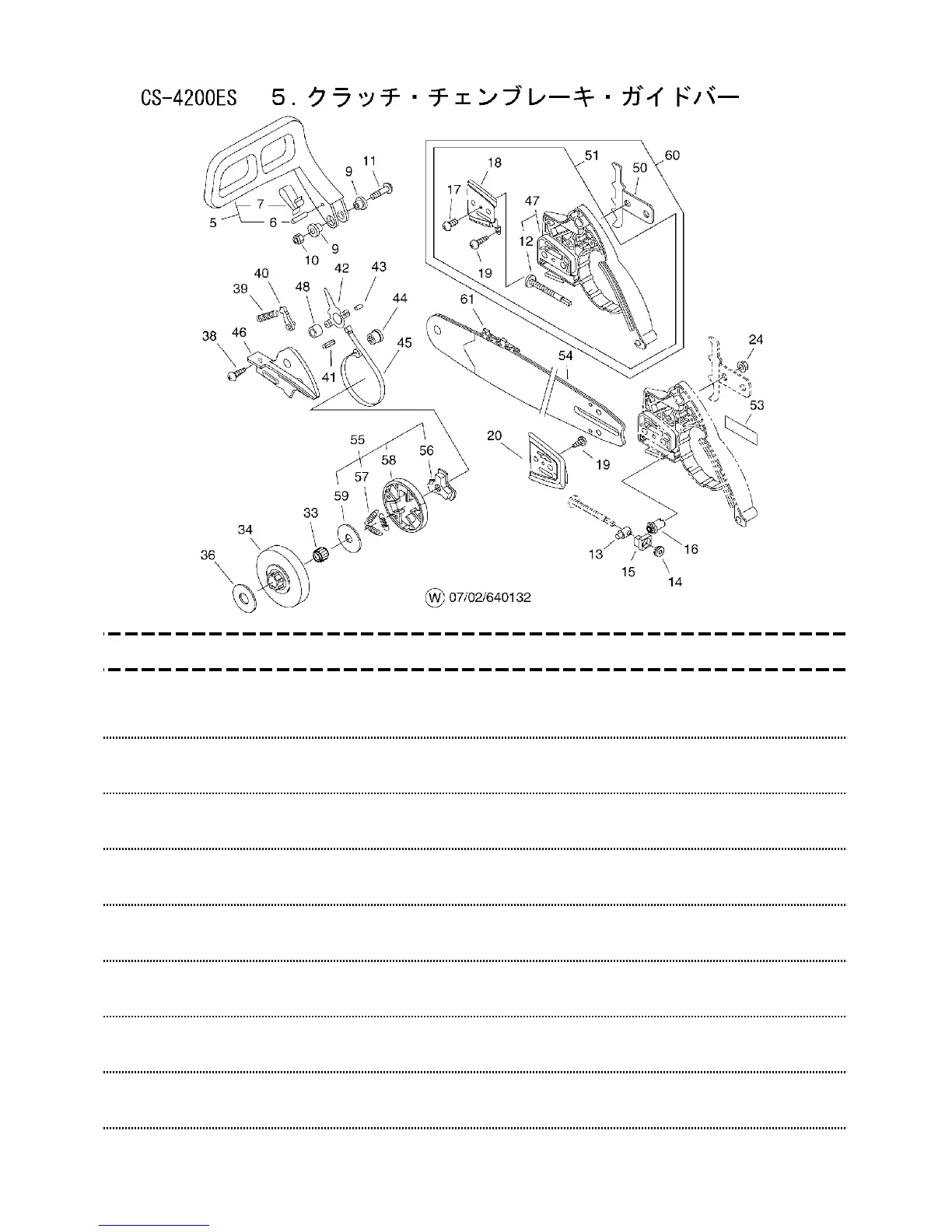

5. クラッチ・チェンブレーキ・ガイドバー
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
5 433105-60030 1 LEVER, BRAKE
6 + 900330-30240 1
PIN 3*24
3*23.8
7 + 433114-38331 1
SPRING
9 433167-39130 2
SPACER
10 900562-50005 1
LOCKNUT 5
5
11 91318-05032 1
SCREW
5*32
13 C309-000030 1
TENSIONER,CHAIN
14 V651-000011 1
GEAR,BEVEL
15 V355-000270 1
COLLAR,8
16 V651-000001 1
GEAR,BEVEL
19 900253-04008 1
SCREW 4*8
4*8
20 433012-39930 1
PLATE, GUIDE
24 433019-12330 2
NUT, FLANGE 8
M-8
33 175012-00831 1
BEARING, NEEDLE
34 A556-000171 1
DRUM,CLUTCH
36 175019-38330 1
PLATE, CLUTCH
38 900253-04010 2
SCREW 4*10
4*10
39 433122-35430 1
SPRING, BRAKE
40 433209-35430 1
STOPPER, BRAKE
41 900342-25012 1
PIN, SPRING 2.5*12
2.5*12
42 433208-35431 1
LEVER, BRAKE
43 900330-40088 1
ROLLER 4*8.8
4*8.8
44 433142-35430 1
ADJUSTER, BRAKE
45 C328-000060 1
BAND,BRAKE
46 433310-38330 1
COVER, BRAKE
51 P021-001315 1
GUARD,SPROCKET SET
- 9 -
