CS-4200ES

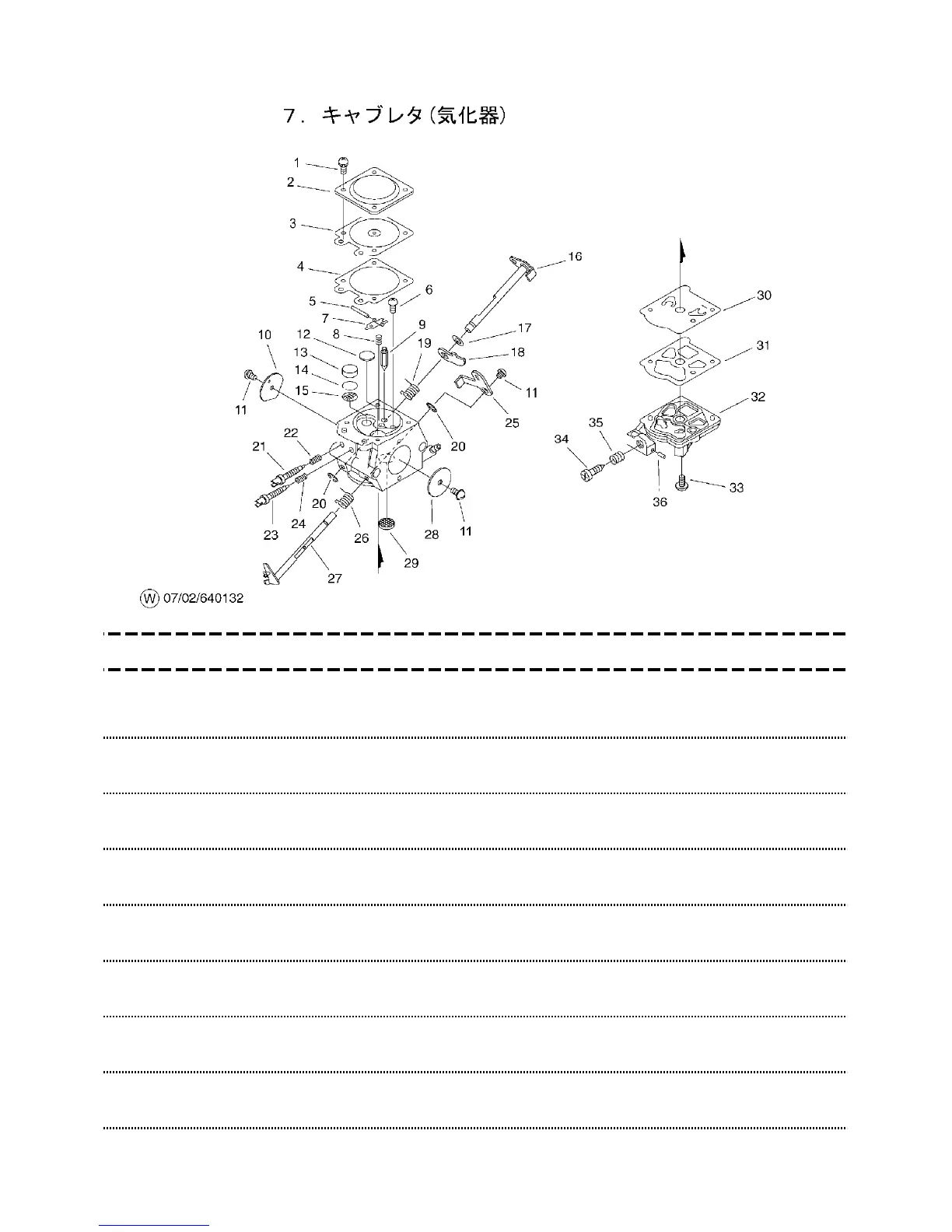

7. キャブレタ（気化器）
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
A021-000080 1 CARBURETOR,DIAPHRAGM WT-567
1 + 123130-02960 4
SCREW
2 + 123142-03930 1
COVER, M. DIAPHRAGM
3 + 123141-03930 1
DIAPHRAGM, METERING
4 + 123140-03930 1
GASKET, M. DIAPHRAGM
5 + 123138-03930 1
PIN, METERING LEVER
6 + 123139-03930 1
SCREW, M. LEVER PIN
7 + 123123-38330 1
LEVER, METERING
8 + 123122-39330 1
SPRING, METER. LEVER
9 + 123137-19830 1
VALVE, INLET NEEDLE
10 + 123132-37330 1
VALVE, CHOKE
11 + 123114-38830 3
SCREW
12 + 123146-10631 1
PLUG, WELCH
13 + 123146-17330 1
PLUG, CUP
14 + 123169-10630 1
RING, RETAINING
15 + 123168-10631 1
SCREEN
16 + P003-000150 1
CHOKE, SHAFT
17 + 123149-26030 1
WASHER
18 + P003-000160 1
LEVER-FAST IDLE
19 + P003-000140 1
SPRING
20 + 123127-15030 2
RING
21 + 123120-38330 1
NEEDLE, HIGH SPEED
22 + 123119-22130 1
SPRING, NEEDLE
23 + 123118-38330 1
NEEDLE, IDLE
24 + 123121-22130 1
SPRING, NEEDLE
25 + P003-000130 1
THROTTLE, LEVER
