CS-4200ES

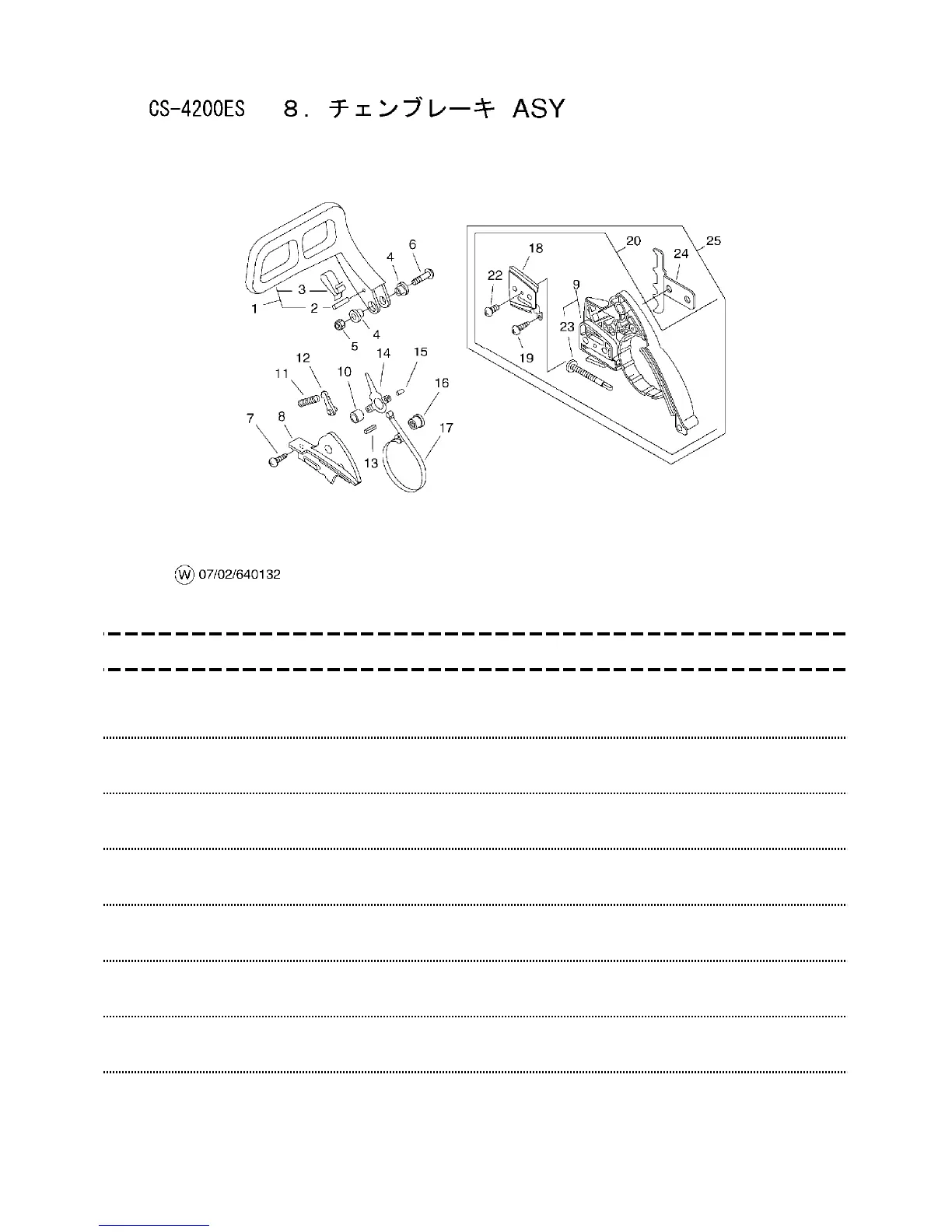

8. チェンブレーキASY
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
+ P021-010302 1 BRAKE,ASM CHAIN
1 + 433105-60030 1
LEVER, BRAKE
2 ++ 900330-30240 1
PIN 3*24
3*23.8
3 ++ 433114-38331 1
SPRING
4 + 433167-39130 2
SPACER
5 + 900562-50005 1
LOCKNUT 5
5
6 + 91318-05032 1
SCREW
5*32
7 + 900253-04010 2
SCREW 4*10
4*10
8 + 433310-38330 1
COVER, BRAKE
10 + 433115-38330 1
WASHER 5.2*12*14
5.2*12*14
11 + 433122-35430 1
SPRING, BRAKE
12 + 433209-35430 1
STOPPER, BRAKE
13 + 900342-25012 1
PIN, SPRING 2.5*12
2.5*12
14 + 433208-35431 1
LEVER, BRAKE
15 + 900330-40088 1
ROLLER 4*8.8
4*8.8
16 + 433142-35430 1
ADJUSTER, BRAKE
17 + C328-000060 1
BAND,BRAKE
9 +++ P021-010170 1
GUARD, SPROCKET KIT
23 +++ V203-000110 1
BOLT,5
18 +++ C305-000011 1
PLATE,SPROCKET GUARD
19 +++ 900253-04008 1
SCREW 4*8
4*8
22 +++ 900220-03006 1
SCREW 3*6
3*6
24 ++ C304-000020 1
SPIKED
