Echo CS-4200ES - SERVICE INFORMATION; Specifications

CS-4200ES

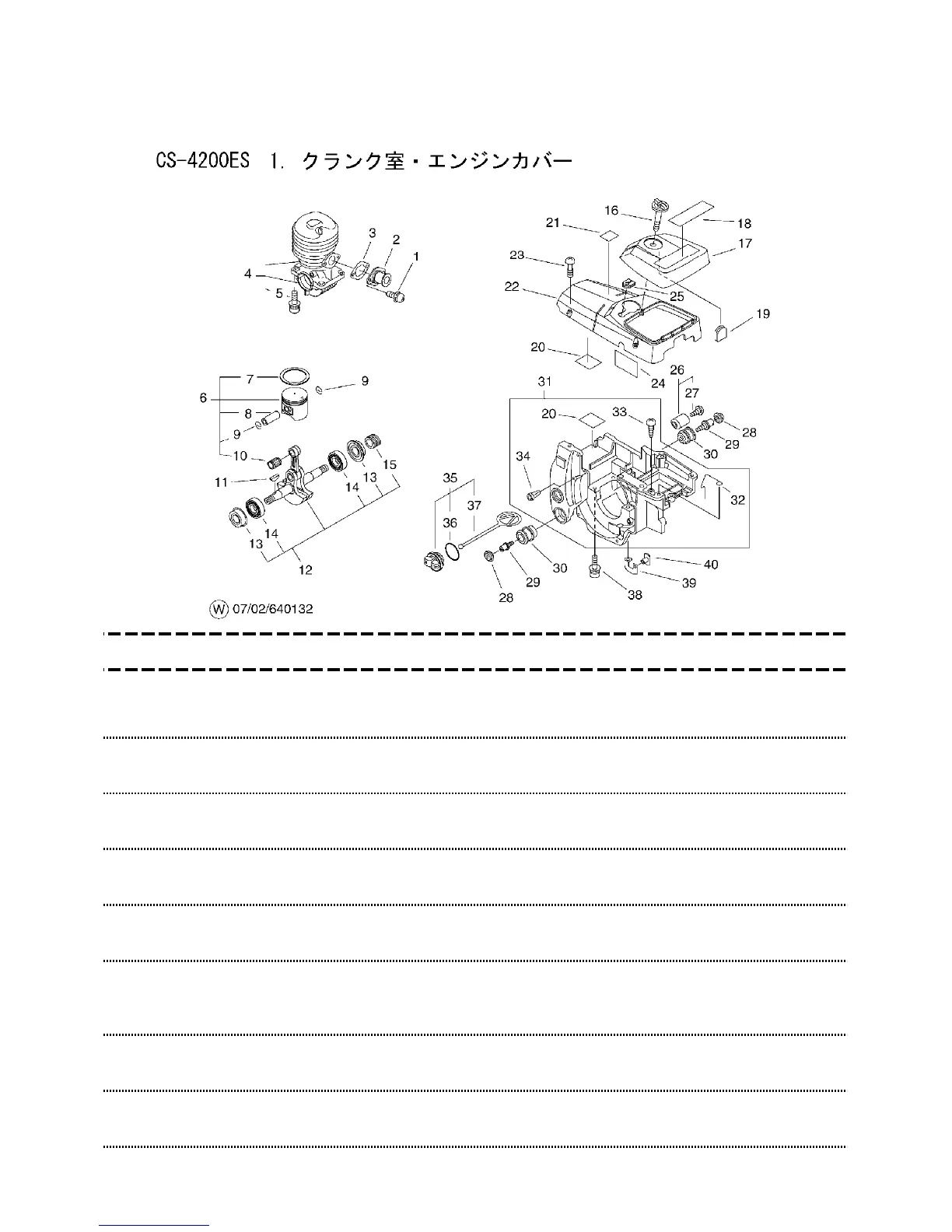

1. クランク室・エンジンカバー
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 900238-05012 2 SCREW 5*12 5*12
2 130510-39932 1
ADAPTER, INTAKE
3 130016-39930 1
GASKET, INTAKE
4 P021-004131 1
CRANKCASE SET
5 + 900162-05022 4
BOLT, H.S. 5*22
5*22 W,SW
6 100000-59531 1
PISTON KIT
7 + 100011-37330 1
RING, PISTON
8 + 100013-35430 1
PIN, PISTON
6*9*27.8
9 + 100015-03931 2
CIRCLIP, PISTON PIN
10 + 100012-35430 1
BEARING, NEEDLE
9*12*12
11 100142-39130 1
KEY, WOODRUFF
12 P021-007240 1
CRANKSHAFT ASY
13 + V505-000010 2
SEAL,OIL 12
14 + 900888-36201 2
BEARING, BALL 6201
6201
15 + 437063-38330 1
GEAR, WORM
16 A235-000020 1
KNOB,CLEANER LID
17 A232-000022 1
LID,CLEANER
18 X503-006141 1
LABEL,MODEL
CSB4200 ES ST1
19 130338-32430 1
PLUG, COVER
20 101520-35430 1
COVER
21 890345-39230 1
LABEL,CAUTION
22 A160-000015 1
COVER,CYLINDER
23 163890-38330 3
BOLT, 5
24 890016-06411 1
LABEL, CAUTION
25 V135-000010 1
GROMMET,HT CORD
