Echo CS-4200ES Parts Catalog

CS-4200ES

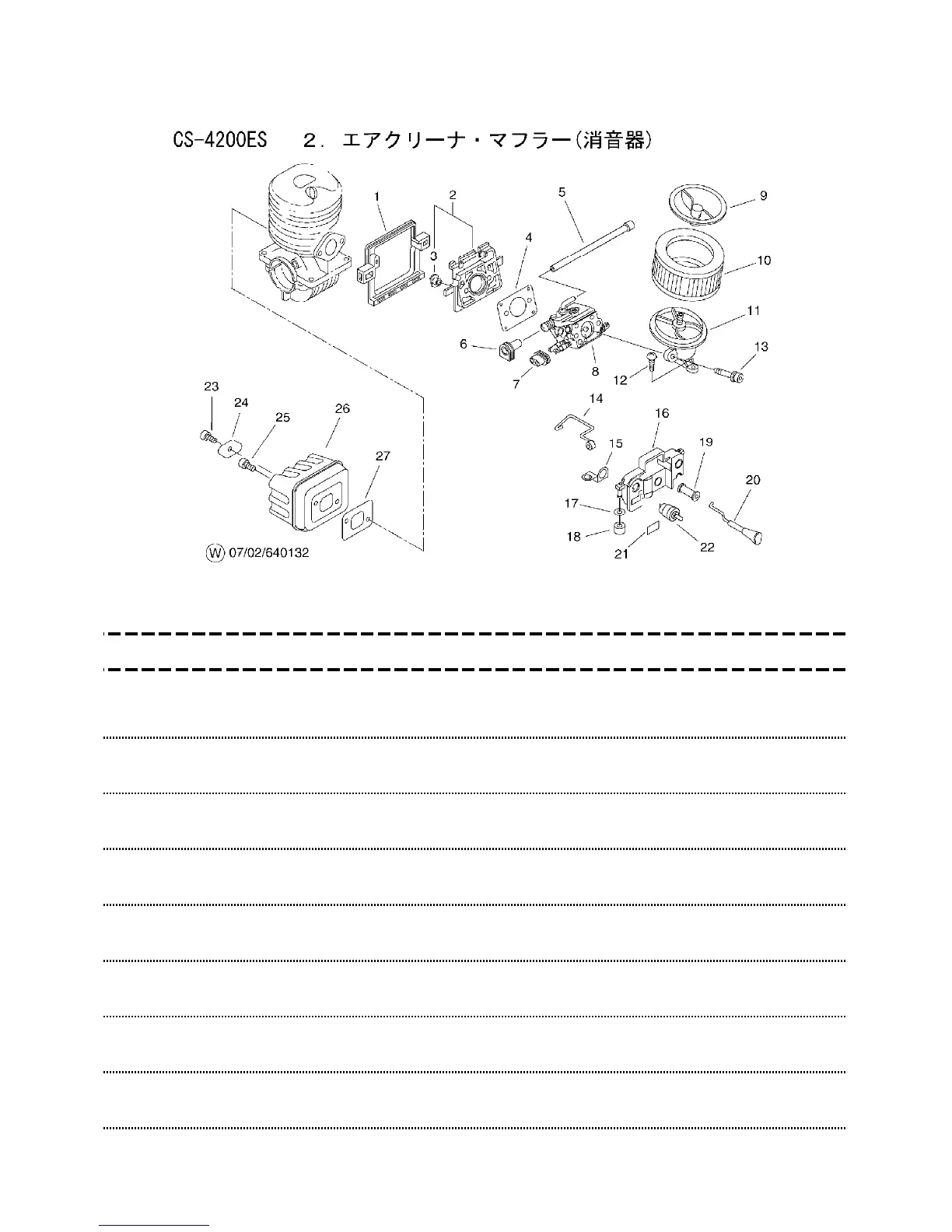

2. エアクリーナ・マフラ（消音器）
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 130366-39930 1 CUSHION
2 130007-39931 1
INSULATOR
3 + 130020-33330 2
NUT
4 130010-38330 1
GASKET, INTAKE
5 130110-54430 1
PIPE, IMPULSE
3*6*105 NBR
6 129023-39930 1
GROMMET, IDLE
7 129010-33330 1
GROMMET
8 A021-000080 1
CARBURETOR,DIAPHRAGM
WT-567
9 130405-38332 1
BRACKET, AIR CLEANER
10 130300-39730 1
CLEANER ASM., AIR
11 130301-39935 1
ADAPTER, INTAKE
ID #1230
12 900253-05016 1
SCREW
5*16
13 900162-05050 2
BOLT, H.S. 5*50
5*50 W,SW
14 C454-000012 1
ROD,THROTTLE
15 163413-59530 1
PLATE, CONTACT
16 163810-59535 1
BRACKET, SWITCH
17 900600-00005 2
WASHER 5
5
18 351134-39930 2
CUSHION
19 178810-14534 1
GROMMET
20 A241-000100 1
KNOB, CHOKE
21 890157-11130 1
LABEL, SWITCH
22 163400-35430 1
SWITCH, IGNITION
23 900105-04006 1
BOLT, H.S. 4*6
4*6
24 145711-60631 1
STAY, MUFFLER
25 900105-05014 2
BOLT, H.S. 5*14
5*14
26 145610-39930 1
MUFFLER
