Echo CS-4200ES Parts Catalog

CS-4200ES

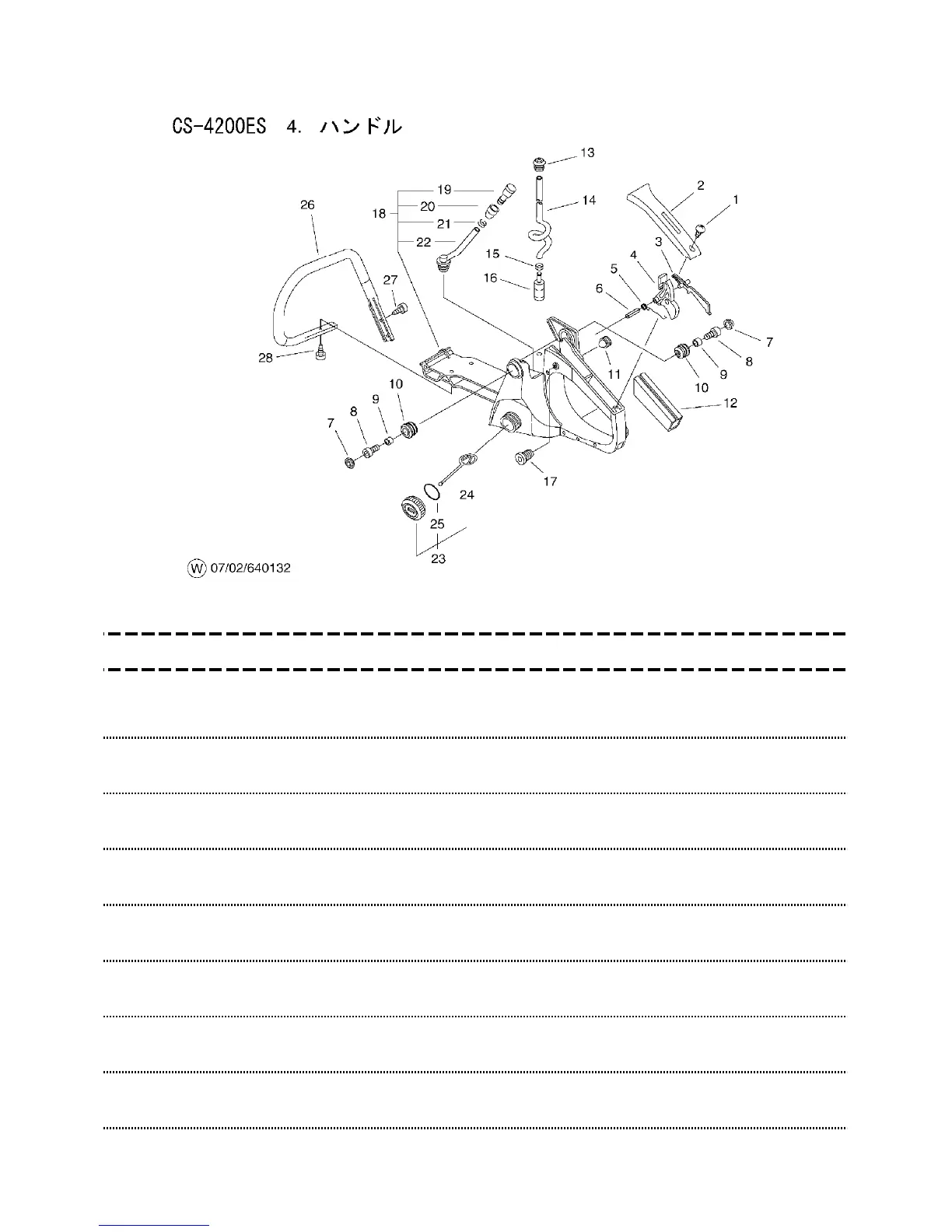

4. ハンドル
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1
NOTE2
1 900253-04014 1 SCREW 4*14 4*14
2 351155-35430 1
COVER, HANDLE (BL)
3 178090-37930 1
LOCKOUT, T. CONTROL
4 C450-000000 1
TRIGGER,THROTTLE
5 178043-35430 1
SPRING, THR.RETURN
6 900345-40030 1
PIN, SPRING 4*30SUS
4*30SUS
7 100918-19830 2
CAP, CUSHION
8 900105-04020 2
BOLT, H.S. 4*20
4*20
9 100915-15131 2
SUPPORTER, CUSHION
10 100910-19730 2
CUSHION
11 100252-39930 2
CUSHION
12 351111-19830 1
GRIP, HANDLE
13 132115-04920 1
GROMMET
14 132010-00760 1
PIPE, FUEL
3*5*250L
15 132013-09820 1
CLIP
6MM
16 131205-19830 1
STRAINER, FUEL
17 V162-000040 1
PLUG
18 351103-39934 1
HANDLE, REAR
19 + 131300-56430 1
VALVE, CHECK
20 + 131328-40630 1
COVER, VENT
21 + 132013-26630 1
CLIP
6.5MM
22 + 132012-39930 1
PIPE, W/GROMMET
L65 NBR
23 131004-37932 1
CAP ASY, FUEL
24 + A365-000050 1
CONNECTOR,CAP
25 + 900720-00022 1
O-RING 22
P-22
26 C400-000190 1
HANDLE,FRONT
- 7 -
