Echo CS-4400 Service Data

SERVICE INFORMATION
CS-4400
CS-5100
7
5K177 5K083 5K084 5K081
5K082 5K016 5K025
5K174 5K181 5K097
5K178
5K173
0
5
10
1
2
3
4
5
6
7
8
9
10
11
5K097

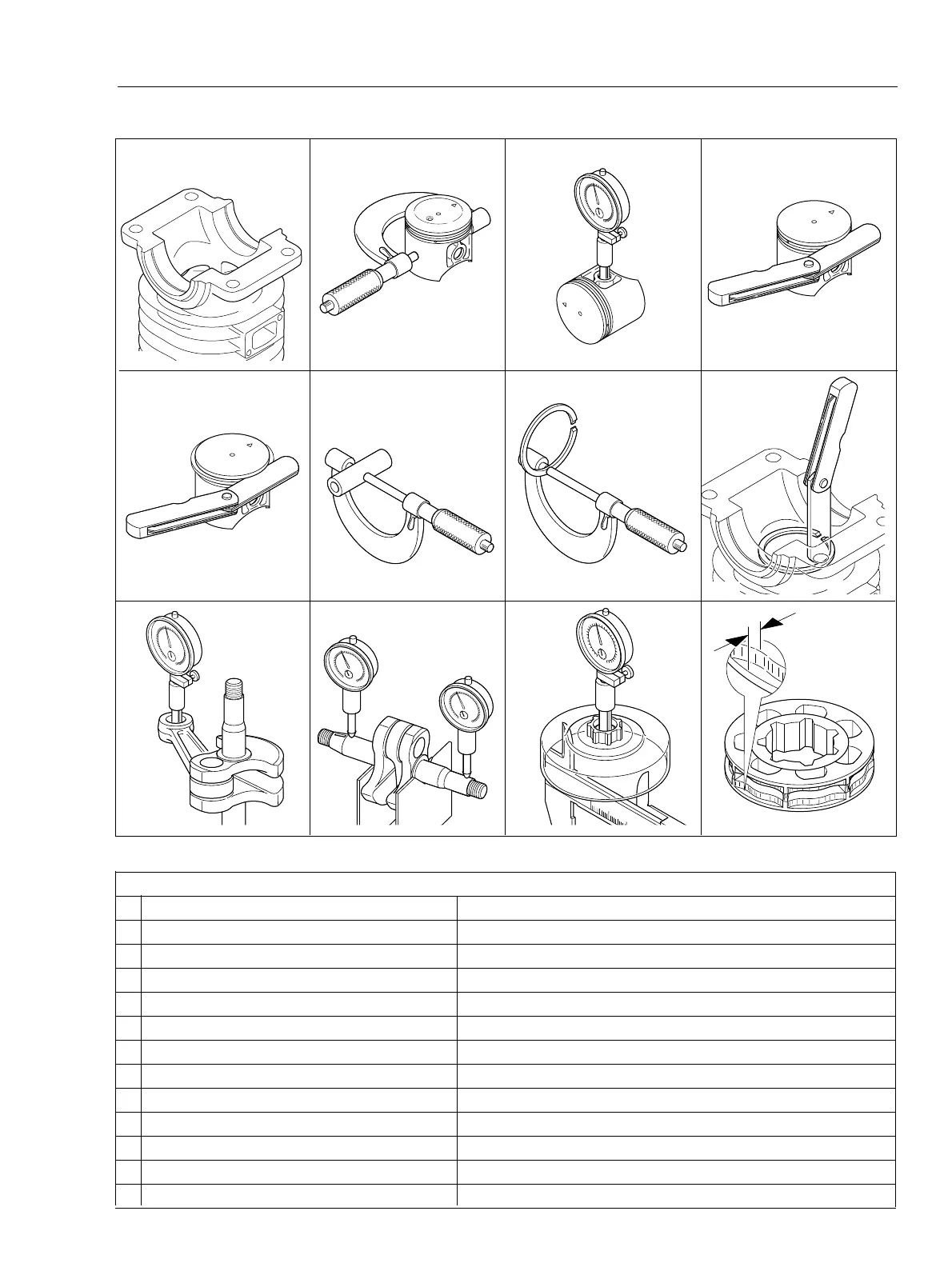

1-5 Service Limits (CS-5100)
mm (in)
A Cylinder bore When plating is worn and aluminium can be seen
B Piston outer diameter Min. 44.89 (1.767)
C Piston pin bore Max. 11.025 (0.4341)
D Piston ring groove Max. 1.3 (0.051)
E Piston ring side clearance Max. 0.1 (0.004)
F Piston pin outer diameter Min. 10.980 (0.4323)
G Piston ring width Min. 1.15 (0.045)
H Piston ring end gap Max. 0.5 (0.02)
K Con-rod small end bore Max. 15.025 (0.5915)
L Crankshaft runout Max. 0.05 (0.002)
M Sprocket bore Max. 15.07 (0.5933)
N Clutch drum bore Max. 71.5 (2.81)
P Sprocket wear limit Max. 0.5 (0.02)
ABCD
FGH
KLMP
N
E
