CS-4920 ASSEMBLY
X7503352100 23
© 09/2022 ECHO Incorporated

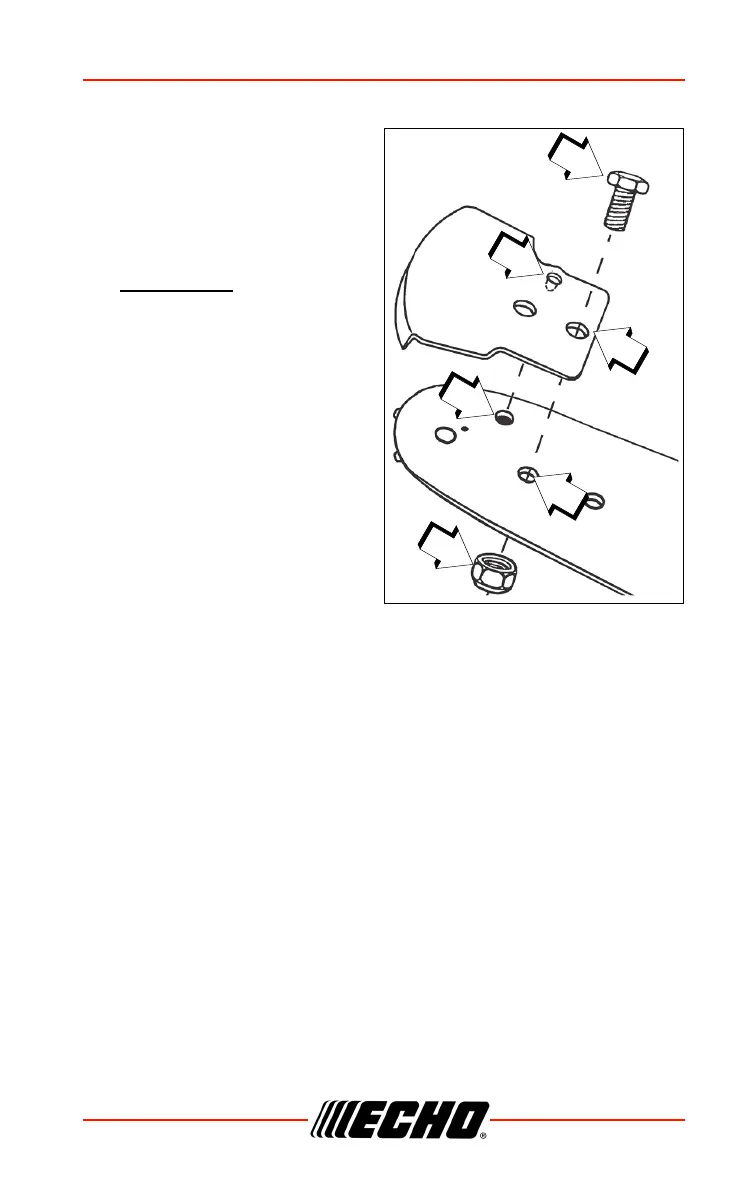

Instructions to Install Optional Kick Guard
TM
to Bar
Tools Needed: Two 11 mm (7/16 in.)
Wrenches.
1. Install bolt (A) in rear hole (B) of
optional Kick Guard
TM
and
through front hole (C) in guide
bar.
2. IMPORTANT: Dimple (D) in
optional Kick Guard
TM
must
engage recess (E) in guide bar.
3. Securely tighten nut (F) and
bolt (A).
A
B
C
D
E
F
