11
CAUTION: Avoid potential personal injuries and
property damage!
•
Studs must be at least 2x4 in. / 25 ga.
•
If back side of wall is unfinished, drywall must be
installed to a minimum of one stud left and right of the
stud(s) being used to install the mount.
•
Drywall must be a minimum of 1/2 in. (13 mm) thick on
each side of the studs, and a minimum clearance of 1 ⅞ in.
(48 mm) behind the wall is required.
•
Stud type and structural strength must conform to
the North American Specification for the Design of Cold-
Formed Steel Structural Members [362 S 125 18, C-Shape,
S - Stud Section].
•
Drywall must be secured to studs with screws 12 in.
(304.8 mm) on center.
•
Minimum horizontal space between fasteners:
16 in. (41 cm).
Min.
8 in. (20 cm)
Min.
8 in. (20 cm)
Min.
16 in. (41 cm )
Max. 5/8 in. (16 mm)
Min. 1/2 in. (13 mm)
CAUTION: Avoid potential personal injuries
and property damage!
•
Drywall covering the wall must not exceed
5/8 in. (16 mm).
•
Minimum horizontal space between fasteners:
16 in. (41 cm).
•
Minimum wood stud size:
nominal 2 x 4 in. (51 x 102 mm)
actual 1 ½ x 3 ½ in. (38 x 89 mm).
CAUTION: Avoid potential personal injuries
and property damage!
•
Mount wall plate directly onto the concrete surface
(no surface covering).
•
Minimum horizontal space between fasteners:
16 in. (41 cm).
Min. Stud Spacing:
16 in. (41 cm )
Min. Stud
Spacing:
16 in. (41 cm )
Min. Stud Width:
nominal 2 in. (51 mm)
actual 1 ½ in. (38 mm)
Min. Stud Width:
nominal 2 in. (51 mm)
Min. Stud Depth:
nominal 4 in. (102 mm)
actual 3 ½ in. (89 mm)
Min. Stud Depth:
nominal 4 in. (102 mm)

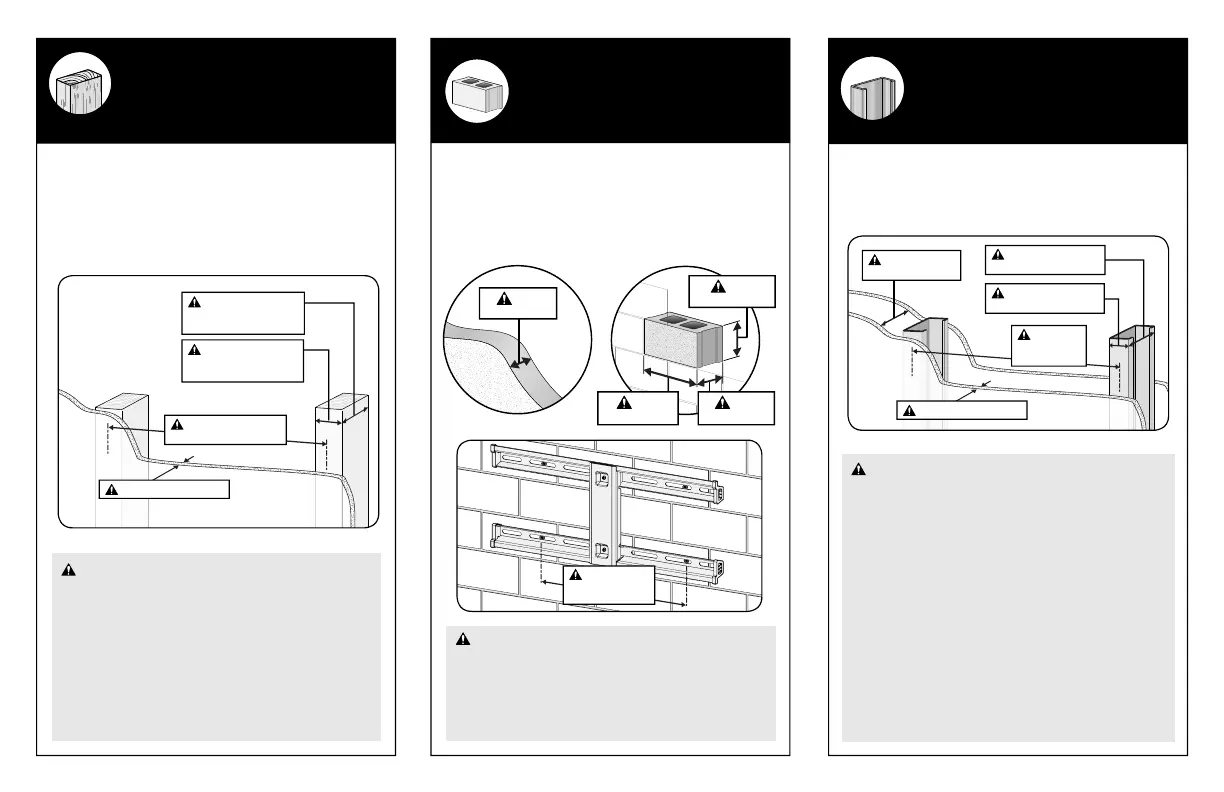

For WOOD STUD
INSTALLATIONS
For CONCRETE
INSTALLATIONS
For STEEL STUD
INSTALLATIONS
follow STEP 2.2 A
on PAGE 12
follow STEP 2.2 B
on PAGE 14
follow STEP 2.2 C
on PAGE 16
BLOCK WALLSOLID WALL
Min. Clearance:
1 ⅞ in. (48 cm )
Min.
8 in. (20 cm)
Min. fastener
Spacing:
16 in. (41 cm )
To Next Page
