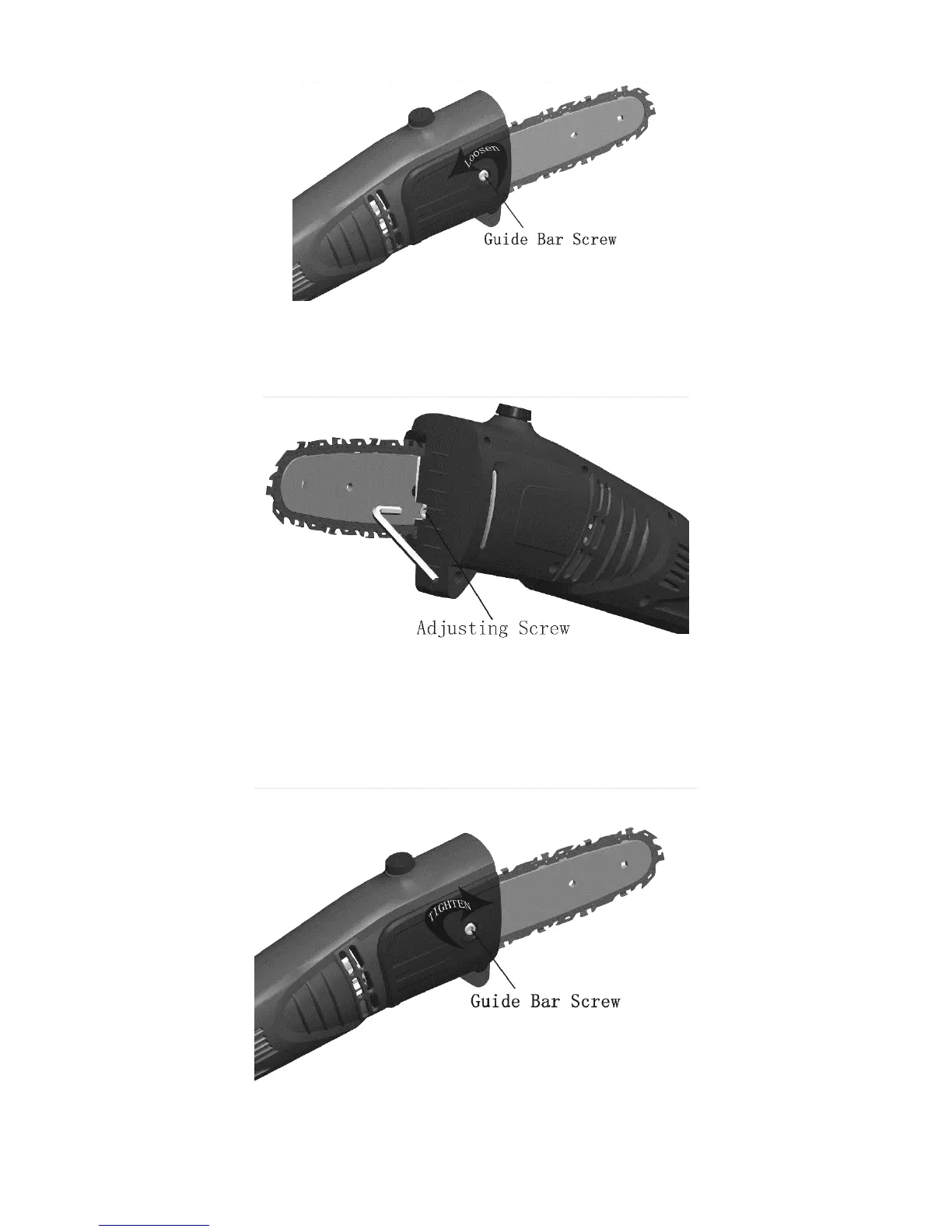

Figure 4
2. Turn adjusting screw on front of power head clockwise until slack is out of chain.
( See Figure 5)
Figure 5
3. Wearing protective gloves, pull down on chain to check chain tension.
4. Do not over-tension chain. Over-tensioning will cause excessive wear and will
reduce the life of the guide bar and chain.
5. After chain tension is correct, tighten guide bar screw firmly.(See Figure 6)
Figure 6
