Eckman HT001 - Page 11

10
Fig. 12
Warning!
DO NOT operate the trimmers before the blade cover is installed. Risk of injury!

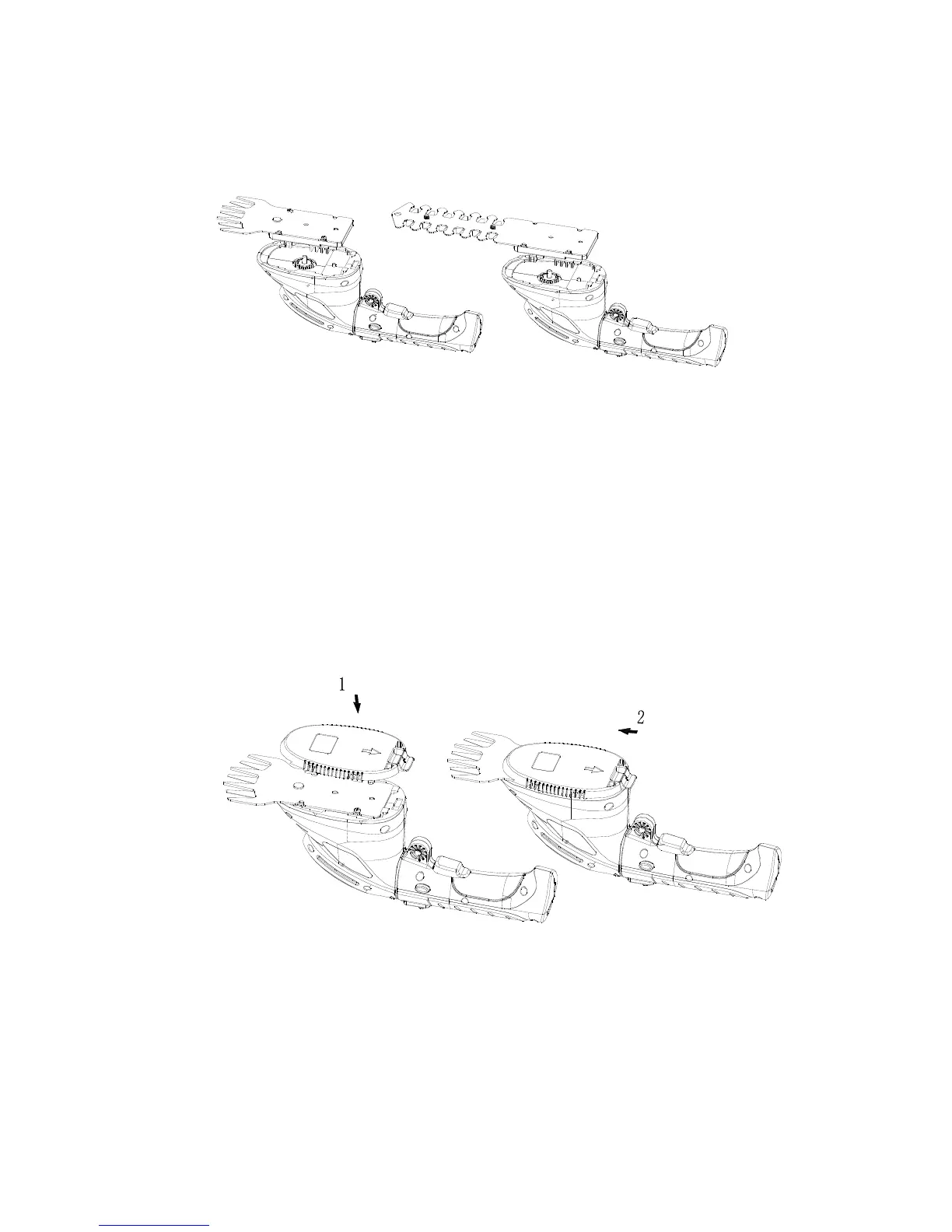

3， Install the blade cover following the steps as shown.
(see Fig. 13)
① Insert the blade cover align the two lines marked in the upper figure.
② Push the blade cover forwards until the retainer fit tightly and securely.
Fig. 13
