Fig. 3
Cutting with telescopic handle:
The telescopic handle is fully height adjustable and can be adapted to suit your height..
Fig. 4
Warning: Do not turn on the switch when you adjust the telescopic handle. This can cause a
serious injury.

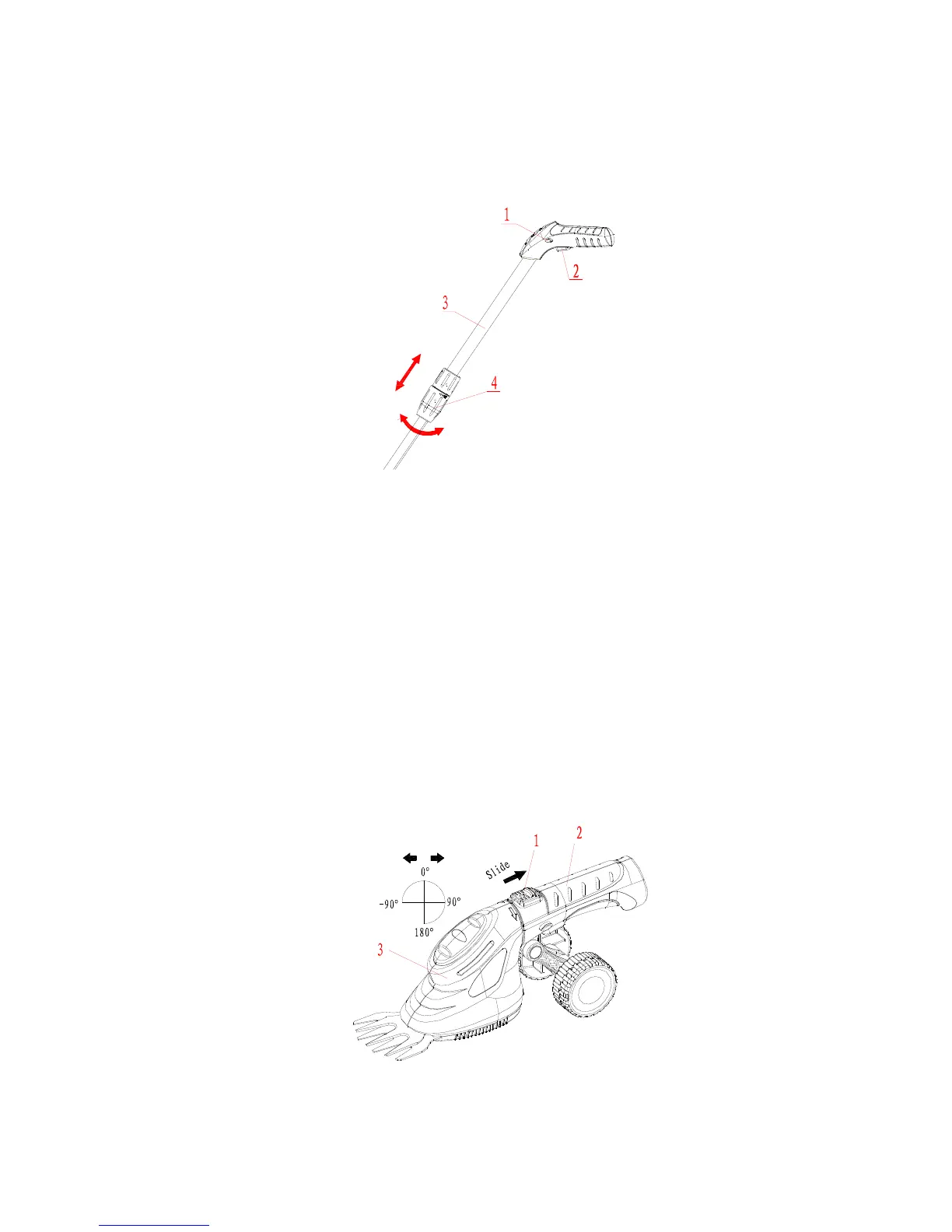

(see Fig. 4)
1. Attach the telescopic handle.
2. Hold the tube (3) with one hand, and then loosen the adjusting bolt (4).
3. Set the handle to the correct length and tighten the adjusting bolt (4).
4. Push lock-off button (1) forward and press switch (2).
5. Release the lock-off button (1) again.
Function of swivel head(see Fig. 5)
Hold the handle 2 tightly。Slide the lock button(1)up and then turn the cutter head 3 to the desired
position.Release the lock button (1)again and check whether the cutter head is locked in place.
Note:The cutter head can be locked in five positions(-90°、0°、90°、180°)。
