ECLAIR ACL - Units Connections for Sync Sound

UNITS CONNECTIONS
Equipment
• Camera with crystal controlled
motor
• Recorder with crystal controlled
motor
Possibilities
Sync. without connection cable
No clapper
Equipment
• Camera with crystal controlled
motor
• Recorder with crystal controlled
motor
Possibilities
Sync. with connection cable
Clapper

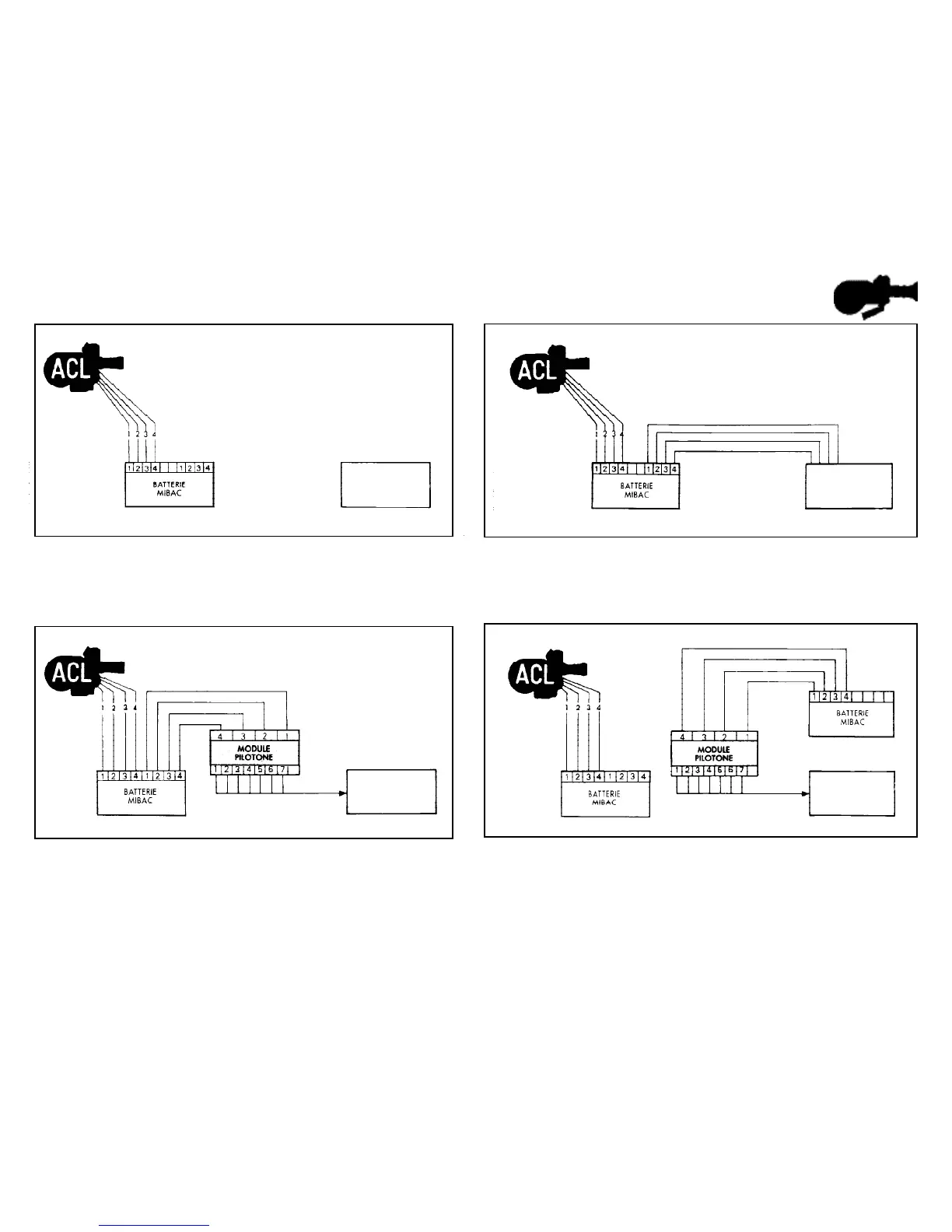

Schema KL Schema LM
Schema MN
Schema NO
Equipment
• Camera with crystal controlled
motor
• Recorder with crystal controlled
motor
• Pilotone module fed by the
camea battery
Possibilities
Sync. with connection cable
Clapper
(shunt 3 and 4 by the Jaeger plug)
Possibilities
Sync. without connection cable
No clapper
Equipment
• Camera with crystal controlled
motor
• Recorder without crystal controlled motor
• Pilotone module fed by an external power
supply: MIBAC 12 volts battery whenever
possible
15
