The mechanical back focal distances
(fig N) being different according to the profes-
sional equipment manufacturers 48 mm for
ECLAIR (Eclair CA), 52 mm for
Arriflex, 46 mm for Nikon, corresponding
intermediate Eclair TS mounts (Fig P-P’-P”-)
can be supplied for these different makes of
lenses for use with the ACL camera. For Arrif
lex, specify « normal mount » or « new steel
bayonet mount ».
Hence, the ACL lens support (1)
comprises an internal threading (21) the
diameter and the thread pitch or which corre-
spond to the C lenses standards and an
external threading (22) for the Eclair TS
mounts (Fig P-P’-P”); the orientation of the
lens is ensured by the slot (23) at tfie top of
the flange.
ACCESSORIES
The principal additional accessories of an
“ACL” equipment are :
• The 12 volts battery type VR 1,2
• The connection
cable camera/battery VR 1,2 .............
• The rapid charger ...............................
or
• 12 volts battery type VR 4 ..................
• The connection
cable Camera battery VR 4 ...............
• The compact charger .........................
• The connection
cable Charger/battery ........................
• The pilotone module ...........................
• The connection
cable Module/recorder
(according to the make of the recorder)
• The transport case ..............................
Code MIBAC
MIBLE
MIRAP
BAKEL
BABAC
CIBRE
COURE
MODUL
MALAC
23
21
1
22
Fig. O
Fig. P

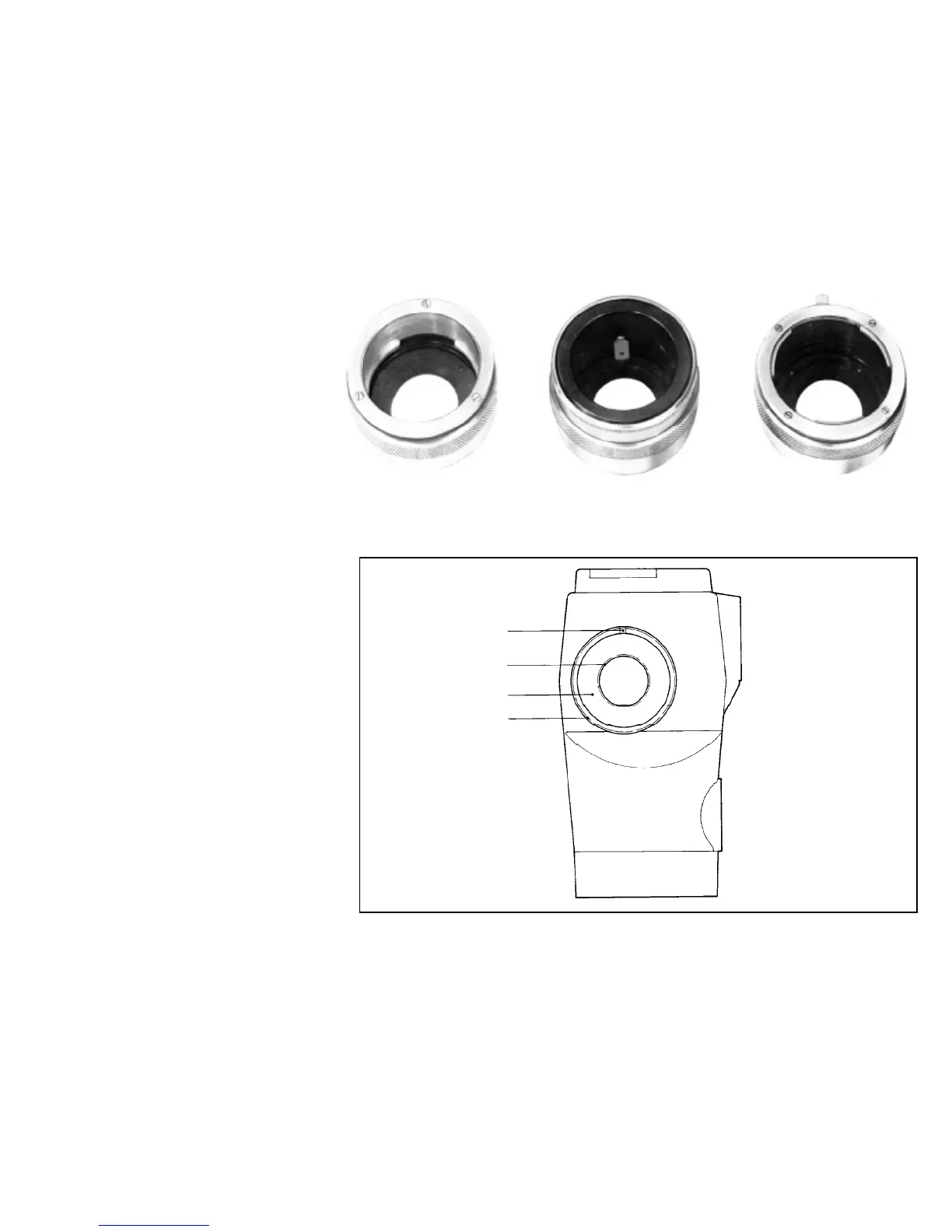

Intermediate mount
for lenses in CA mount
Fig. P’
Intermediate mount
for lenses in Arriflex mount
Fig. P’’
Intermediate mount
for lenses in Nikon mount
