18
A
A
B
B

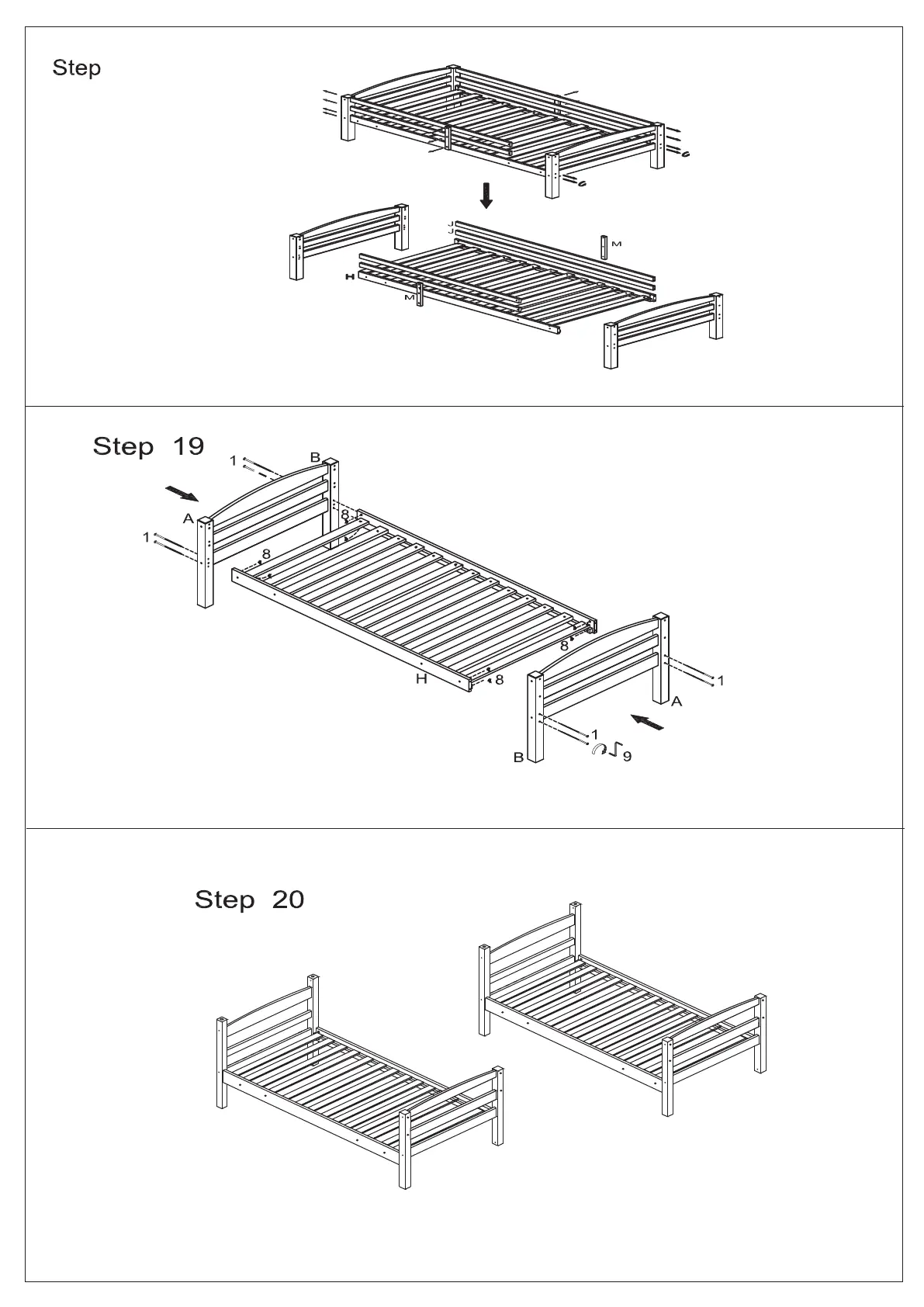

Loosen the appropriate hardware of the upper bunk so that the guardrails and leg assemblies are no longer
connected to the bed assembly.
I
K
K
8
8
Insert barrel nuts (8) into either end of crossbeams (H,I). Attach legs (A,B) and legs (A,B) to crossbeams (H,I)
using joint connectors (1). Joint connectors (1) will screw through the bottom set of holes on each leg and into
barrel nuts (8).
I
Option B
Final Assembly
