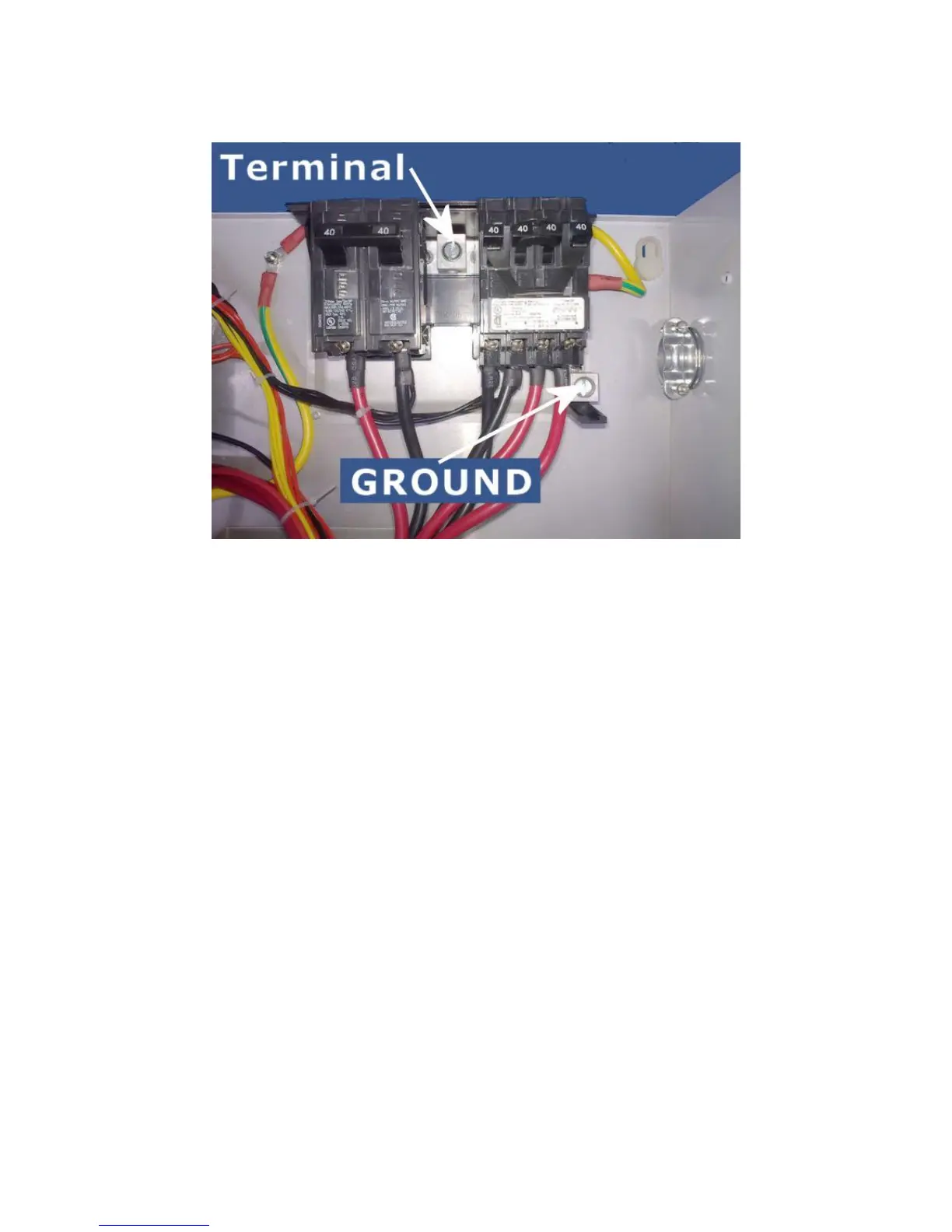

Figure 3 : Interior of the water heater (Models from 21 to 27 kW)
Make sure the wires are secured firmly into place in the terminal block. A loose wire could cause a short.
STEP 4
Connect the ground wire to the terminal marked GROUND.
DO NOT TOUCH ANY OTHER COMPONENTS IN THE HEATER.
STEP 5
DOUBLE CHECK the electrical connections to make sure they are correct and that all wire connections are tight and
secure. Also confirm that the correct breaker size and wire gauge has been used and confirm that the unit has been
connected to a ground in accordance with applicable codes.
STEP 6
Confirm that the plumber has purged air from the water lines prior to turning on power to the water heater. Refer to
STEP 3 in the Plumbing Installation section.
The water heater is now installed and ready to use! Follow the General Operating Instructions below to complete the
set-up. We highly recommend that this be done in conjunction with the homeowner.
Econobec tankless water heater – Installation instructions and homeowner manual 8
