Chapter 2
26
B85H3-M USER MANUAL

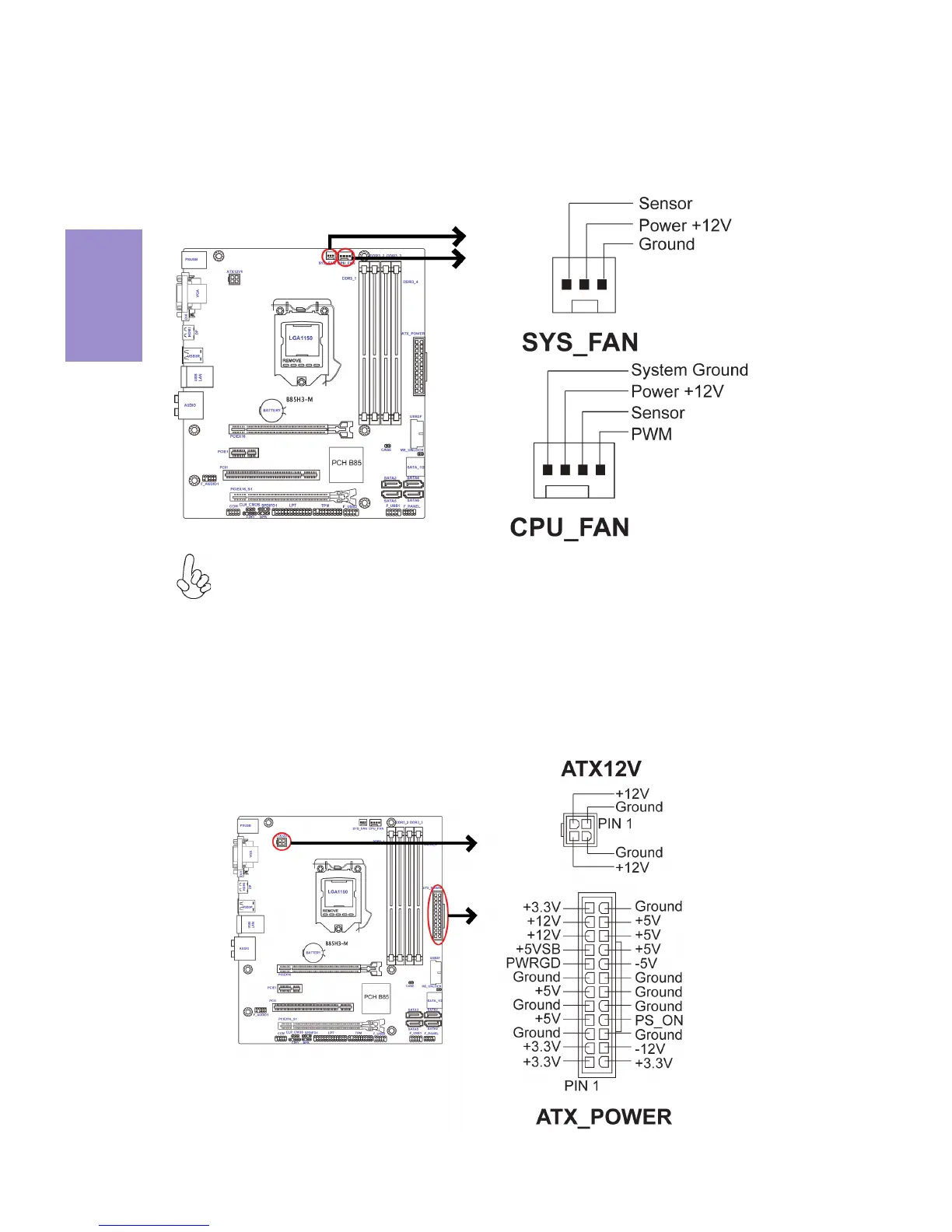

1. SYS_FAN(System Cooling FAN Power Connector) & 2. CPU_FAN (CPU cooling
FAN Power Connector)
Connect the CPU cooling fan cable to CPU_FAN.
Users please note that the fan connector supports the CPU cooling fan of 1.1A
~ 2.2A (26.4W max) at +12V.
Connect the system cooling fan connector to SYS_FAN.
3. ATX_POWER (ATX 24-pin Power Connector) & 6. ATX12V (ATX 12V Power
Connector)
Connect the standard power supply connector to ATX_POWER.
Connect the auxiliary case power supply connector to ATX12V.
To Next Page
