C
HAPTER
3
| Installing the Switch
Connecting to the Console Port
– 46 –
CONNECTING TO THE CONSOLE PORT
This port is used to connect a console device to the switch through a straight-
through UTP cable and an RJ-45-to-DB-9 serial converter. The console device
can be a PC or workstation running a VT-100 terminal emulator, or a VT-100
terminal. An RJ-45-to-DB-9 converter is supplied with the unit for connecting to
a RS-232 serial DB-9 DTE port, as illustrated below. The pin assignments used in
the RJ-45-to-DB-9 converter are described below.

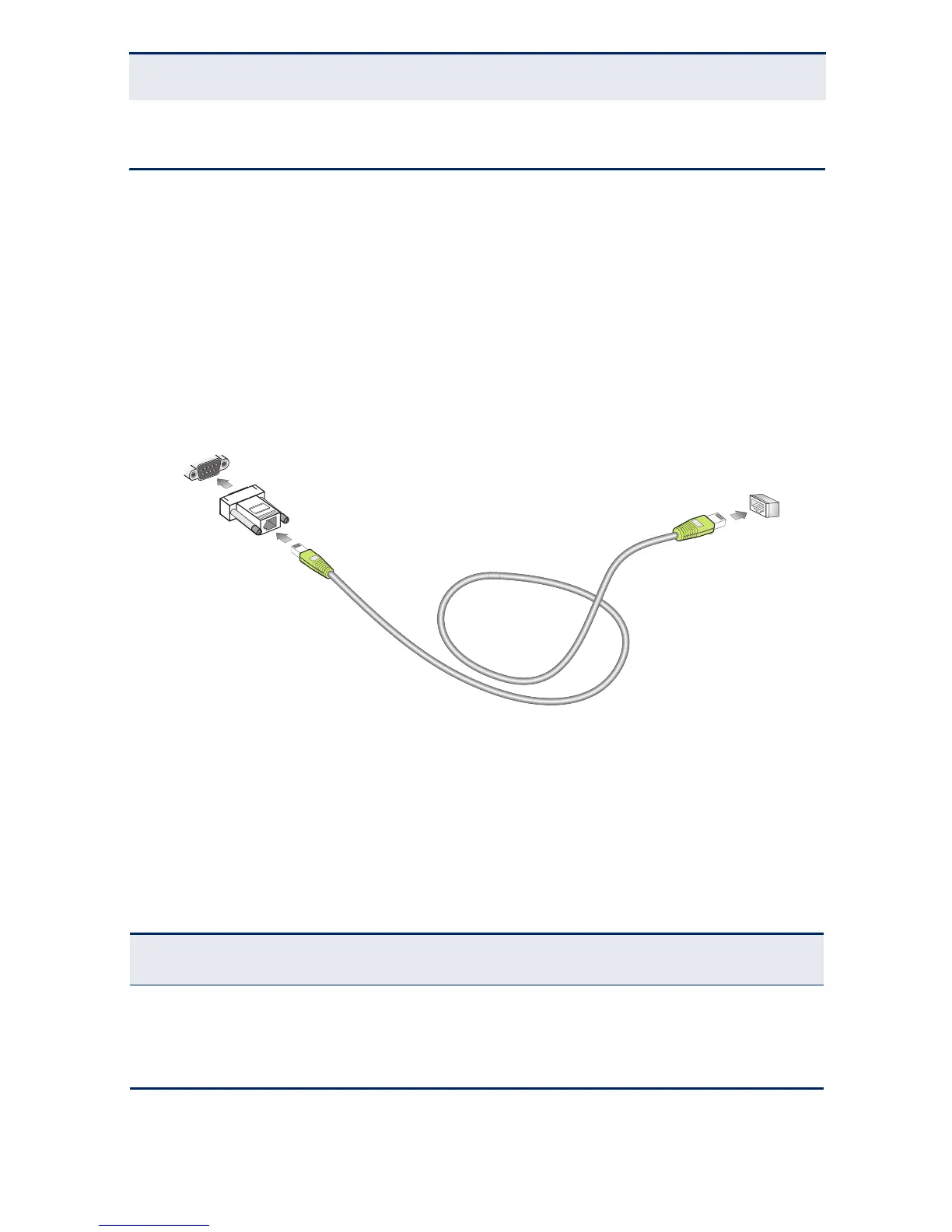

Figure 16: Console Port Connection
WIRING MAP FOR SERIAL CONVERTER
The following table describes the pin connections for the RJ-45-to-DB-9 serial
converter. The converter should be used with straight-through UTP or STP
Ethernet cable.
Table 4: Serial Converter Wiring
8-PIN RJ-45 Port
(Switch Console Port)
Null Modem 9-PIN DB-9 Port
(PC’s DTE Com Port)
6 TXD (transmit data) ------------------------> 2 RXD (receive data)
3 RXD (receive data) <----------------------- 3 TXD (transmit data)
4 SGND (signal ground) -------------------------- 5 SGND (signal ground)
