ENGLISH
USER MANUAL

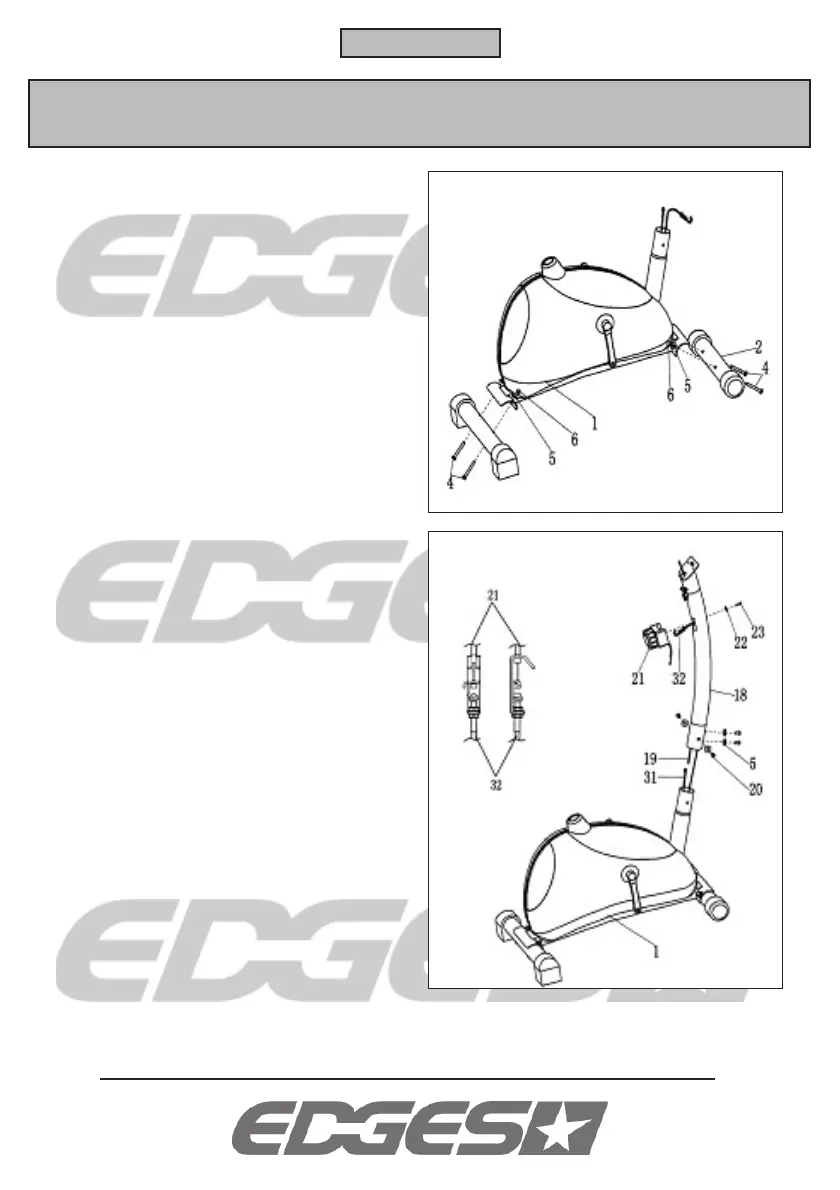

Assembly instructions
Screw the front foot (2) and the rear foot (3)
securely to the frame (1) using the bolts (4),
curved washers (5) and nuts (6).
Connect the sensor cables (19, 31).
Connect the tension cable (32) to the tension
control knob (21).
Push the handlebar post (18) into place in the
tube on the frame (1), and secure it using bolts (5)
and curved washers (20).
Attach the tension control knob to the handlebar
post using the bolt (23) and washer (22).
