GRASS BAGGER — ABK42006
ASSEMBLY AND INSTALLATION ON THE ZERO TURN MOWER

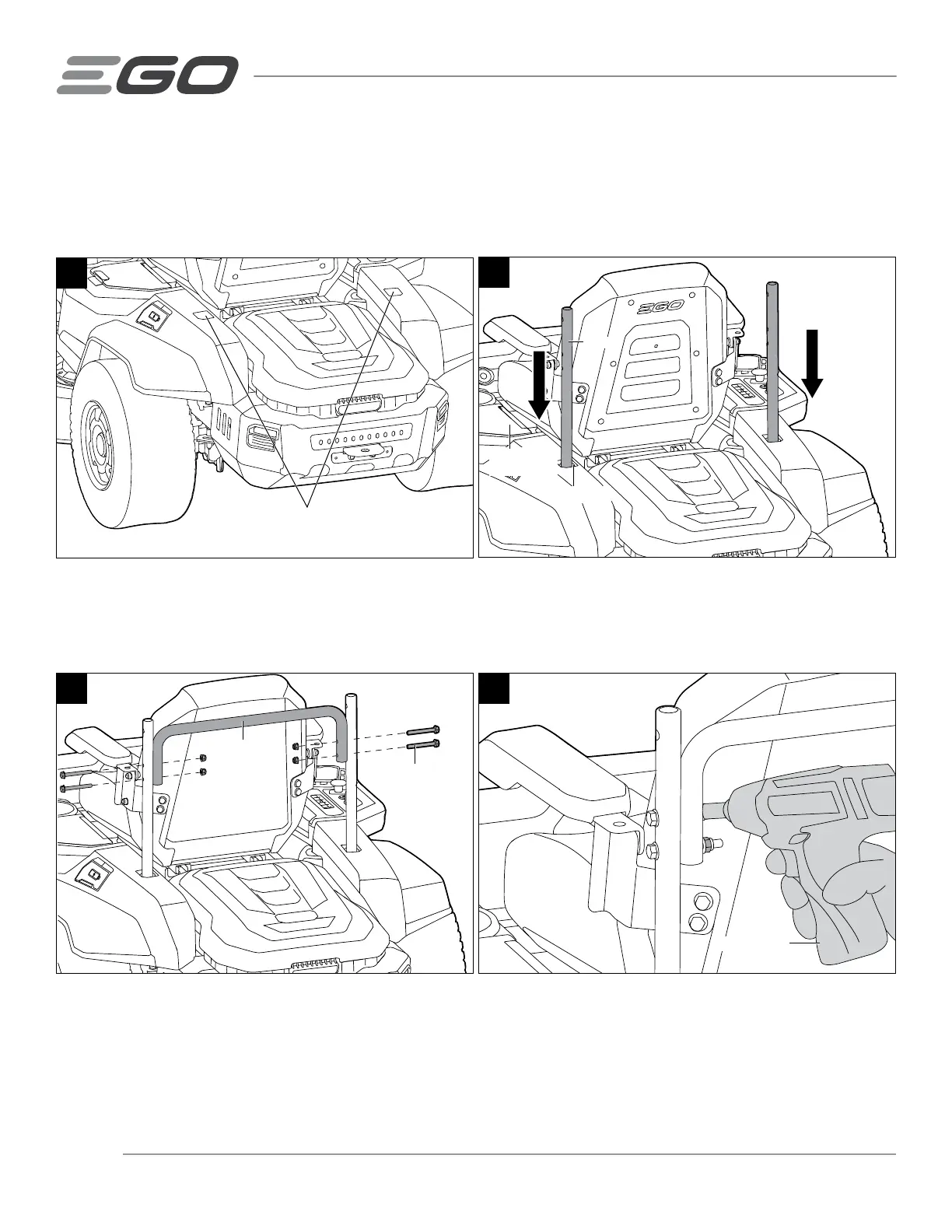

1. Remove the two attachment mounting covers from the mower to expose two mounting holes (Fig. 1). Place the
attachment mounting covers in the storage compartment of your mower.
2. Insert the posts into the mounting holes of the mower as shown (Fig. 2).
3. Hold the crossbar between the posts to align the two mounting holes on both ends of the crossbar with the two
lower mounting holes of each post. Pre-install four hexagon head bolts on both sides and nger-tighten the bolts
and nuts (Fig. 3).
4. Securely tighten all four bolts on both sides by an impact wrench with a 1/2’’ (13mm) socket (not included) (Fig. 4).
2
Mounting Hole
Storage
Compartment
Post
1
Attachment Mounting Covers
4
Impact Wrench
3
Socket Head Screw
Crossbar
