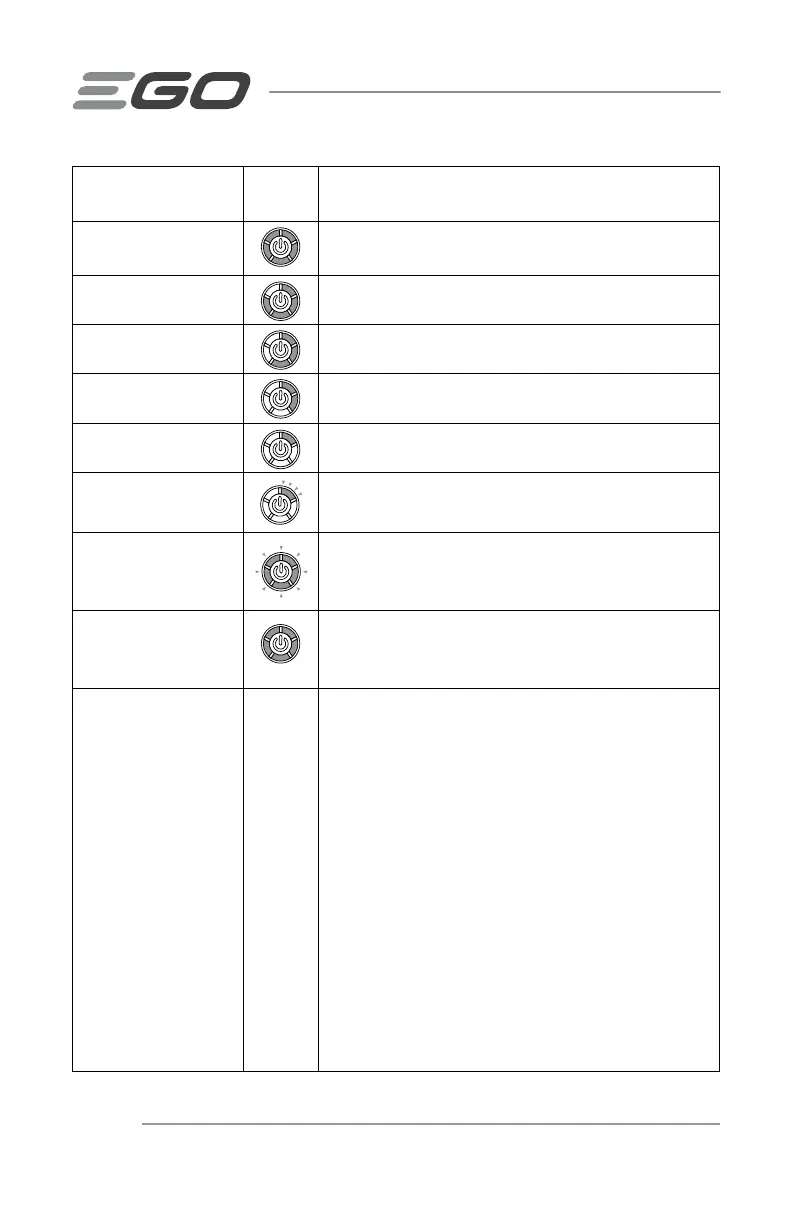

56V BATTERY 2.5AH/4AH/5AH/6AH/7.5AH/10AH/12AH12
Battery charge level/
Working condition
5-LED
indicator
5-LED Fuel Gauge Display
Charge level 80% to
100%
5-LED solid green
Charge level 60% to 80%
4-LED solid green
Charge level 40% to 60%
3-LED solid green
Charge level 20% to 40%
2-LED solid green
Charge level 10% to 20%
1-LED solid green
Charge level less than
10%
1-LED flashing red
Low voltage
5-LED flashing red
The battery pack is nearly depleted and needs to be charged
immediately.
Over temperature
5-LED solid red
Cool the battery pack until the temperature drops below 152°F
(67°C).
Self maintenance -
Battery Self Maintenance can be visually identified by different
LED color and flash sequences that may be observed on the
battery fuel gauge, which is dependent on the battery as well as
battery manufacturing date. Possible sequences are noted below.
For BA1400T/BA1400T-FC/BA2242T/BA2242T-FC/BA2800T/
BA2800T-FC/BA3360T/BA3360T-FC/BA4200T/BA4200T-FC/
BA5600T/BA5600T-FC/BA6720T/BA6720T-FC:
Sequence 1:
• 5 LEDs will shine solid red for 10 seconds,
• 5 LEDs will turn off for 10 seconds,
• 5 LEDs will turn solid red for 10 seconds.
Sequence will repeat until Self Maintenance process is complete.
Sequence 2:
• 5 LEDs will flash green every two seconds.
Sequence will repeat until Self Maintenance process is complete.
For BA2240T/BA2240T-FC
-No special indicator
