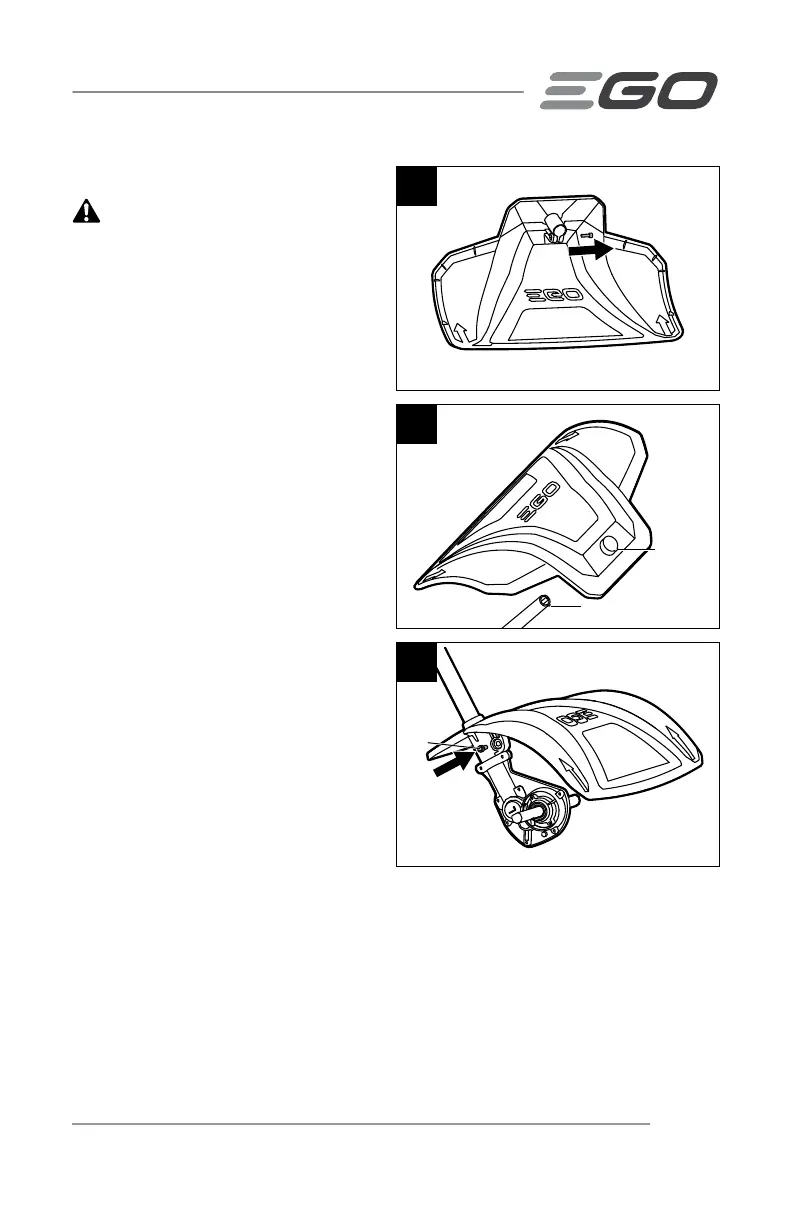

BRISTLE BRUSH ATTACHMENT — BBA2100/BBA2100-FC 15
MOUNTING THE GUARD
WARNING:
Install the guard before
the bristle brush attachment is connected
to the power head.
1. Loosen and remove the bolt from
the guard with the supplied Allen
key (Fig. 2).
2. Lift the bristle brush attachment
shaft and remove the end cap from
the shaft.
3. With the slot in the guard aligned
with the rib on the end of the shaft,
pass the guard through the shaft
until the screw holes in the guard
and in the shaft are aligned
(Fig. 3 & 4).
4. Use the supplied Allen key to tighten
the bolt clockwise to lock the guard
securely.
2
4
Bolt
3
Rib
Slot
