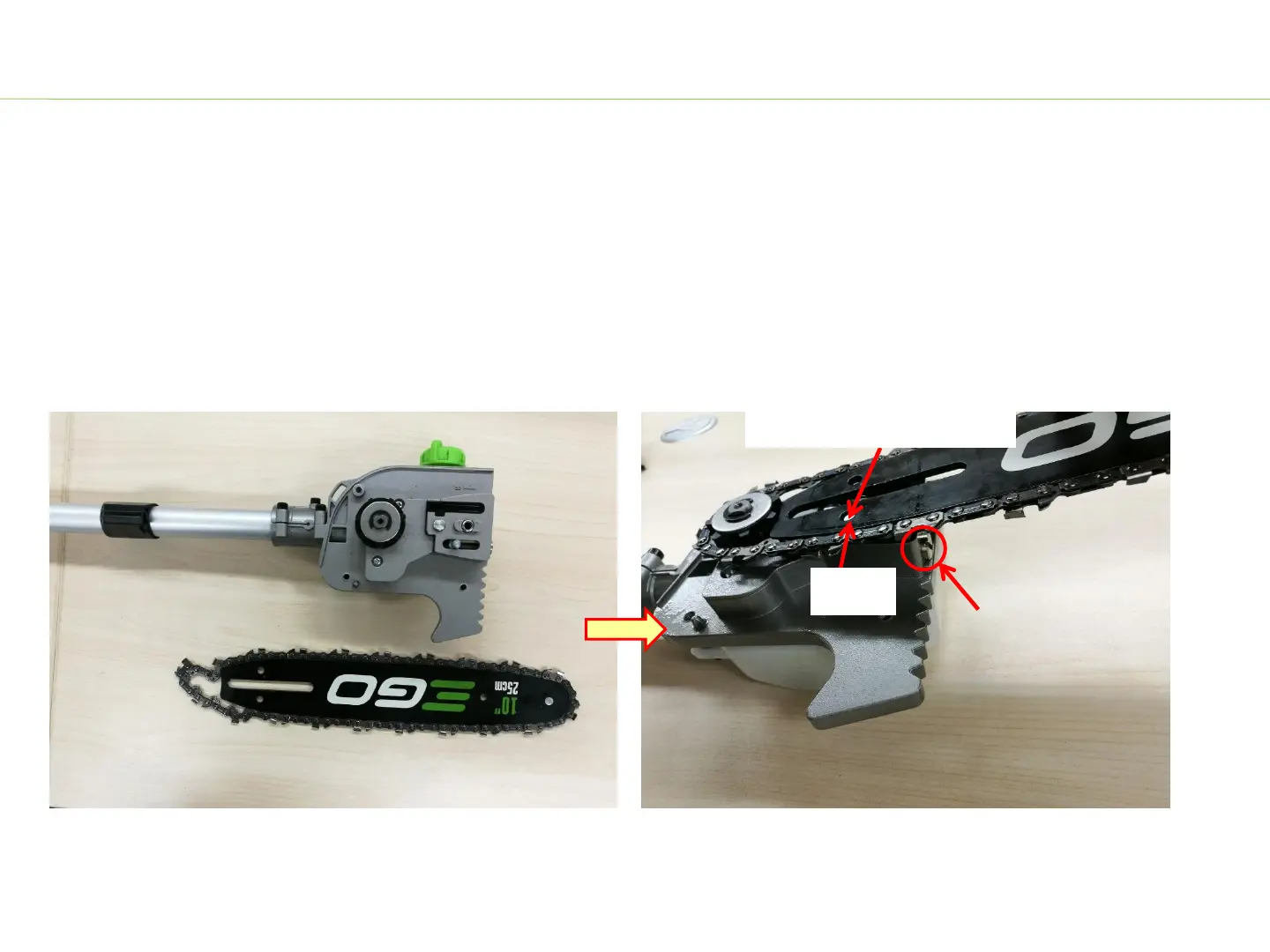

20. Align the tension-adjusting pin with the hole on the bar to assemble the chain and bar
assembly with the gear case assembly.
NOTICE: If there is any difficulty in inserting the tension-adjusting pin into the hole, adjust the
chain-tensioning screw properly until the tension-adjusting pin is exactly located into the hole.
24
Replace the Chain and Pinion Assembly
Chain-tensioning screw
Tension-adjusting pin
Hole
