4

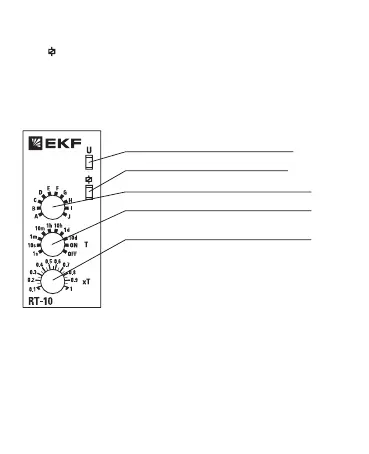

Control panel
Indication
Green "U" LED: constantly lit when the relay is powered.
Red " " LED: ashes red during timer countdown.
The relay is on, contacts 15-18 (25-28) are closed - constantly lit.
The relay is off, contacts 15-18 (25-28) are open - does not light up.
Attention! In order to repeat the cycle after power off, wait for at
least 200 ms before reconnecting the supply.
Power LED (green)
Output LED (red)
Time delay selection dial
Time increments selector dial (10 to 100% of T )
Scenario selector dial
