8
Setup:
• Install and secure the relay in the intended location.
• Connect the relay as per wiring diagram.
• Energize the relay, the "U" LED will light up green.
• Select the required scenario and time delay.

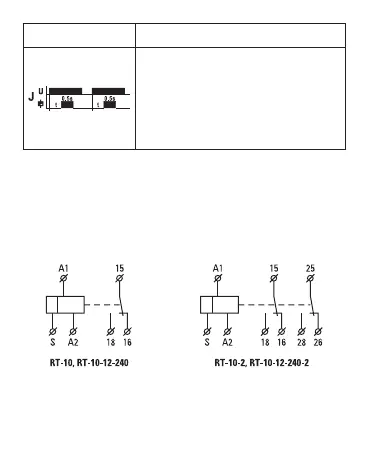

Wiring diagram
Function diagram Description
Delay On One-shot (0,5s).After the relay is
energized, a countdown (T) is started. During
the countdown, relay contacts 15-16 (25-
26) are closed and contacts 15-18 (25-28)
are open. Once the countdown is nished,
contacts 15-16 (25-26) open, and contacts
15-18 (25-28) close for 0,5 s and then open
again, remaining open for as long as the relay
is energized.
